Heated Seat Switch - Driver (C37) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

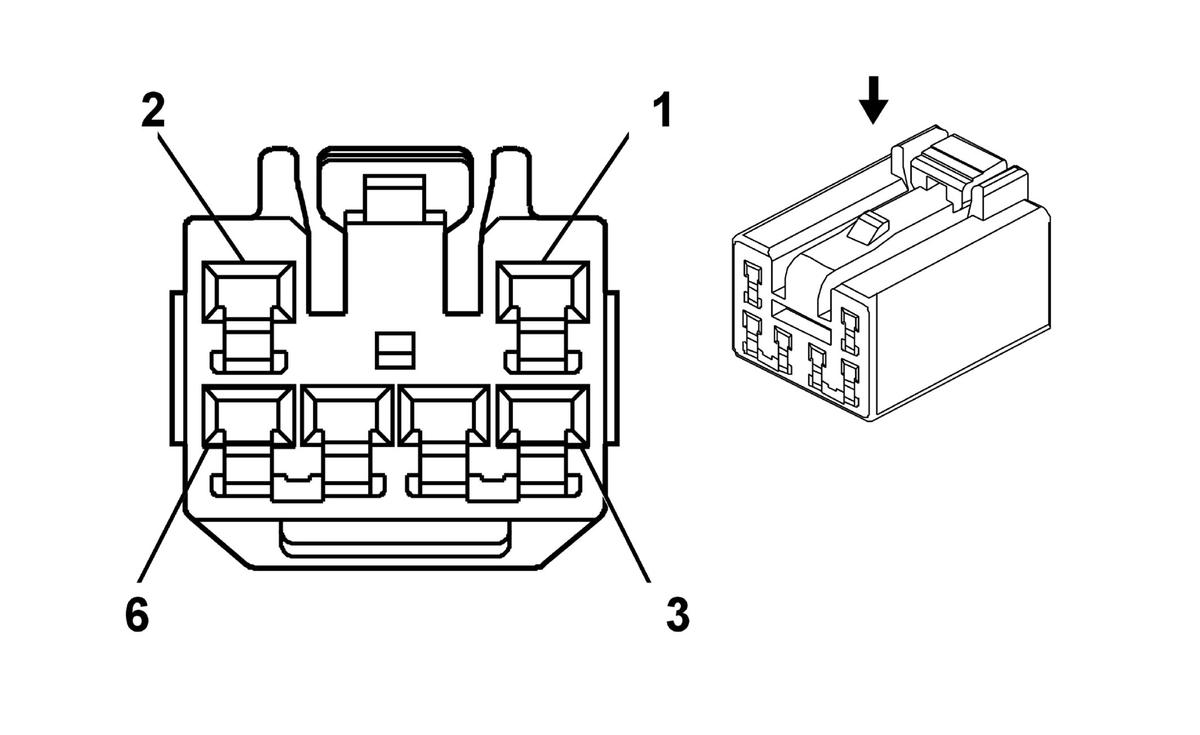

Fig 1: Heated Seat Switch - Driver (C37) Connector End View
GM1957538Courtesy of GENERAL MOTORS CORP.
Heated Seat Switch - Driver (C37)

Pin Wire Circuit Function
1 D-GN 230 Instrument Panel Lamps Dimming Control
2 BN 641 Ignition 3 Voltage
3 BN/WH 309 Right Park Lamp Supply Voltage
4 - - Not Used
5 GY/BK 1501 Driver Heated Seat High/Low Signal
6 BK 450 Ground
Connector Part Information
  • OEM: MG 651044
  • Service: N/A
  • Description: 6-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
