Headlamp Leveling Switch (TR6) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

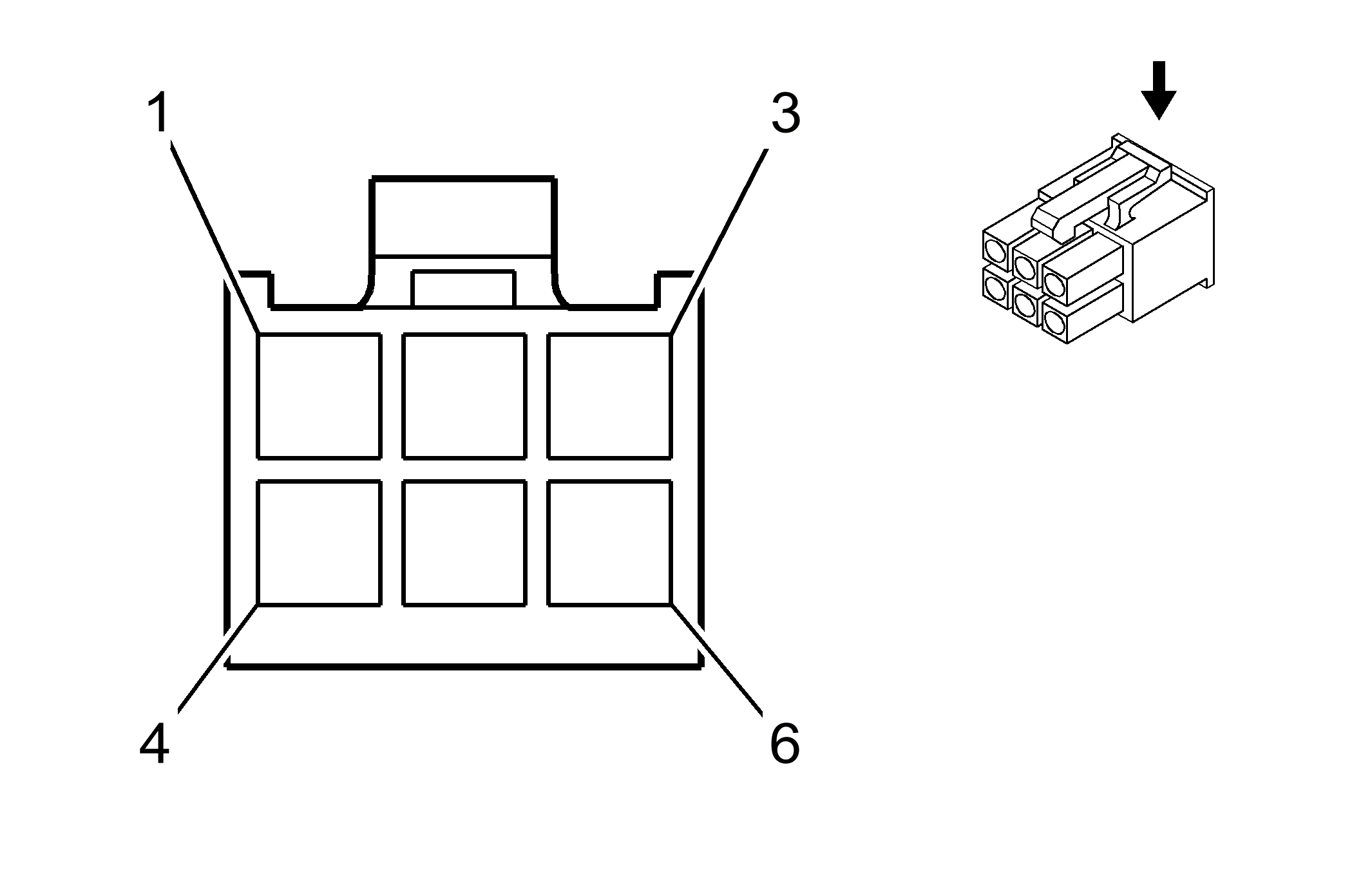

Fig 1: Headlamp Leveling Switch (TR6) Connector End View
GM1468511Courtesy of GENERAL MOTORS CORP.
Headlamp Leveling Switch (TR6)

Pin Wire Circuit Function
1 BN/WH 309 Right Park Lamp Supply Voltage
2 L-GN/BK 311 Left Headlamp Low Beam Supply Voltage
3 D-GN 189 Headlamp Leveling Motor Supply Voltage
4 D-GN 230 Instrument Panel Lamps Dimming Control
5 - - Not Used
6 BK 450 Ground
Connector Part Information
  • OEM: 5557-06R
  • Service: N/A
  • Description: 6-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Not Available
  • Release Tool: J-38125-560
  • Diagnostic Test Probe: J-35616-12 (BU)
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
