Headlamp Leveling Actuator - Left (TR6) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

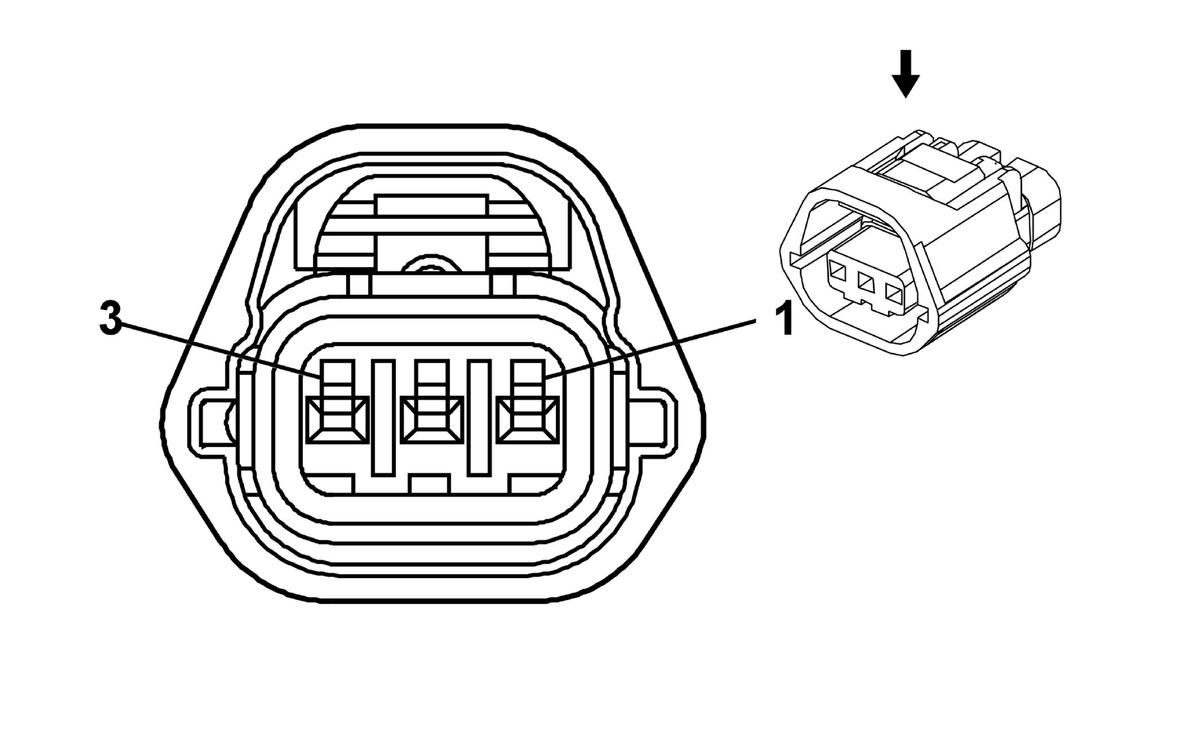

Fig 1: Headlamp Leveling Actuator - Left (TR6) Connector End View
GM1258004Courtesy of GENERAL MOTORS CORP.
Headlamp Leveling Actuator - Left (TR6)

Pin Wire Circuit Function
1 BK 50 Ground
2 D-GN 189 Headlamp Leveling Motor Feed
3 PU 709 Left Park Lamp Supply Voltage
Connector Part Information
  • OEM: MG 641234-5
  • Service: N/A
  • Description: 3-Way F Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03T-M064/14
  • Core/Insulation Crimp: P/P
