Headlamp - Left Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

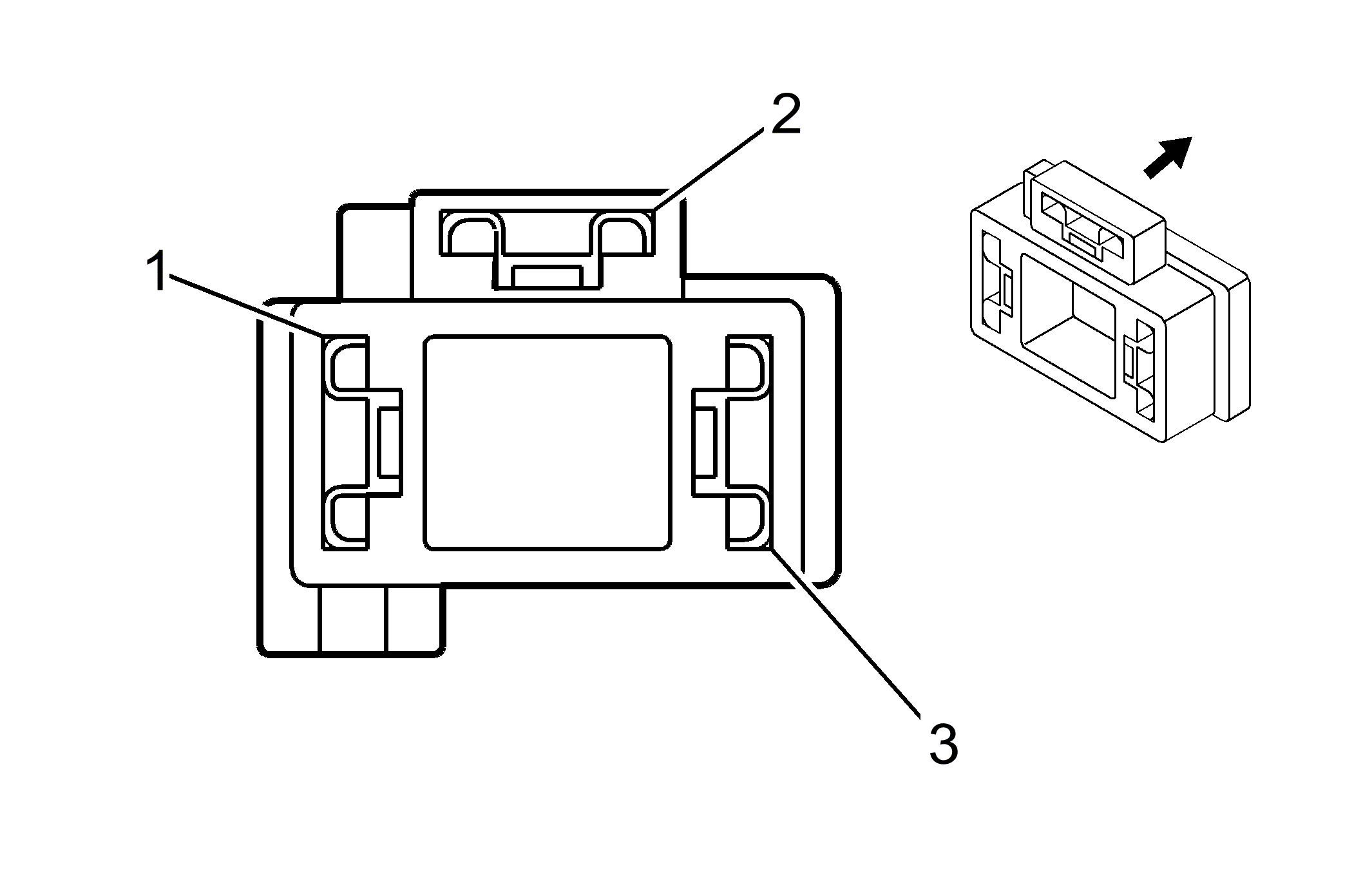

Fig 1: Headlamp - Left Connector End View
GM1481284Courtesy of GENERAL MOTORS CORP.
Headlamp - Left

Pin Wire Circuit Function
1 BN/WH 312 Left Headlamp High Beam Supply Voltage
2 L-GN/BK 311 Left Headlamp Low Beam Supply Voltage
3 BK 50 Ground
Connector Part Information
  • OEM: OPES-PH2
  • Service: N/A
  • Description: 3-Way F, (WH)
Terminal Part Information
  • Terminated Lead: 12124083
  • Release Tool: 12094430
  • Diagnostic Test Probe: KM-609-11
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
