Hazard Warning Switch Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

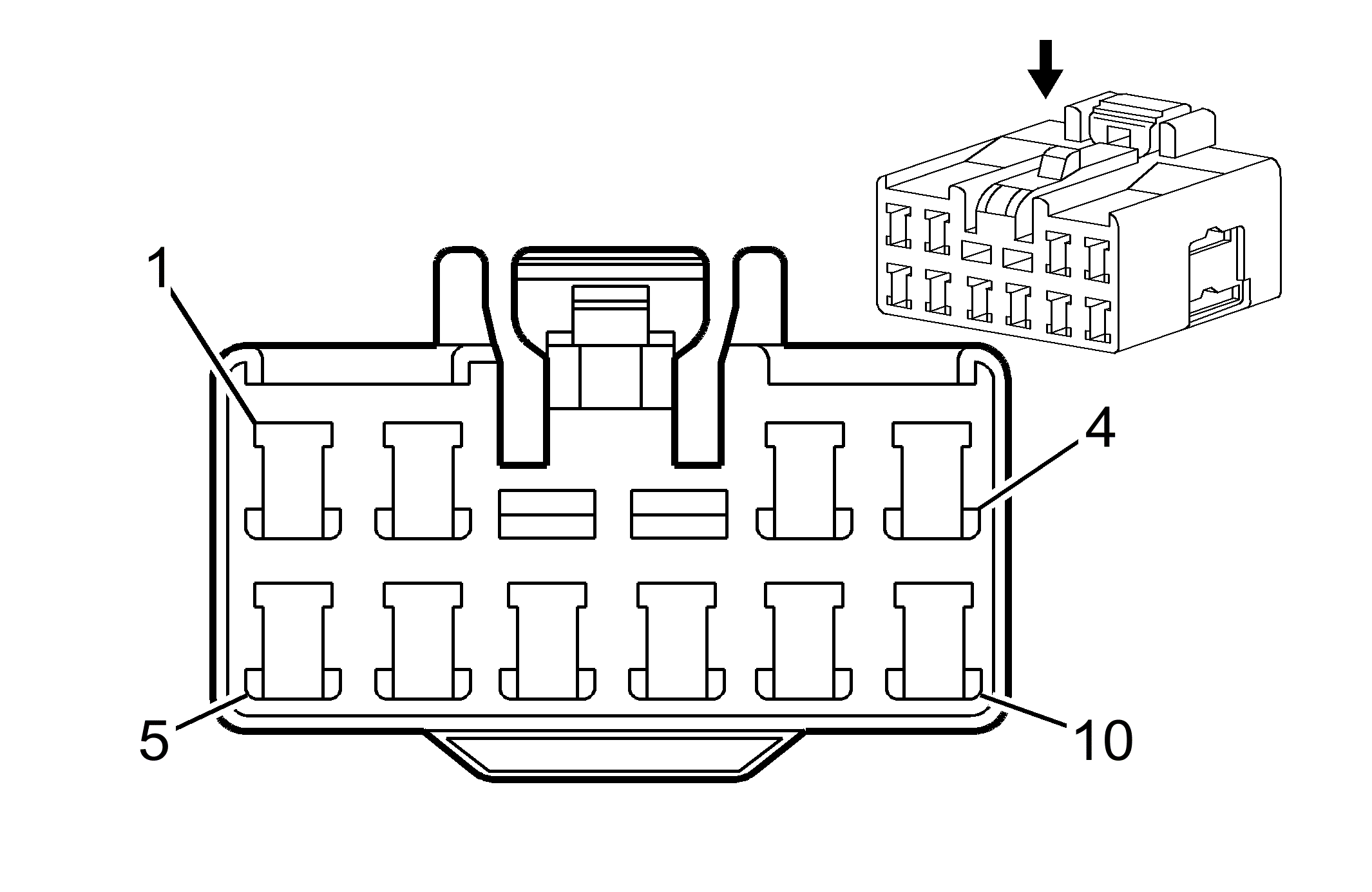

Fig 1: Hazard Warning Switch Connector End View
GM1835998Courtesy of GENERAL MOTORS CORP.
Hazard Warning Switch

Pin Wire Circuit Function
1 - - Not Used
2 D-GN 230 Instrument Panel Lamps Dimming Control
3 BN/WH 309 Right Park Lamp Supply Voltage
4 - - Not Used
5 L-BU 14 Left Turn Signal Lamps Supply Voltage
6 D-BU 15 Right Turn Signal Lamps Supply Voltage
7 L-BU 1508 Turn Signal Switch Signal
8 RD/WH 1440 Battery Positive Voltage
9 PU 16 Turn Signal Flasher Signal
PU 16 Turn Signal Flasher Signal
10 PK 339 Ignition 1 Voltage
Connector Part Information
  • OEM: MG 612234-5
  • Service: N/A
  • Description: 10-Way F, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
