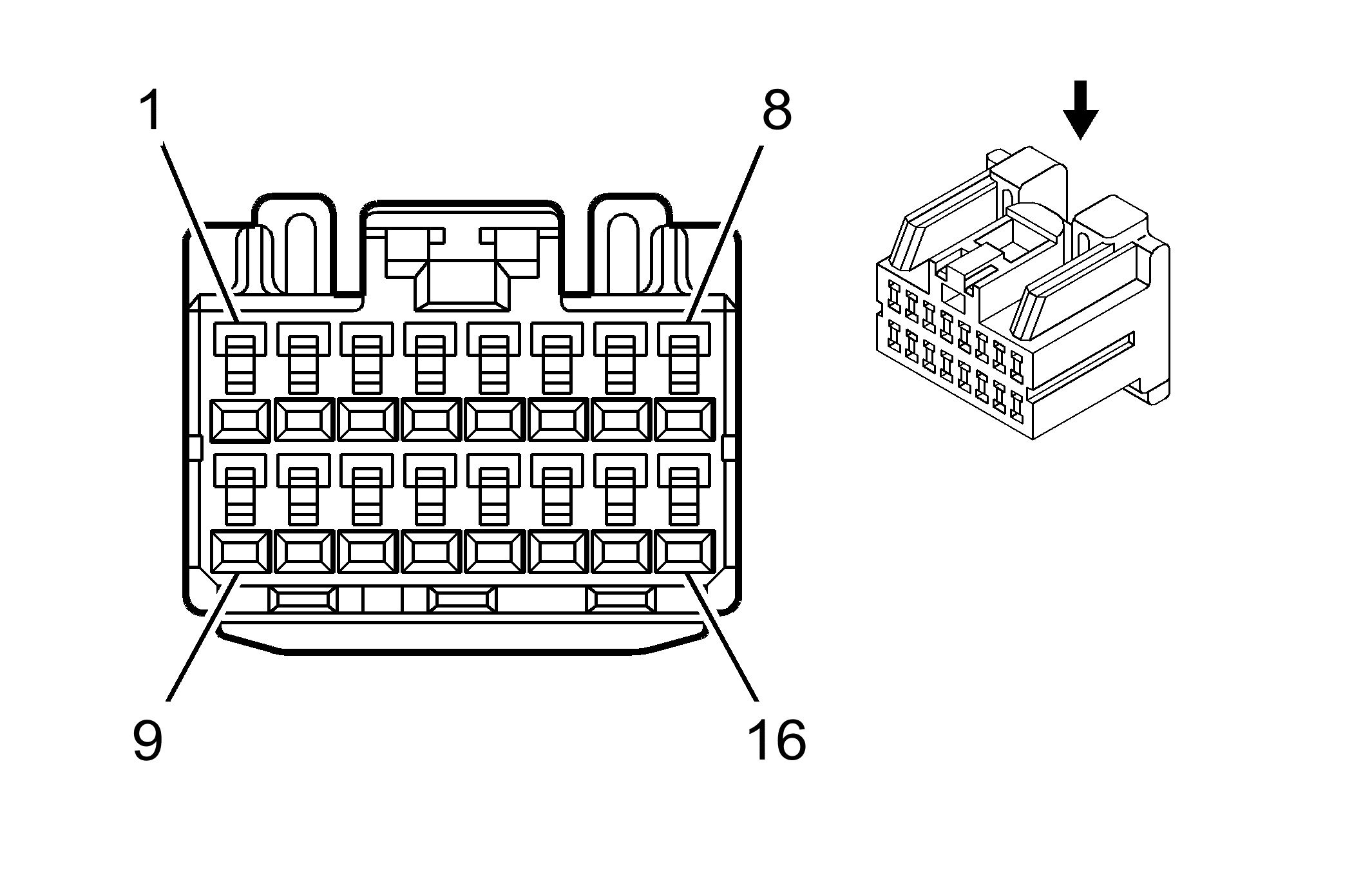

HVAC Control Module X2 (C68) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
HVAC Control Module X2 (C68)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | YE/WH | 239 | Ignition 1 Voltage |
| 3 | WH/RD | 540 | Battery Positive Voltage |
| 4 | D-GN/BK | 230 | Instrument Panel Lamps Dimming Control |
| 5 | D-GN/WH | 309 | Right Park Lamp Supply Voltage |
| 6 | BN/RD | 193 | Rear Defog Relay Control |
| 7 | - | - | Not Used |
| 8 | RD/D-BU | - | VACTR (+) |
| 9 | - | - | Not Used |
| 10 | D-BU/YE | - | Blower Motor Speed Control |
| 11 | D-BU/RD | - | Blower Feedback |
| 12 | RD/WH | - | Ignition Voltage |
| 13 | BK | - | Ground |
| 14-15 | - | - | Not Used |
| 16 | D-GN | - | Fan Switch ON |
