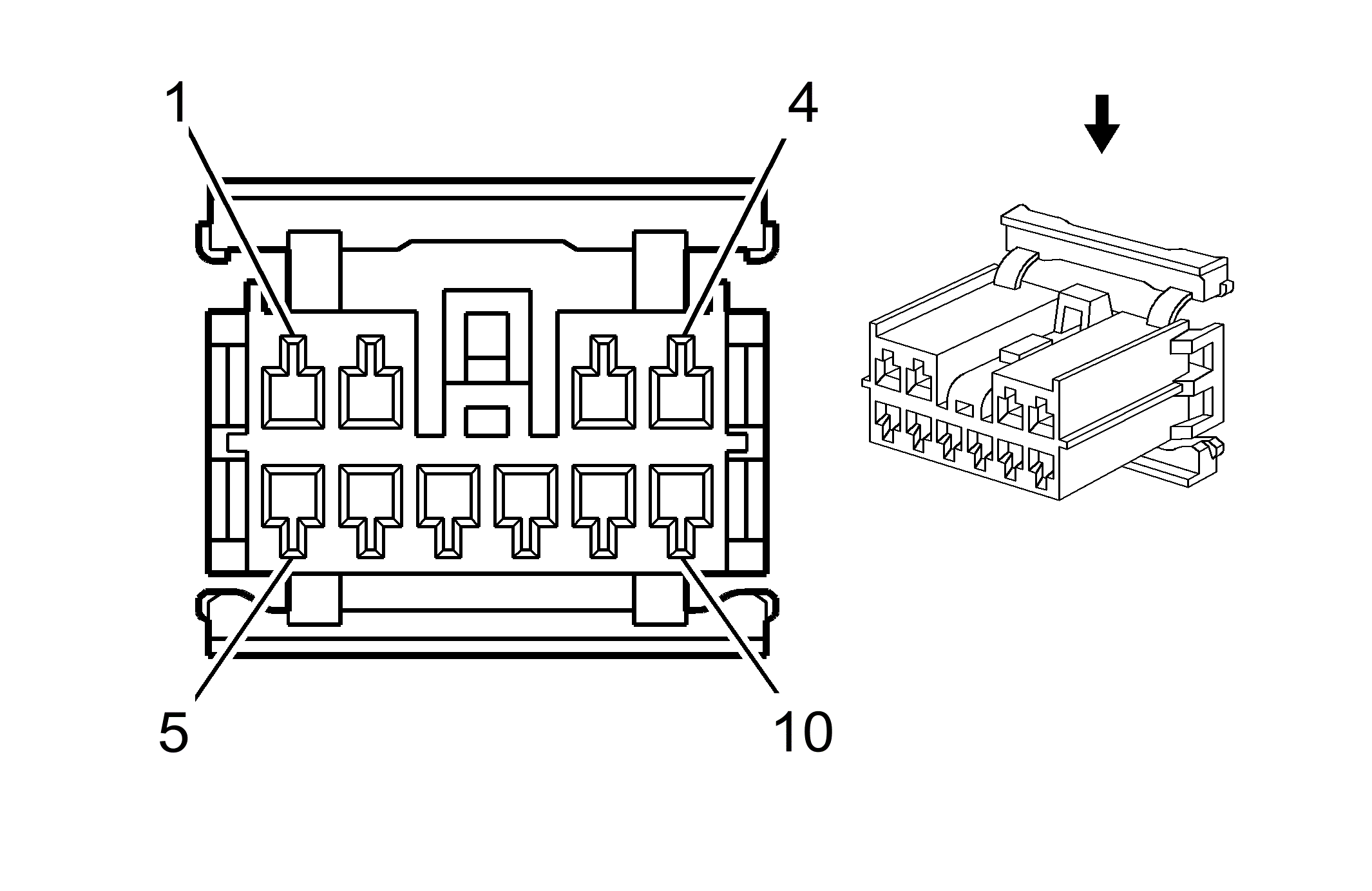

HVAC Control Module (without C68) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
HVAC Control Module (without C68)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | PK | 239 | Ignition 1 Voltage |
| 2 | BK | 650 | Ground |
| 3 | BN/WH | 309 | Right Park Lamp Supply Voltage |
| 4 | D-GN | 230 | Instrument Panel Lamps Dimming Control |
| 5 | OG | 362 | Upper Mode Valve Solenoid Control |
| 6 | D-GN/WH | 762 | A/C Request Signal (C60) |
| 7 | PK/WH | 1648 | Recirculation Door Control A (C60) |
| 8 | L-GN/BK | 1647 | Recirculation Door Control B (C60) |
| 9 | L-BU | 292 | Rear Defog Switch Signal (DWT) |
| WH | 193 | Rear Defog Relay Control (without Z5U) | |
| 10 | OG | 267 | Heated Mirror/Rear Defog Relay Coil Supply Voltage (Z5U) |
| RD/WH | 540 | Battery Positive Voltage (without Z5U) |
Connector Part Information
|
Terminal Part Information
|
