Fuel Tank Pressure (FTP) Sensor (Notchback with NQU) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

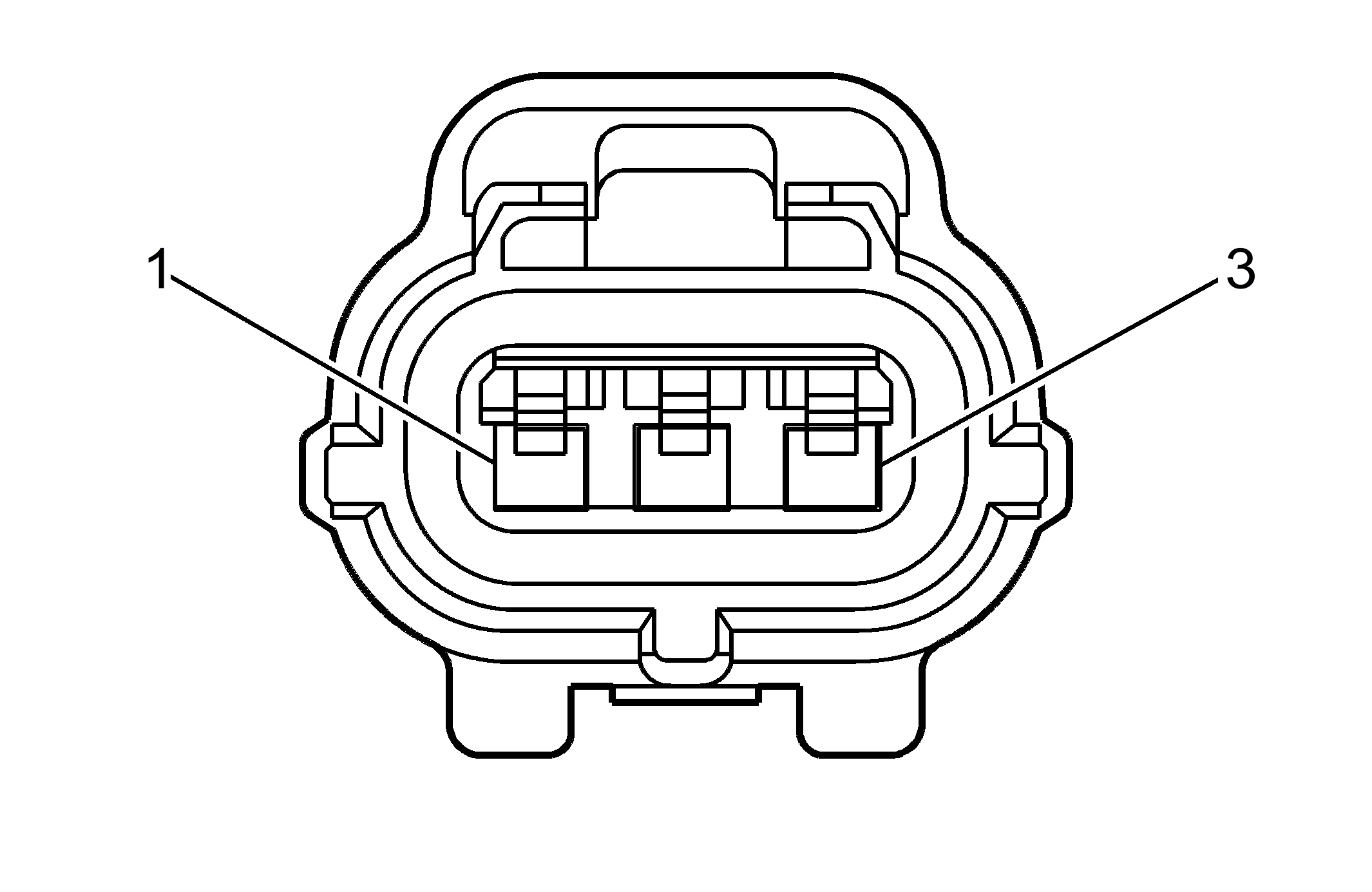

Fig 1: Fuel Tank Pressure (FTP) Sensor (Notchback with NQU) Connector End View

Courtesy of GENERAL MOTORS CORP.

Fuel Tank Pressure (FTP) Sensor (Notchback with NQU)

Pin	Wire	Circuit	Function
1	L-BU	1937	Low Reference
2	BN/BK	1030	Fuel Tank Pressure Sensor Signal
3	RD/WH	1031	5-Volt Reference 1

Connector Part Information

OEM: 174357-2
Service: N/A
Description: 3-Way F Sealed, (BK)

Terminal Part Information

Terminated Lead: Service by Terminal Replacement Only
Release Tool: 12094429
Diagnostic Test Probe: J-35616-33 (YE)
Terminal/Tray: 184095-1/7
Core/Insulation Crimp: E/D
