Fuel Pump and Sender Assembly Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

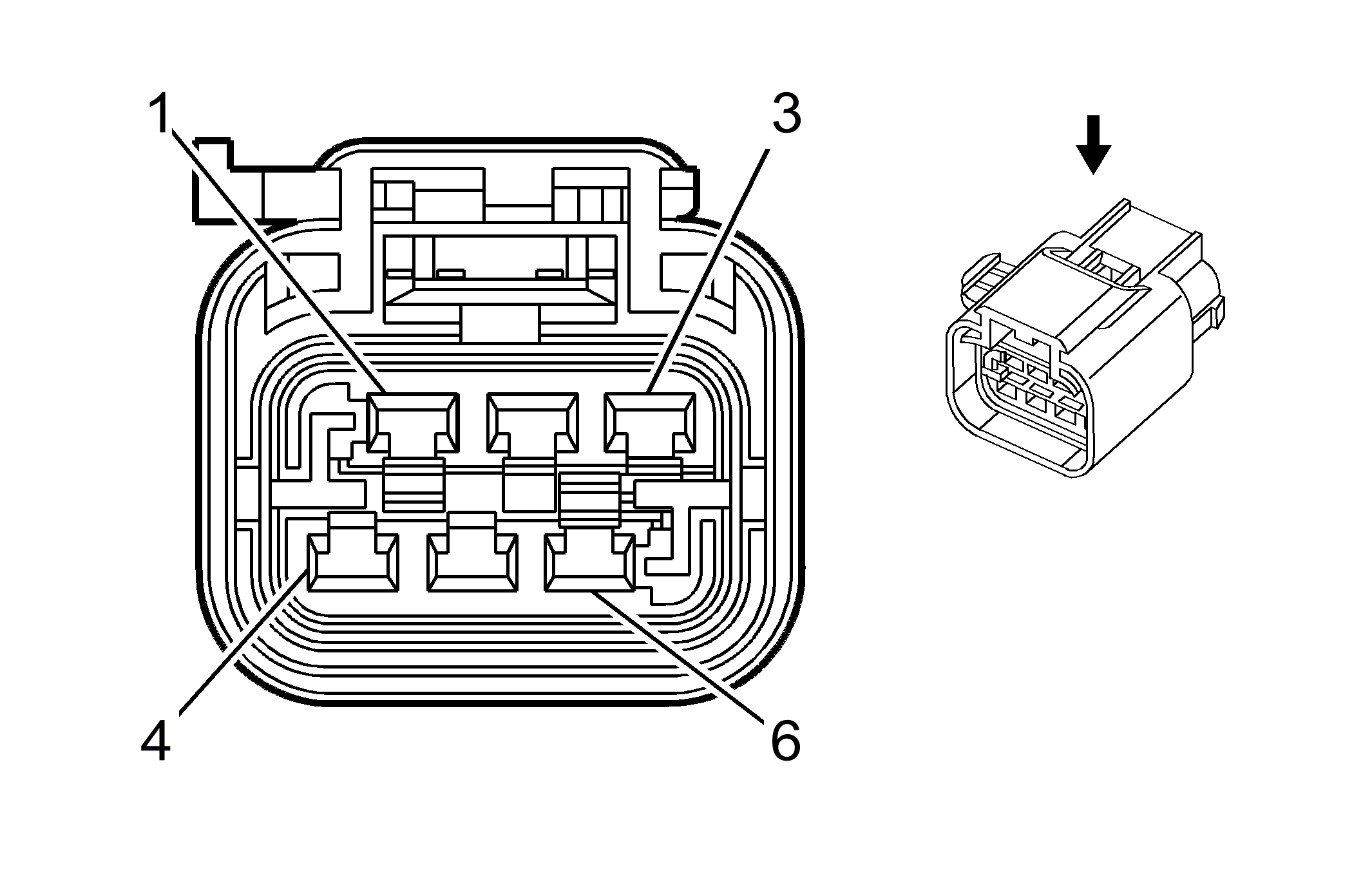

Fig 1: Fuel Pump and Sender Assembly Connector End View
GM1967474Courtesy of GENERAL MOTORS CORP.
Fuel Pump and Sender Assembly

Pin Wire Circuit Function
1 D-BU 1936 Fuel Level Sensor Signal
2 BK 850 Ground
3 TN 1723 Fuel Pump Supply Voltage
4 PK 539 Ignition Voltage (Notchback)
1739 Ignition Voltage (Hatchback)
5 YE 172 Low Fuel Indicator Control
6 L-BU 1937 Low Reference
Connector Part Information
  • OEM: 936159-1
  • Service: N/A
  • Description: 6-Way F, Sealed (TN)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
