Fuel Injector 4 (LMU/LV8) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

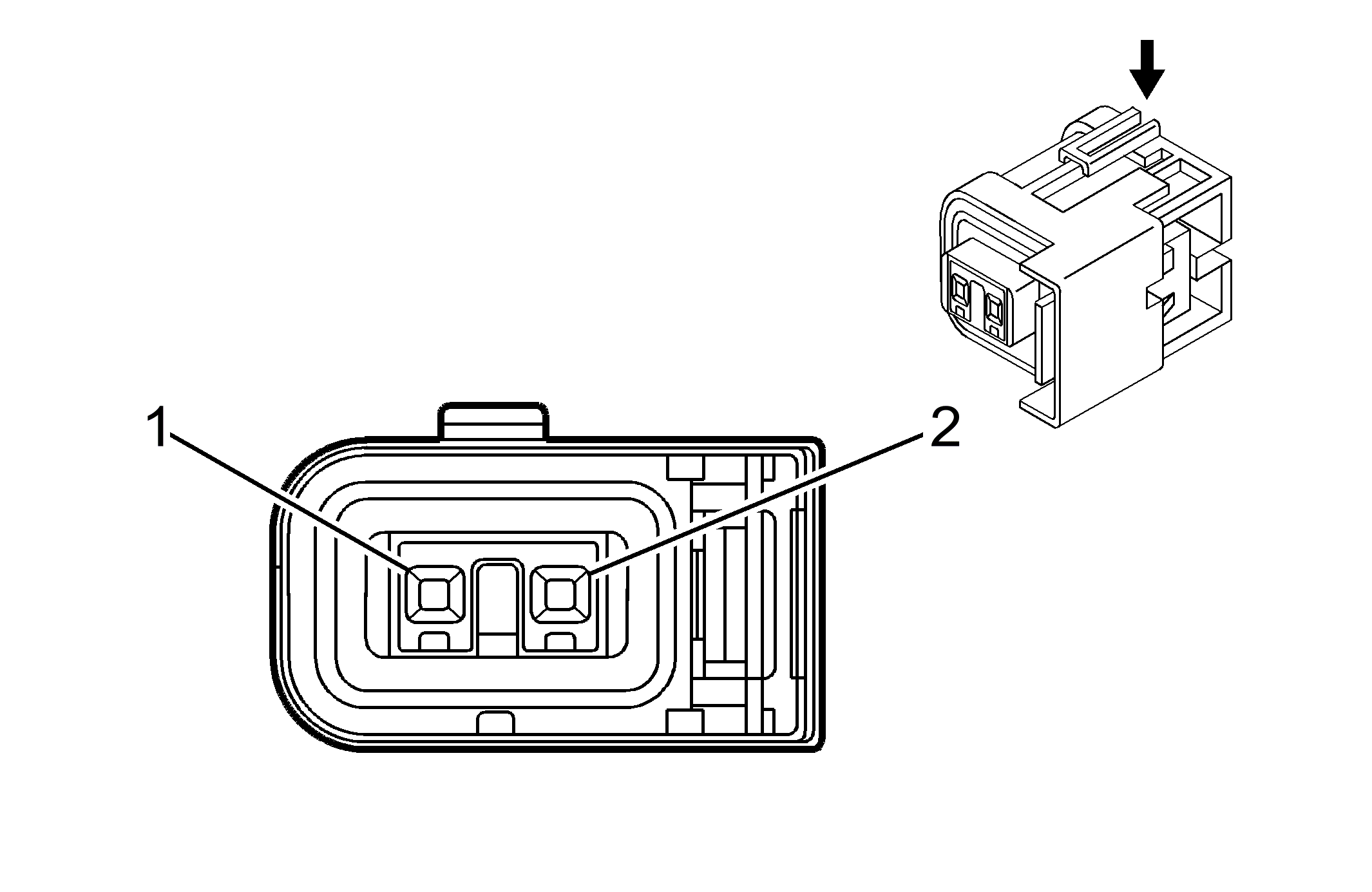

Fig 1: Fuel Injector 4 (LMU/LV8) Connector End View
GM1466998Courtesy of GENERAL MOTORS CORP.
Fuel Injector 4 (LMU/LV8)

Pin Wire Circuit Function
1 PK 539 Ignition 1 Voltage
2 BN 1744 Fuel Injector 4 Control
Connector Part Information
  • OEM: AMP 368468-1
  • Service: N/A
  • Description: 2-Way F Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
