Engine Oil Level (EOL) Sensor (NT4/UJ2) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

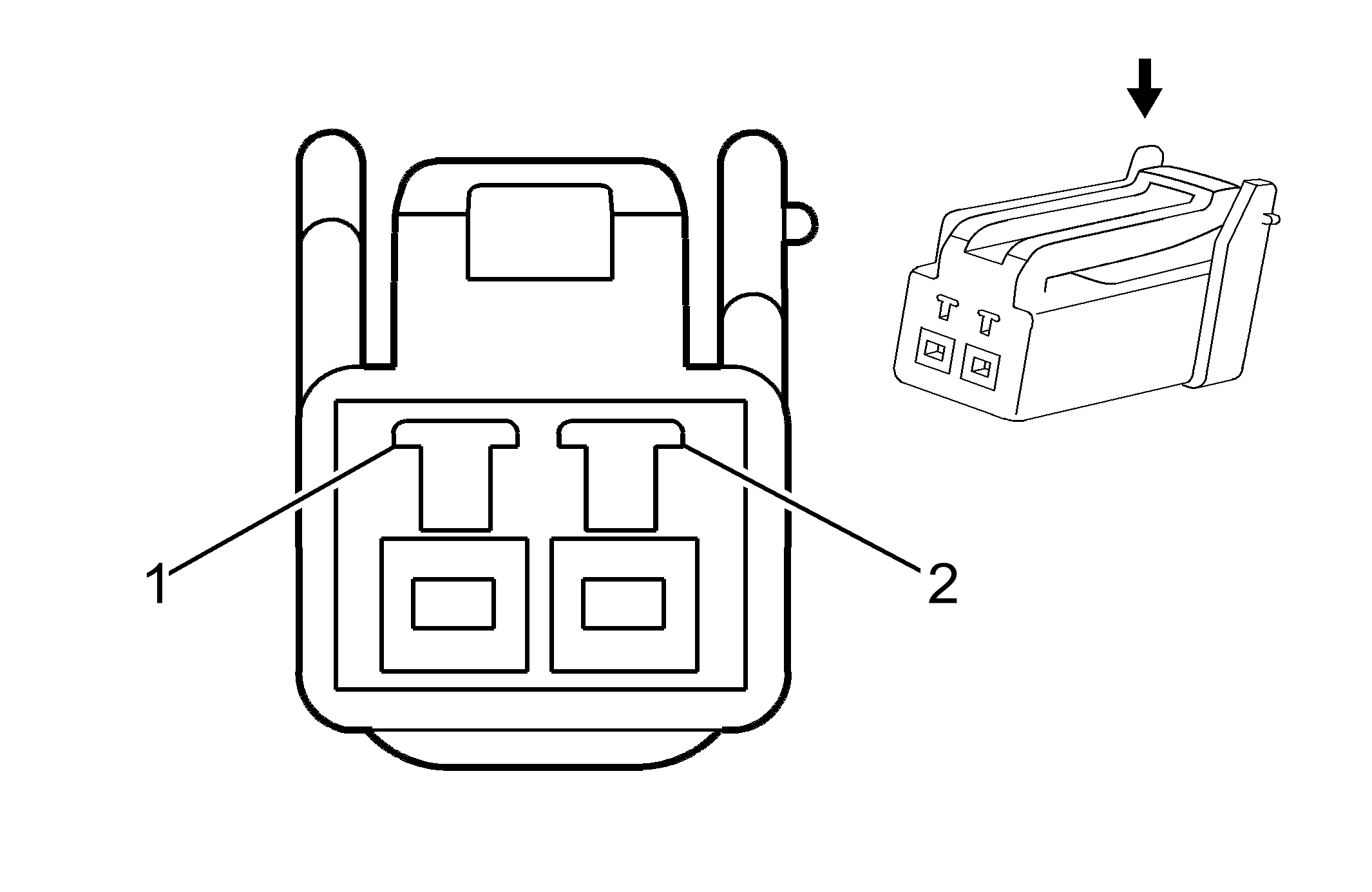

Fig 1: Engine Oil Level (EOL) Sensor (NT4/UJ2) Connector End View
GM2001235Courtesy of GENERAL MOTORS CORP.
Engine Oil Level (EOL) Sensor (NT4/UJ2)

Pin Wire Circuit Function
1 WH 550 Ground
2 OG 551 Oil Level Sensor Signal
Connector Part Information
  • OEM: 936059
  • Service: N/A
  • Description: 2-Way F Sealed, (BK)
Terminal Part Information
  • Terminated Lead: Service by Harness - See Part Catalog
  • Release Tool: Not Available
  • Diagnostic Test Probe: Not Available
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
