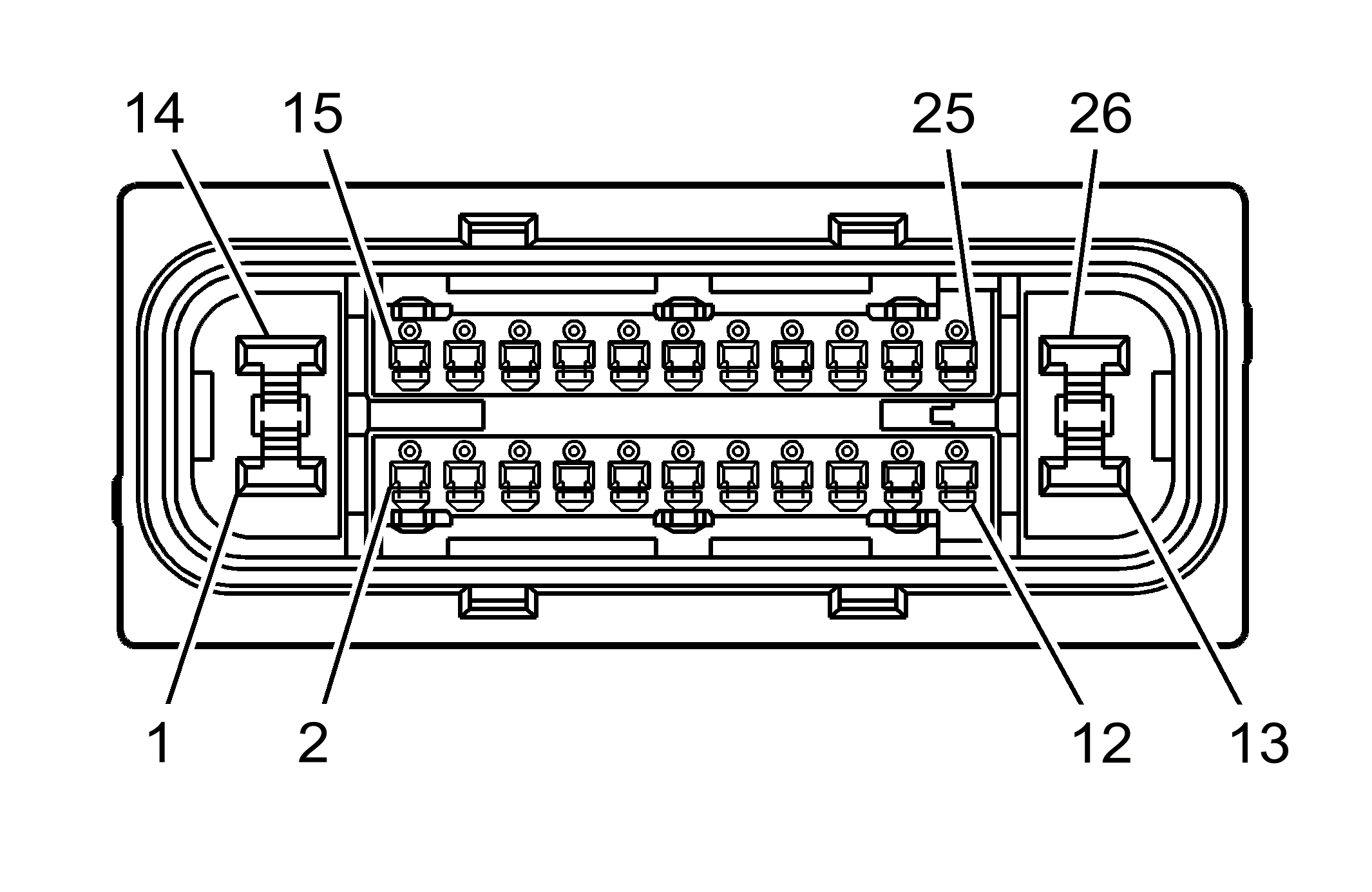

Electronic Brake Control Module (EBCM) (JM4) Connector End View
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Electronic Brake Control Module (EBCM) (JM4)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | RD | 40 | Battery Positive Voltage |
| 2 | BN | 884 | Left Rear Wheel Speed Sensor Signal |
| 3 | OG | 885 | Left Rear Wheel Speed Sensor Low Reference |
| 4 | - | - | Not Used |
| 5 | BN | 833 | Right Front Wheel Speed Sensor Low Reference |
| 6 | D-GN | 872 | Right Front Wheel Speed Sensor Signal |
| 7 | - | - | Not Used |
| 8 | L-BU | 830 | Left Front Wheel Speed Sensor Signal |
| 9 | YE | 873 | Left Front Wheel Speed Sensor Low Reference |
| 10 | L-GN/BK | 867 | ABS Indicator Failure Control |
| 11 | WH | 883 | Right Rear Wheel Speed Sensor Low Reference |
| 12 | BN | 882 | Right Rear Wheel Speed Sensor Signal |
| 13 | BK | 50 | Ground |
| 14 | RD | 40 | Battery Positive Voltage |
| 15 | - | - | Not Used |
| 16 | L-BU | 20 | Stop Lamp Supply Voltage |
| 17 | - | - | Not Used |
| 18 | BK/WH | 2051 | Serial Data Signal |
| 19 | L-BU | 834 | Vehicle Speed Signal (without WHB) |
| 20 | PK | 539 | Ignition 1 Voltage |
| 21-25 | - | - | Not Used |
| 26 | BK | 50 | Ground |
Connector Part Information
|
Terminal Part Information
|
