Installation Procedure
WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
- Install the splash shield to the knuckle with the screws and tighten to 4 N.m (35 lb in).
- Install the wheel hub, bearing and seal to the knuckle. Refer to Wheel Hub, Bearing, Knuckle, and Seal Replacement .
- Install the knuckle assembly to the front strut with the nuts and bolts and tighten to 100 N.m (74 lb ft).
- Install the ABS wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement .
- Install the brake rotor. Refer to Brake Rotor Replacement .
- Install the brake caliper. Refer to Brake Caliper Replacement .

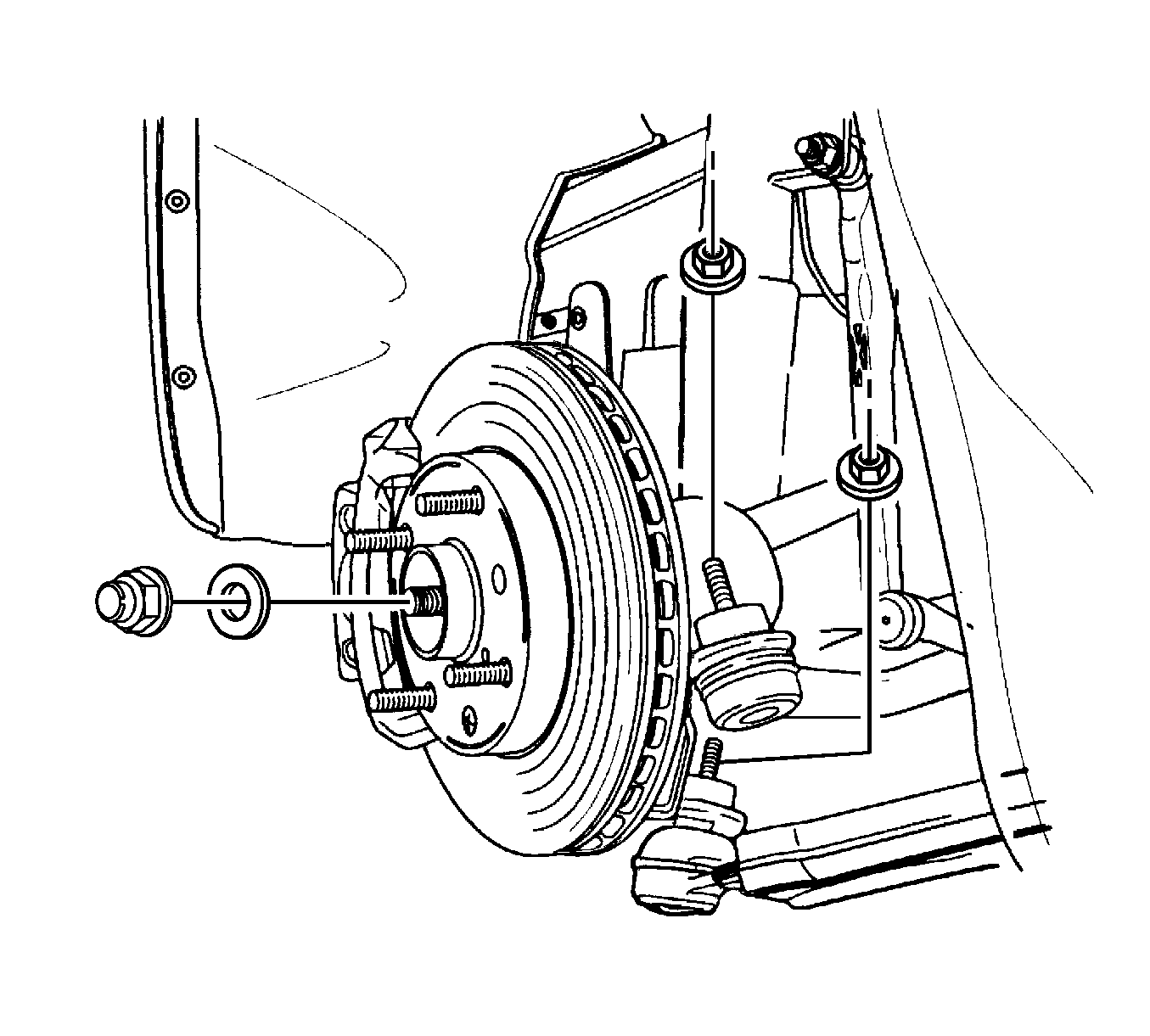

- Install the lower ball joint to the steering knuckle.
- Install the lower ball joint nut and tighten to 55 N.m (41 lb ft).
- Install the outer tie rod end to the steering knuckle.
- Install the outer tie rod nut and tighten to 45 N.m (33 lb ft).
- Loosely install a NEW axle shaft caulking nut.
- Tighten the axle shaft caulking nut to 300 N.m (221 lb ft).
- Stake the caulking nut.
- Install the front wheels. Refer to Tire and Wheel Removal and Installation .
- Lower the vehicle.
- Inspect the vehicle. Refer to Preliminary Alignment Inspection and to Straight Ahead Inspection .
- Measure the wheel alignment.
- If necessary, adjust the front toe. Refer to Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment .
CAUTION:
Refer to Fastener Caution
.
