Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

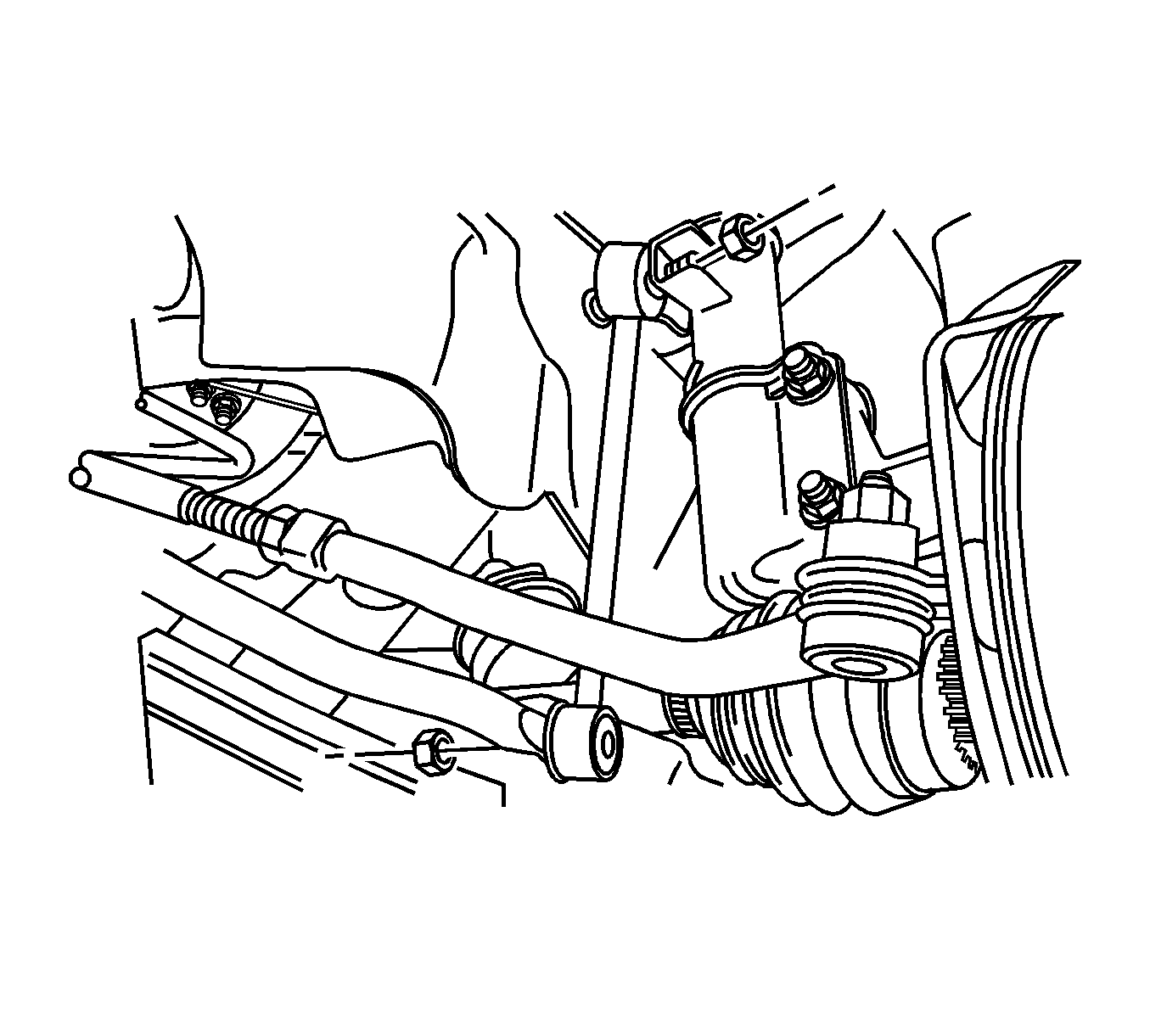

    Fig 1: Stabilizer Shaft-To-Knuckle Nut & Shaft-To-Link Nut
    GM1241958Courtesy of GENERAL MOTORS CORP.
  1. Install the stabilizer shaft into the vehicle.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the stabilizer shaft-to-knuckle nut and the shaft-to-link nut and tighten to 50 N.m (37 lb ft).
  3. Install the front wheel. Refer to Tire and Wheel Removal and Installation .
  4. Lower the vehicle.
