Radio/Navigation System Wiring Schematics

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

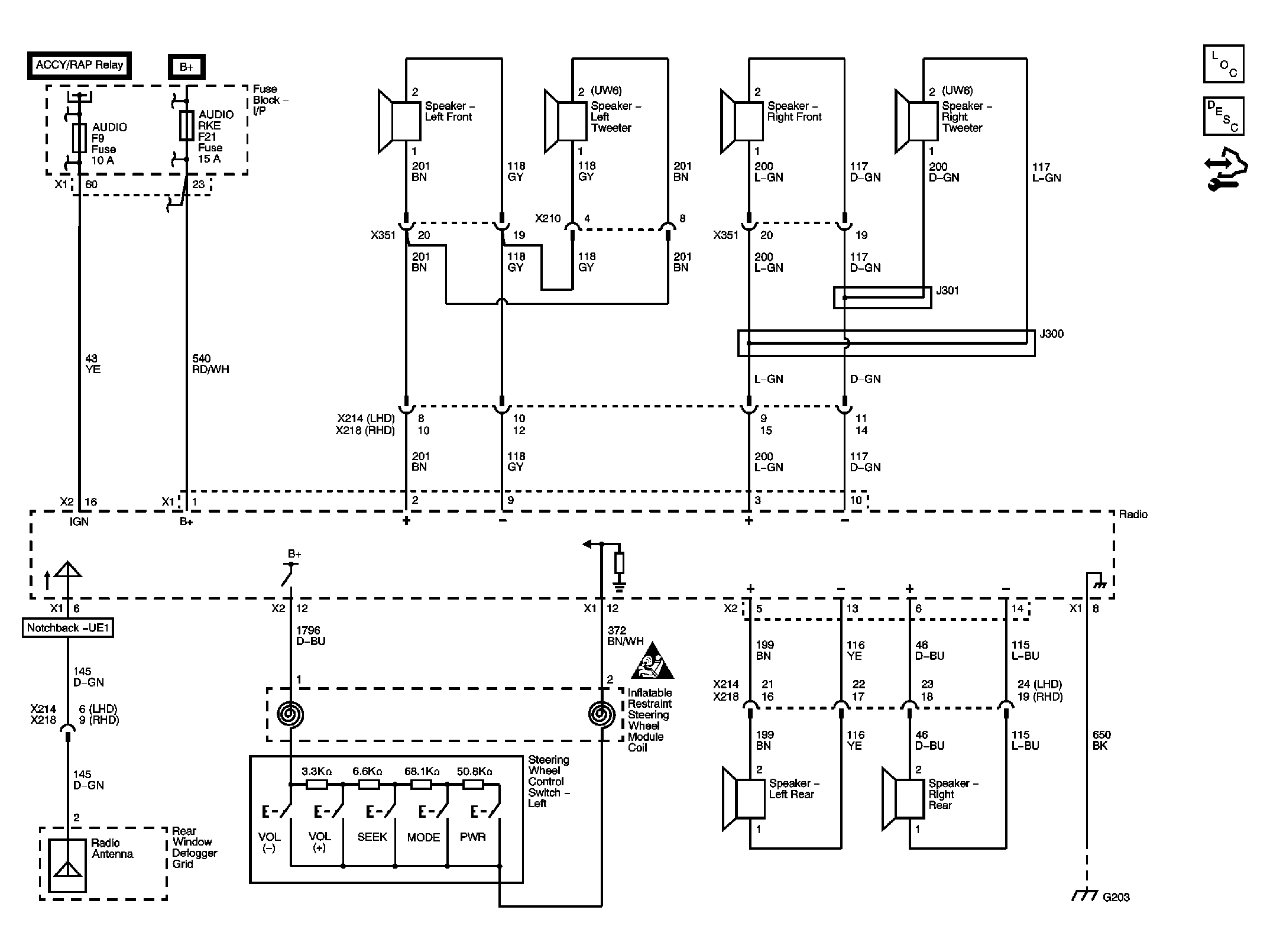

Fig 1: Radio/Navigation System Wiring Schematic
GM2382680Courtesy of GENERAL MOTORS CORP.
