Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

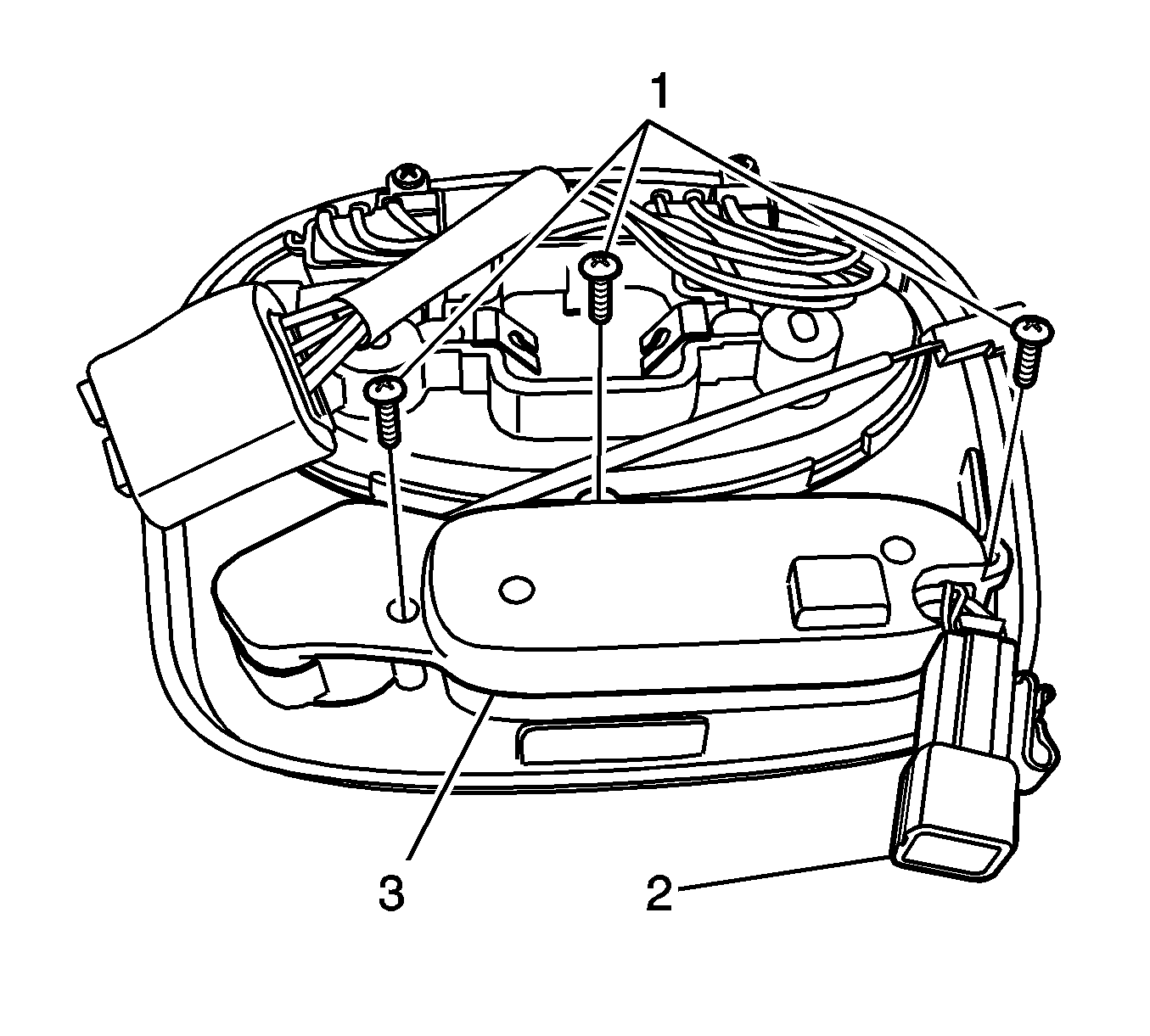

Fig 1: Onstar Button Cover, Screws & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the Onstar button cover (3) and the screws (1) to the interior courtesy lamp and tighten to 2.5 N.m (22 lb in).
Connect the electrical connector (2).

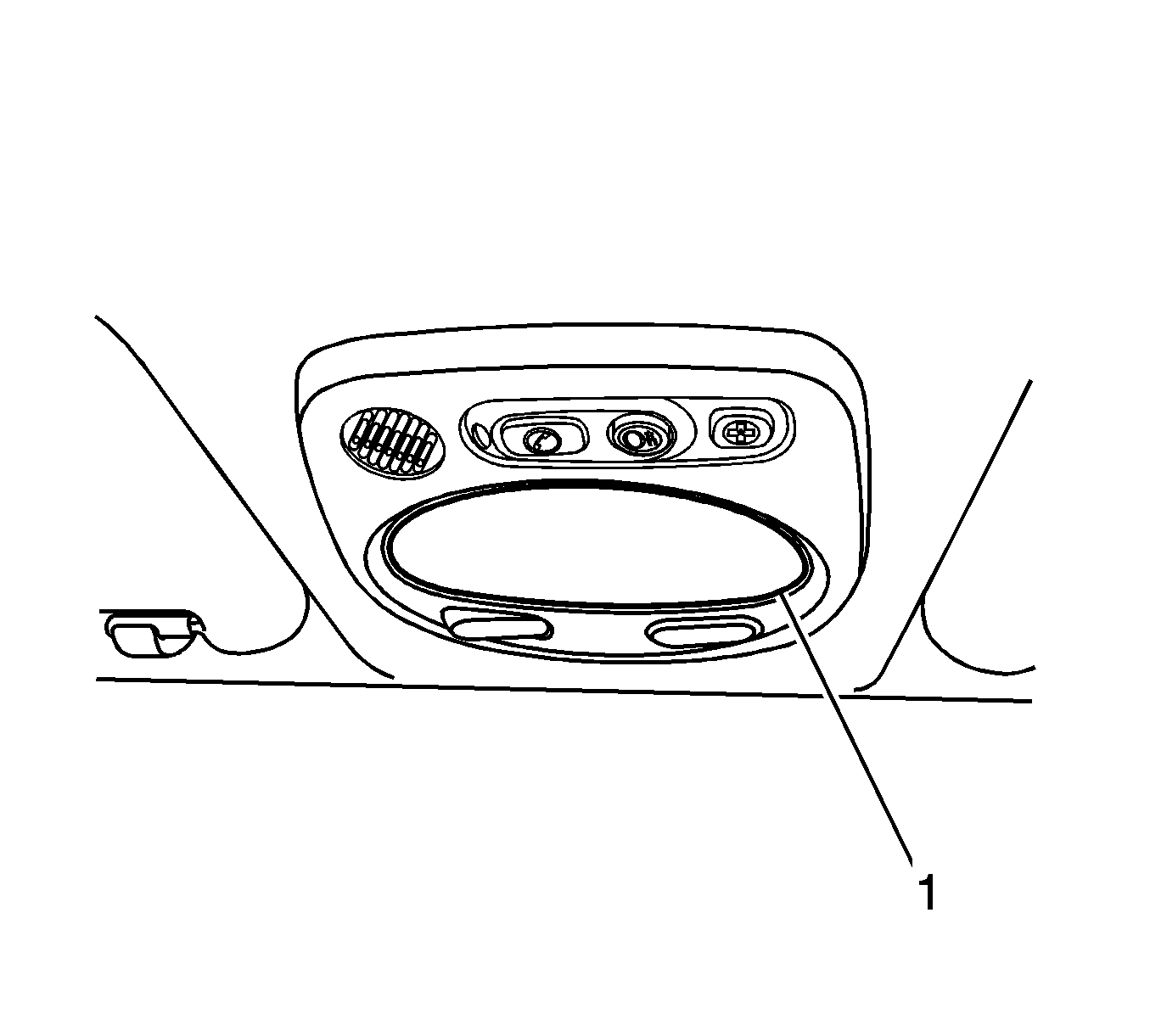

Fig 2: Interior Courtesy Lamp Retaining Tabs

Courtesy of GENERAL MOTORS CORP.

Install the interior courtesy lamp (1). Refer to Interior Courtesy Lamp Replacement .
