Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

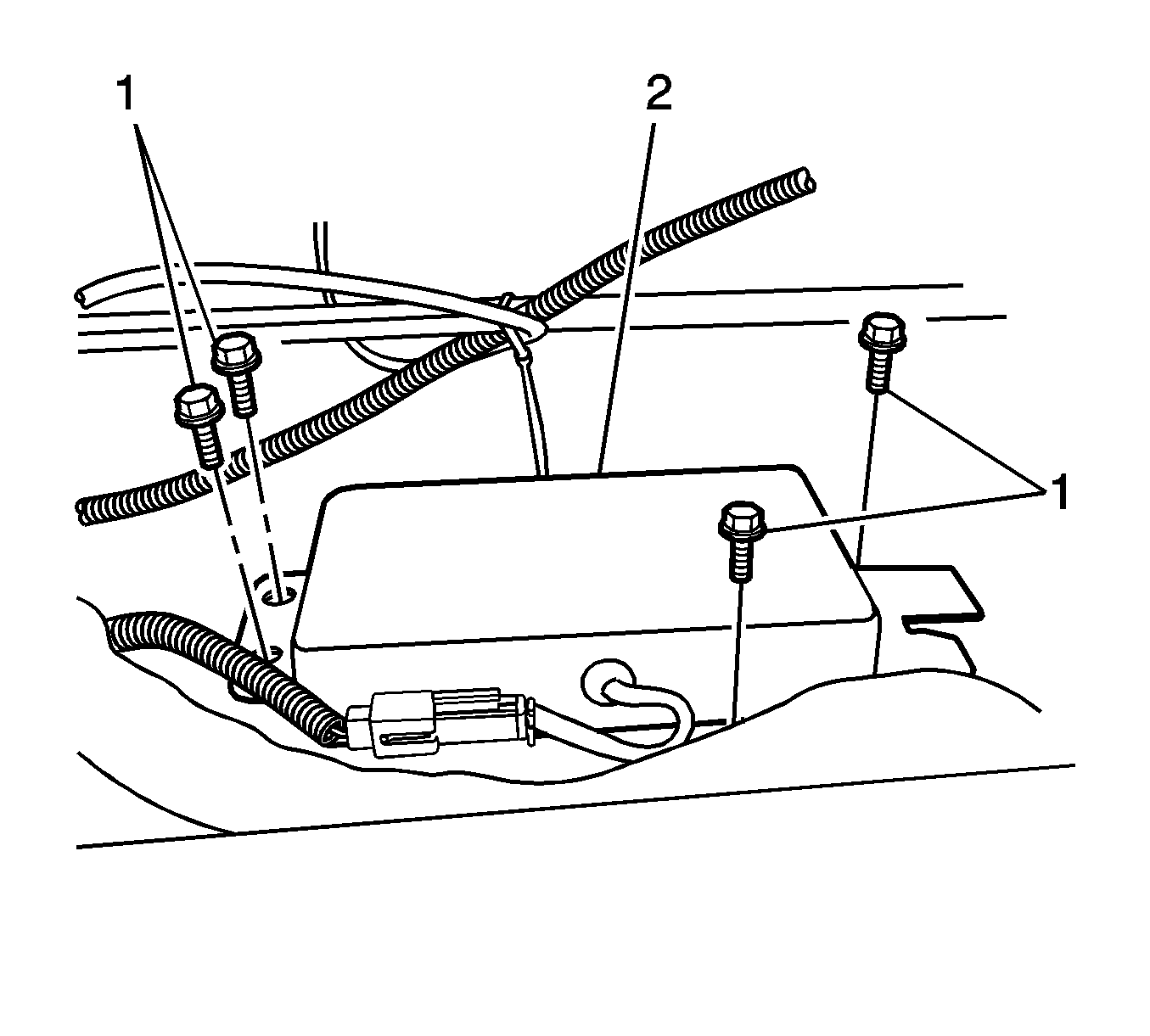

    Fig 1: Onstar Battery & Bolts
    GM2083021Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the Onstar battery (2) with the bolts (1) and tighten to 3 N.m (27 lb in).
  2. Restore the seat position.
  3. Connect the electrical connectors.
  4. Connect the negative battery cable.
