Installation Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

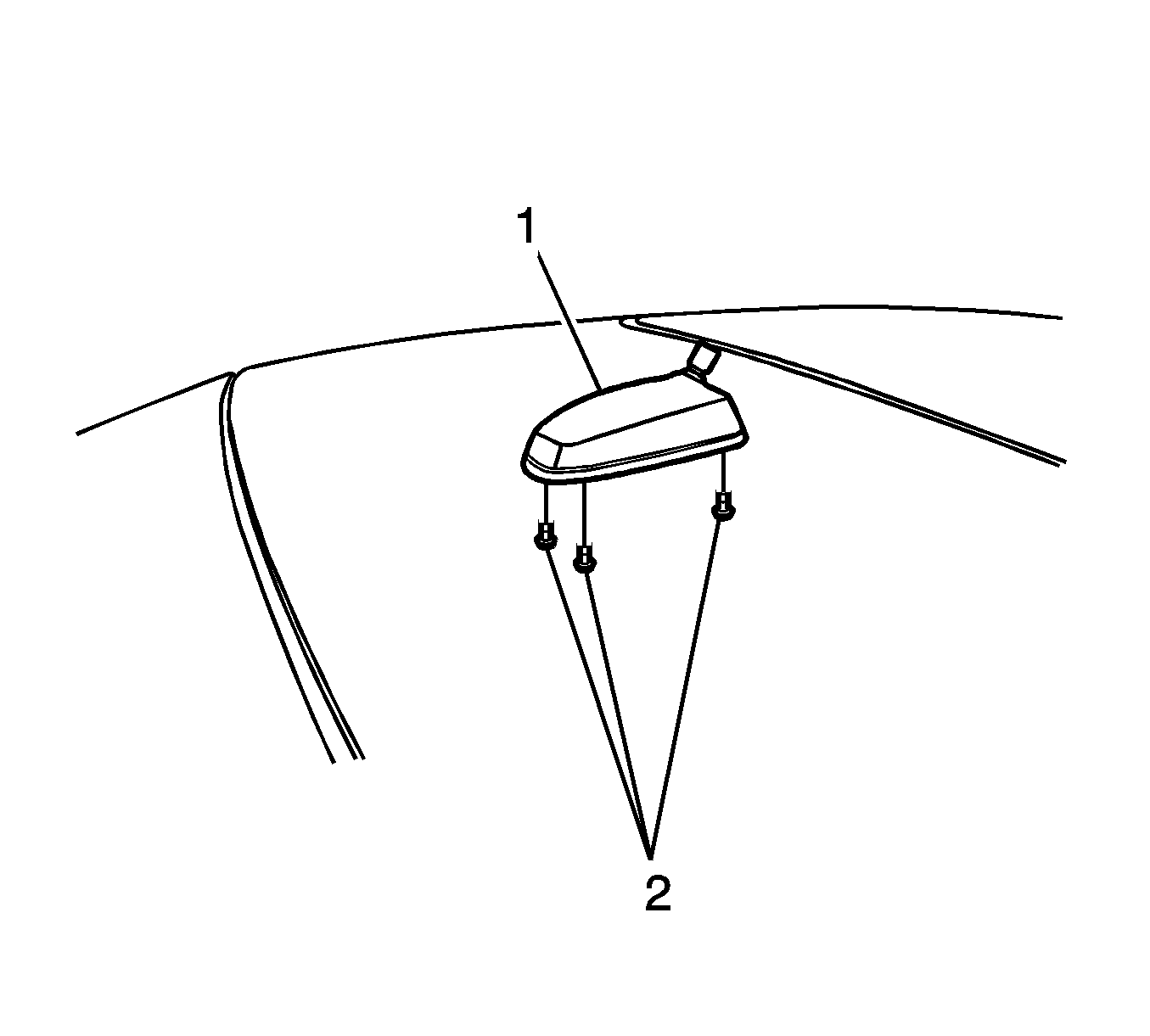

    Fig 1: Identifying Screws And Cellular/Navigation Antenna
    GM2083028Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the cellular/navigation antenna (1) and the screws (2). Tighten to 9 N.m (80 lb in)
  2. Connect the connector of the antenna coax cable.
  3. Install the headliner. Refer to Headlining Trim Panel Replacement .
