Blower Motor Control Module (C68)

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

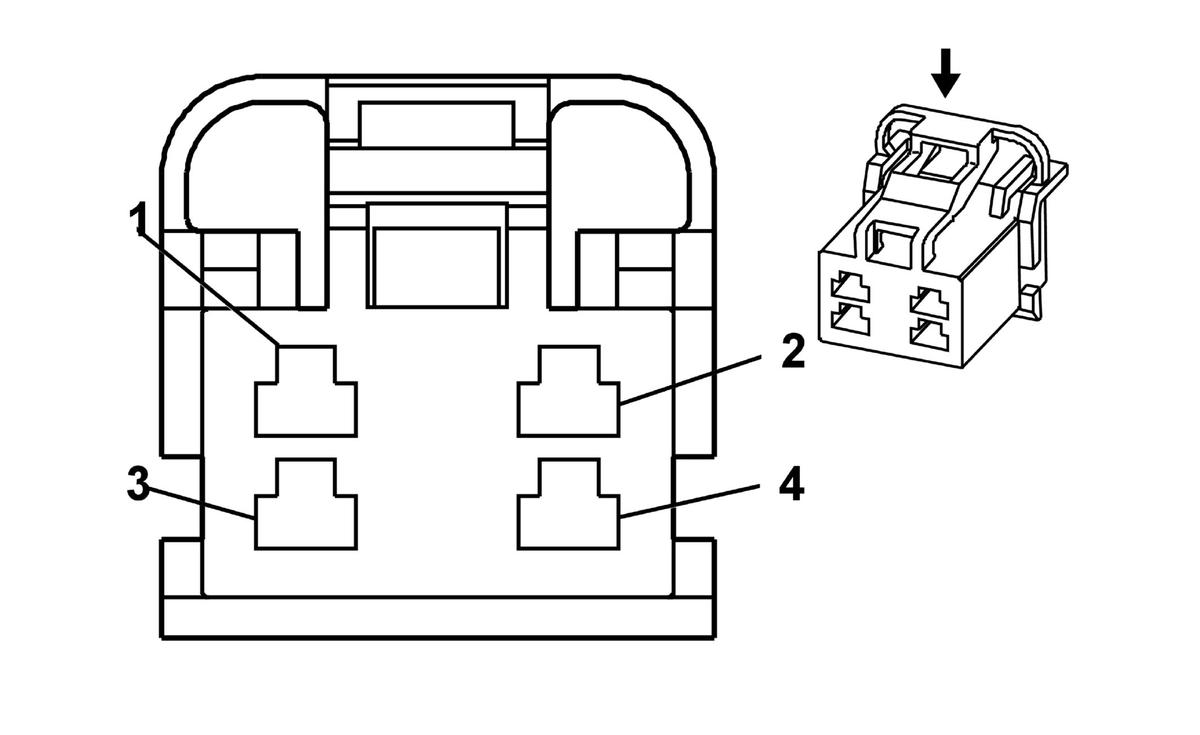

Fig 1: Blower Motor Control Module (C68) Connector End View
GM1835057Courtesy of GENERAL MOTORS CORP.
Blower Motor Control Module (C68)

Pin Wire Circuit Function
1 D-BU/YE - Blower Motor Speed Control
2 D-BU/RD - Blower Motor Control
3 - - Not Used
4 BK - Ground
Connector Part Information
  • OEM: MG 610267
  • Service: N/A
  • Description: 4-Way F, (NA)
Terminal Part Information
  • Terminated Lead: 12124083
  • Release Tool: 12094430
  • Diagnostic Test Probe: KM-609-11
  • Terminal/Tray: Not Available
  • Core/Insulation Crimp: Not Available
