Automatic Transmission Shift Program Switch (MLQ) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

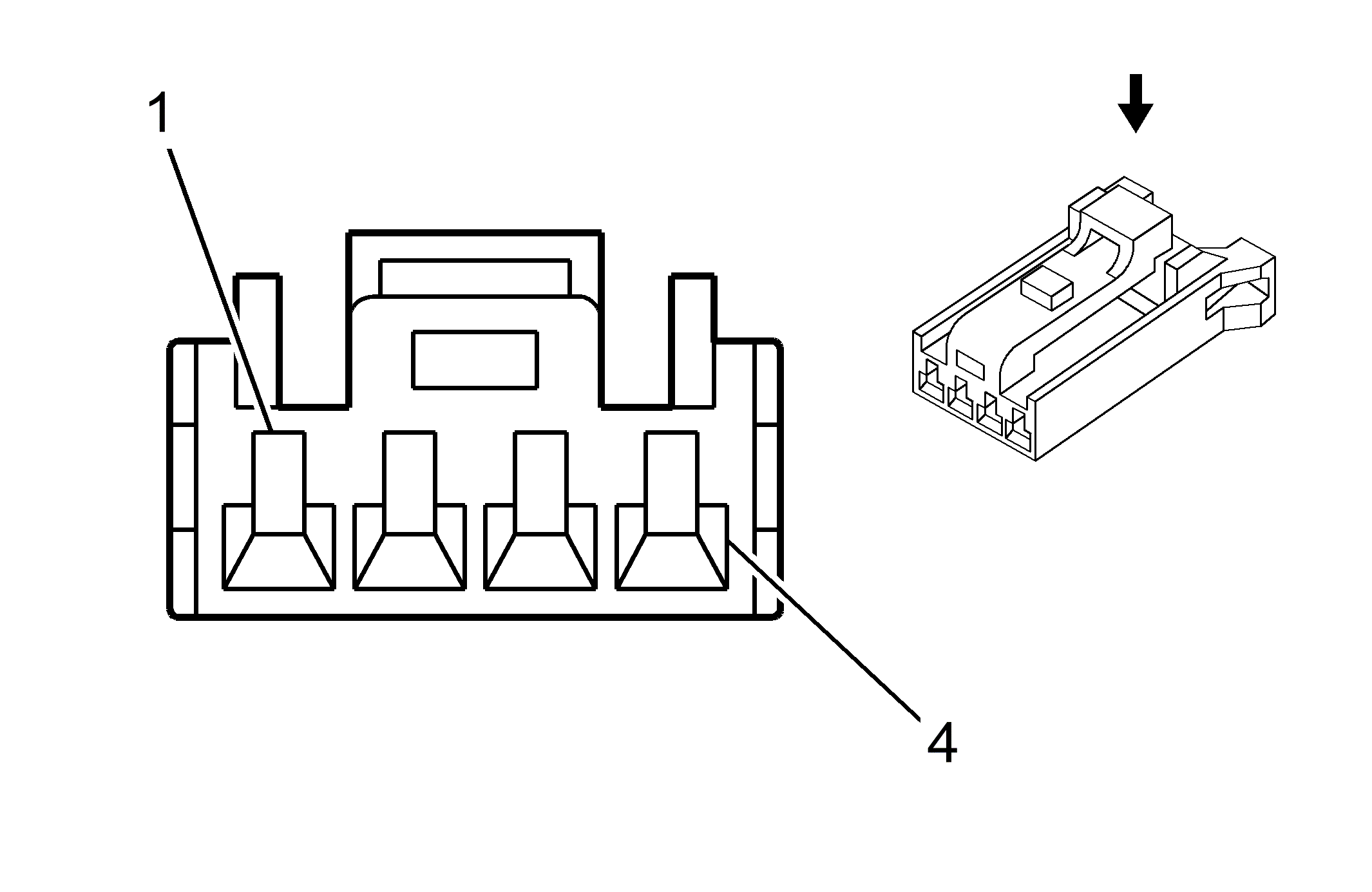

Fig 1: Automatic Transmission Shift Program Switch (MLQ) Connector End View
GM1467047Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Shift Program Switch (MLQ)

Pin Wire Circuit Function
1 D-GN/WH 1135 Automatic Transmission Shift Lock Control Solenoid Supply Voltage
2 BK 650 Ground
3 BN/WH 309 Right Park Lamp Supply Voltage
4 D-GN 230 Instrument Panel Lamps Dimming Control
Connector Part Information
  • OEM: MG 610366
  • Service: N/A
  • Description: 4-Way F, (WH)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: 12094429
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SHCM-A03T-P025/20
  • Core/Insulation Crimp: J/J
