Automatic Transmission Output Shaft Speed (OSS) Sensor (MLQ without XG2) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

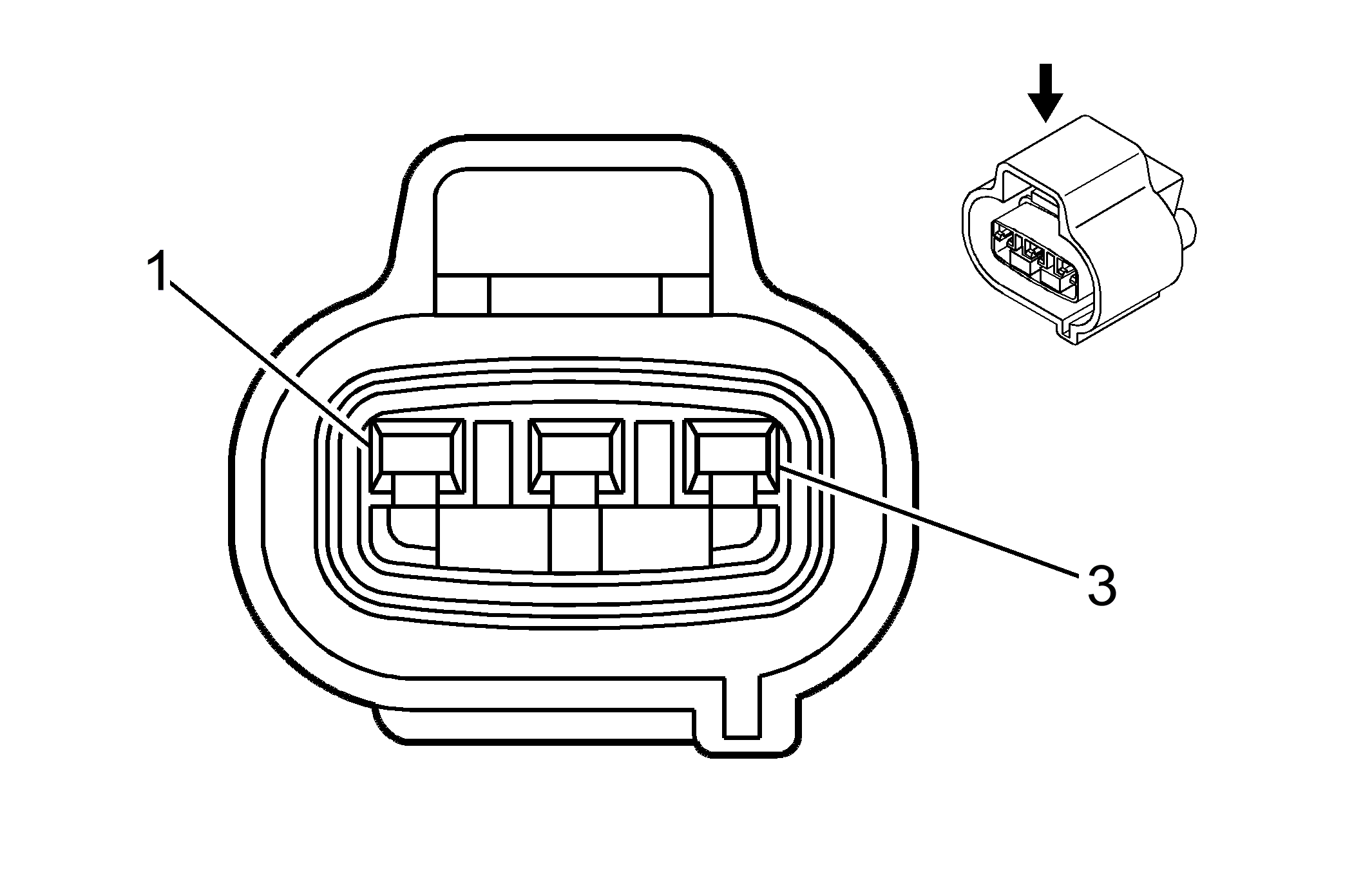

Fig 1: Automatic Transmission Output Shaft Speed (OSS) Sensor (MLQ without XG2) Connector End View
GM1481279Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Output Shaft Speed (OSS) Sensor (MLQ without XG2)

Pin Wire Circuit Function
1 PK 239 Ignition 1 Voltage
2 BK 50 Ground
3 D-GN/WH 817 Vehicle Speed Signal
Connector Part Information
  • OEM: 7283-1232-30
  • Service: N/A
  • Description: 3-Way F, Sealed (BK)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: J-38125-215A
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: SAIT-A03GF-M064/27
  • Core/Insulation Crimp: P/P
