Automatic Transmission Input Shaft Speed (ISS) Sensor (MLQ) Connector End View

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

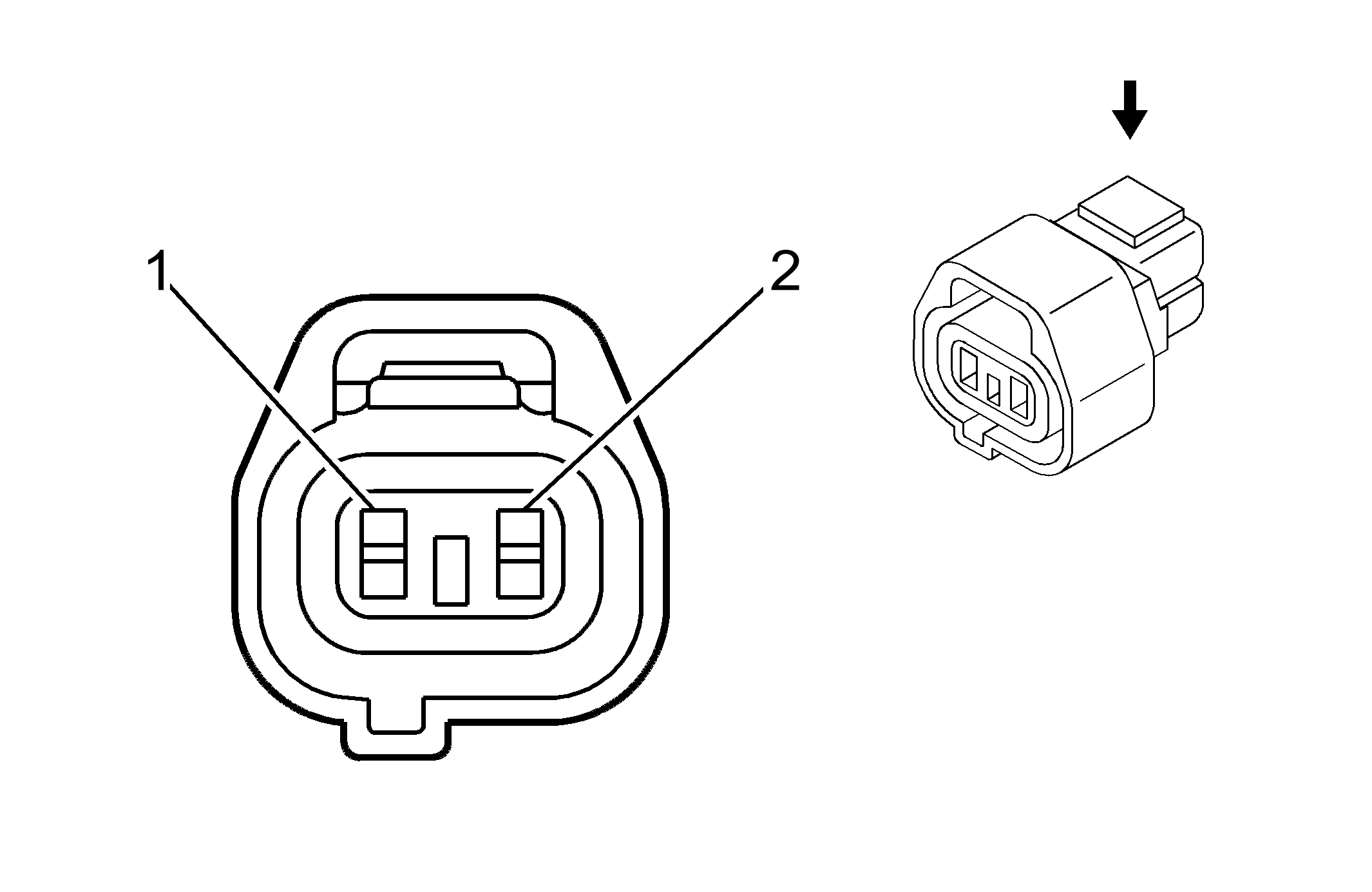

Fig 1: Automatic Transmission Input Shaft Speed (ISS) Sensor (MLQ) Connector End View
GM1481270Courtesy of GENERAL MOTORS CORP.
Automatic Transmission Input Shaft Speed (ISS) Sensor (MLQ)

Pin Wire Circuit Function
1 OG 6253 Input Shaft Speed (ISS) Sensor Low Signal
2 WH 6254 Input Shaft Speed (ISS) Sensor High Signal
Connector Part Information
  • OEM: 7283-8125-90
  • Service: N/A
  • Description: 2-Way F Sealed, (BU)
Terminal Part Information
  • Terminated Lead: Service by Terminal Replacement Only
  • Release Tool: 15313892
  • Diagnostic Test Probe: J-35616-18 (BK)
  • Terminal/Tray: 7116-4025/11
  • Core/Insulation Crimp: E/1
