Installation Procedure

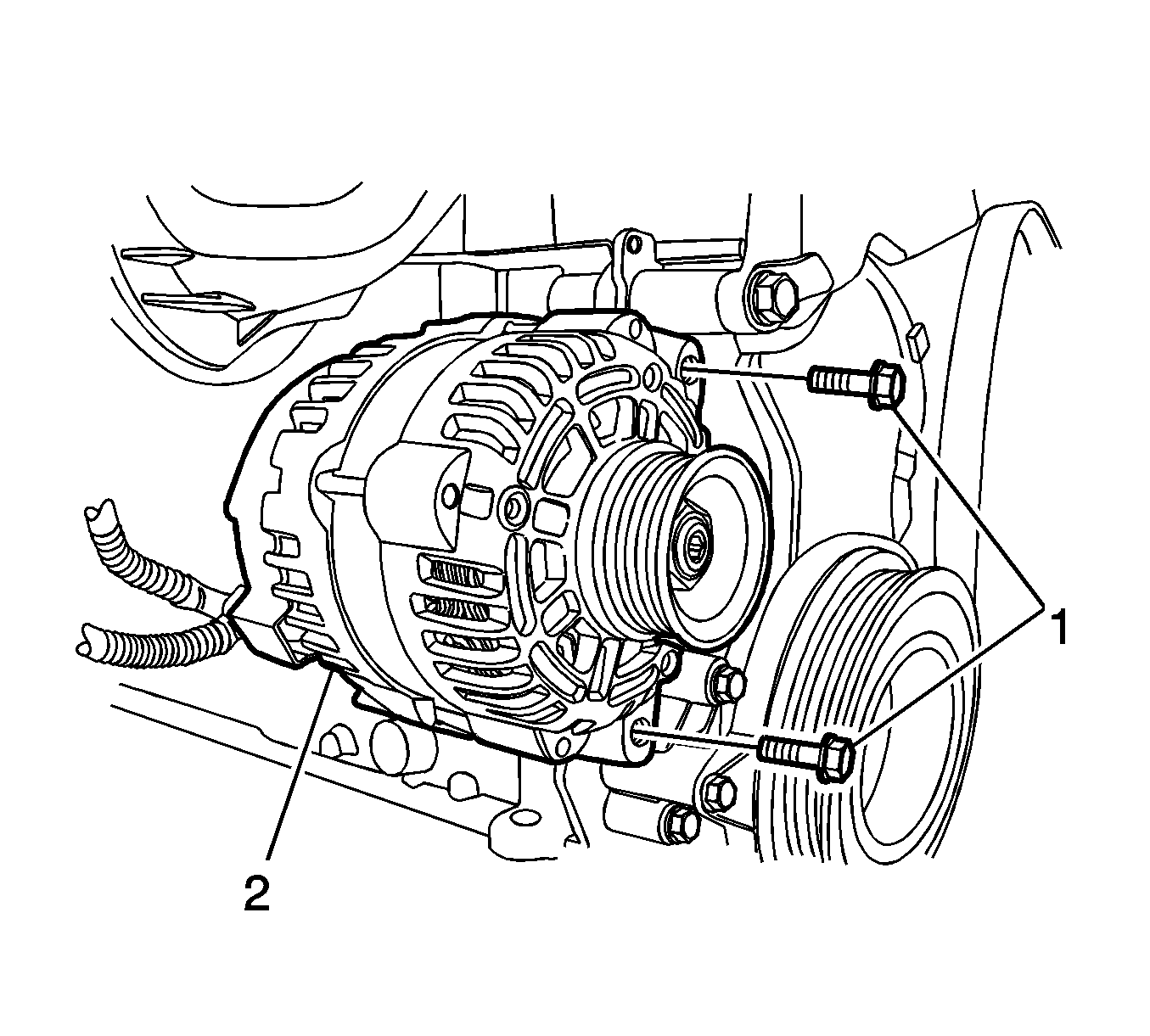

    Fig 1: Generator Retaining Bolts/Nuts
    GM2049045Courtesy of GENERAL MOTORS CORP.
  1. Install the generator (2).
    2. CAUTION: Refer to Fastener Caution .
  2. Install the generator retaining bolt/nut (1) and tighten to 25 N.m (18.4 lb ft).
  3. Install the battery harness connector nut to connect the battery positive connector.
  4. Connect the harness connector.
  5. Install the accessory belt. Refer to DRIVE BELT REPLACEMENT .
  6. Lower the vehicle.
  7. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
