Immobilizer Schematics

Fig 1: Immobilizer Schematic (Notchback)

GM1737476

Courtesy of GENERAL MOTORS CORP.

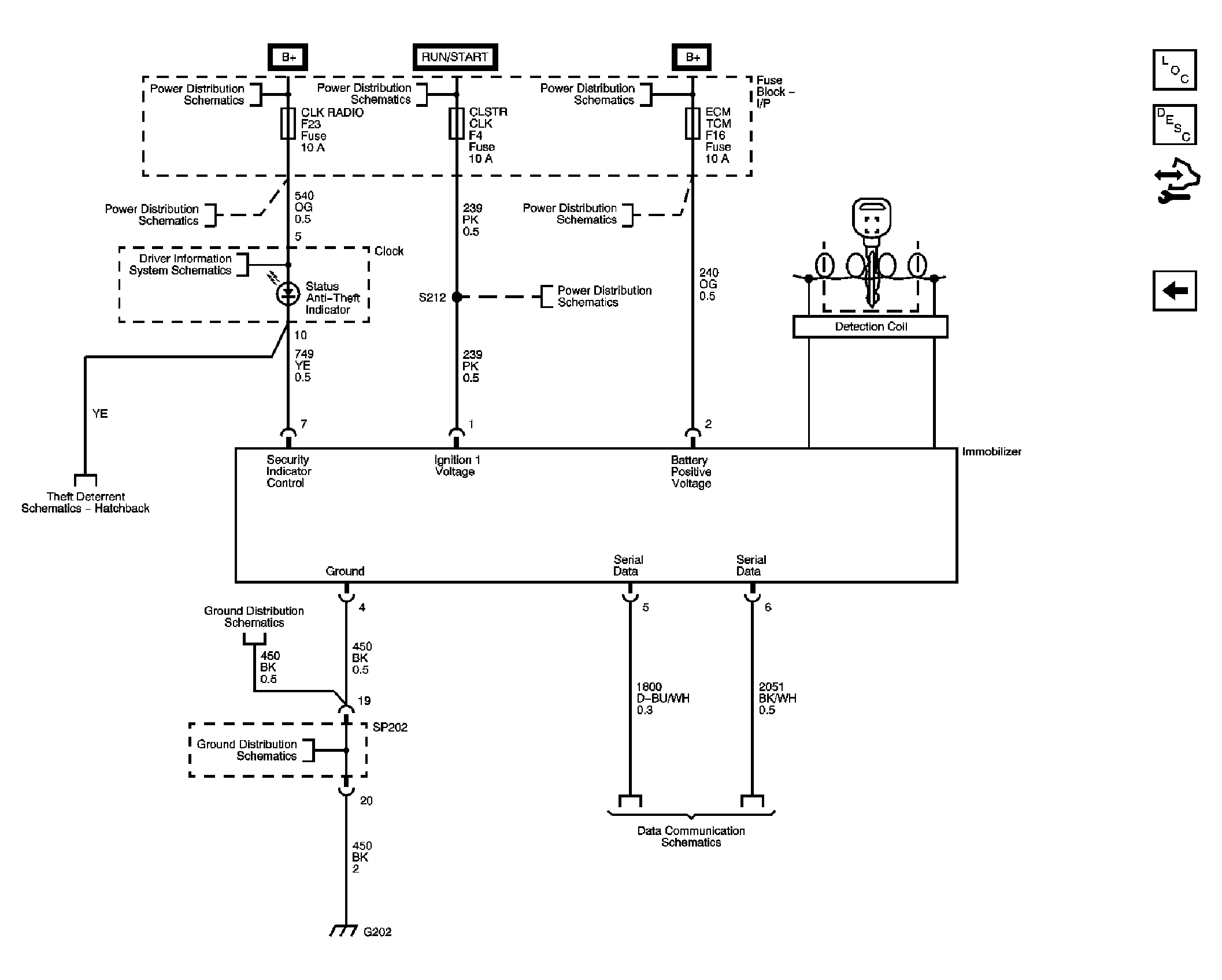

Fig 2: Immobilizer Schematic (Hatchback)

GM1891851

Courtesy of GENERAL MOTORS CORP.
