Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

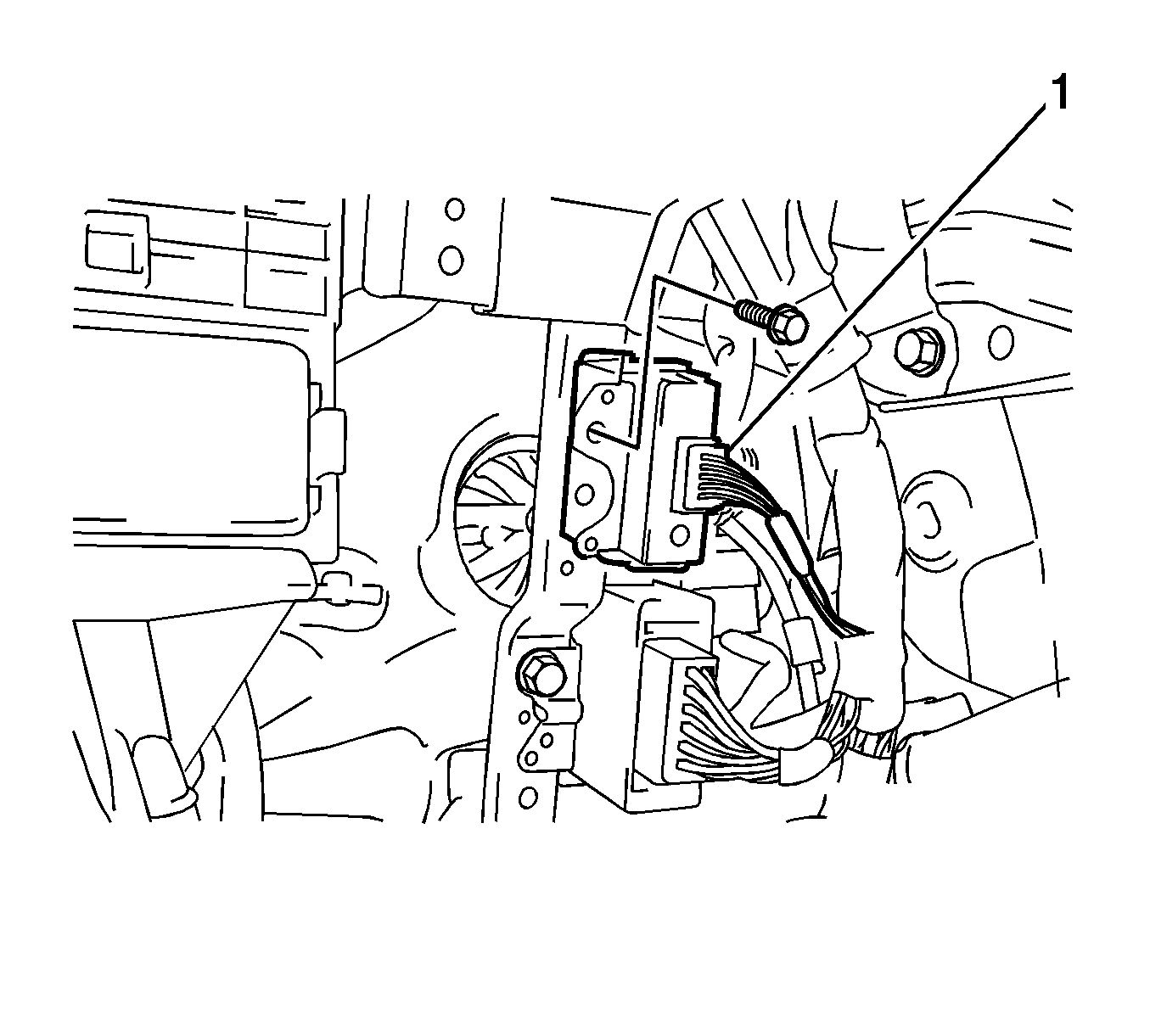

    Fig 1: Identifying Bolt And Glass Breakage Sensor ECU
    GM2032043Courtesy of GENERAL MOTORS CORP.
  1. Install the glass breakage sensor ECU with the bolt.
  2. Connect the connector (1).
  3. Install the glove compartment door assembly. Refer to Instrument Panel Compartment Replacement .
