Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Removing/Installing Outer Mirror Screws

Courtesy of GENERAL MOTORS CORP.

Engage the clip, and install the outer rear view mirror assembly.

NOTE: Refer to Fastener Caution .

Install the three screws.
Tighten: Tighten the outside rearview screws to 9 N.m (80 lb in).

Fig 2: Identifying Clip & Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connector (1).
Engage the clip (1).

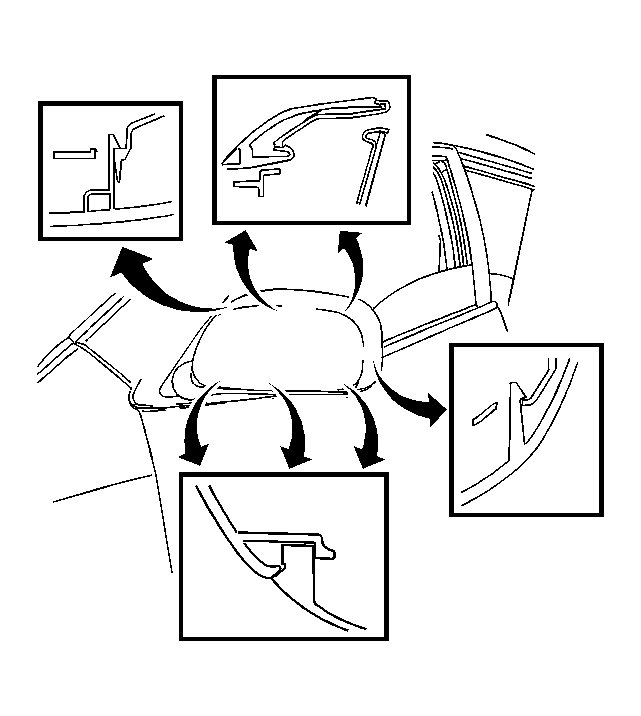

Fig 3: Exploded View Of Clips And Outer Mirror Cover

Courtesy of GENERAL MOTORS CORP.

Engage the seven clips and install the outer mirror cover.
Install the front side door trim applique. Refer to Front Side Door Trim Panel Applique Replacement .
Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
