Power Steering Pump Disassemble: Notes

  1. Remove the power steering pump from the vehicle. Refer to Power Steering Pump Replacement .
    2. Fig 1: Power Steering Pump Components
    GM820256Courtesy of GENERAL MOTORS CORP.
  2. Thoroughly clean the exterior of the pump (4).
  3. Remove the bolt and the inlet tube from the pump.
  4. Remove the inlet tube seal from the inlet tube.
  5. Remove the pump fitting from the flow control valve.
  6. Remove the pump fitting seal from the pump fitting.
  7. Remove the flow control valve from the pump.
  8. Remove the flow control valve spring.
  9. Remove the power steering pump pressure switch.
  10. Remove the 4 bolts and the rear pump housing from the front housing.
  11. Remove the pump housing seal.

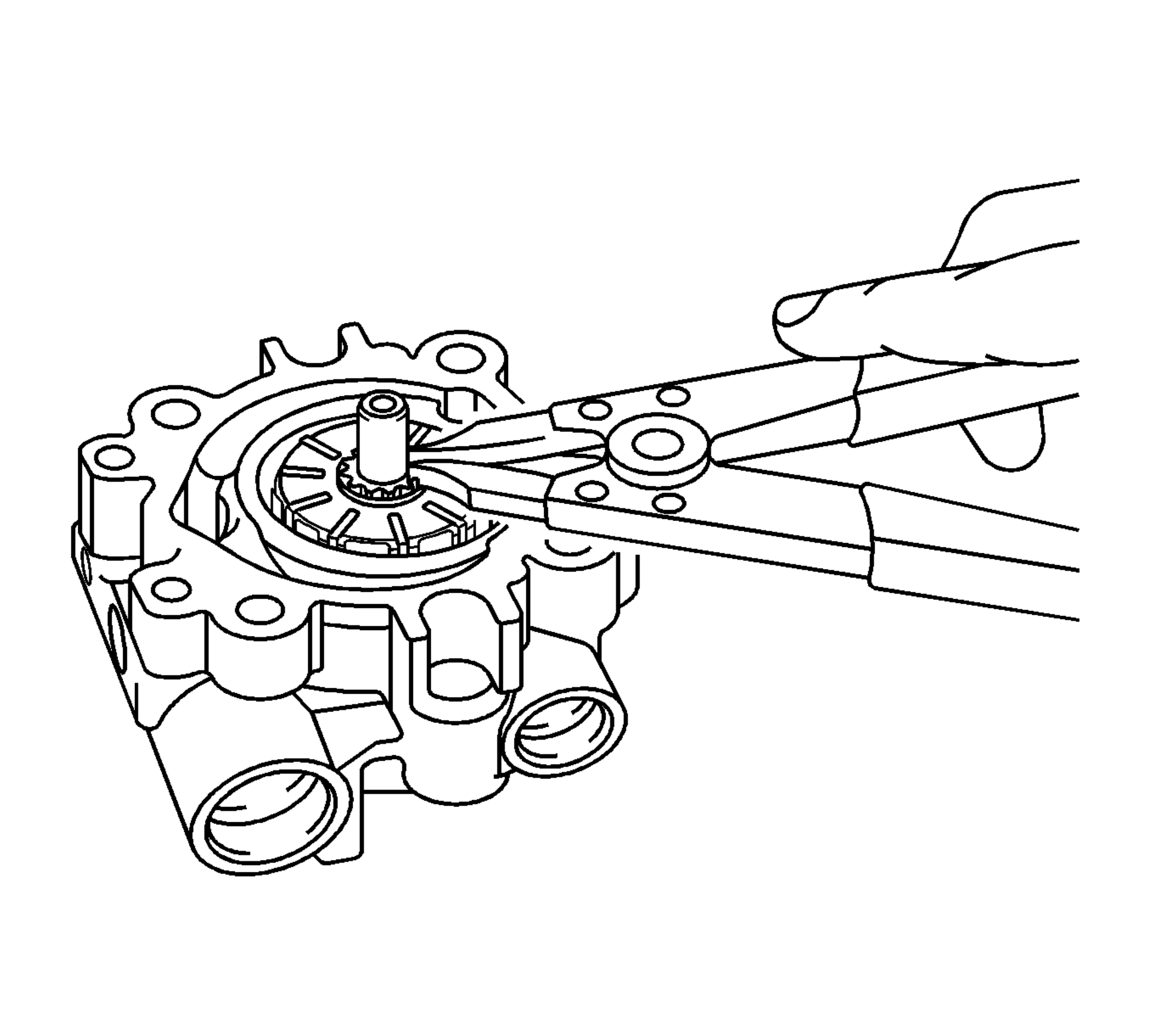

    12. Fig 2: Retainer Ring
    GM882808Courtesy of GENERAL MOTORS CORP.
  12. Remove the retainer ring from the pump shaft.

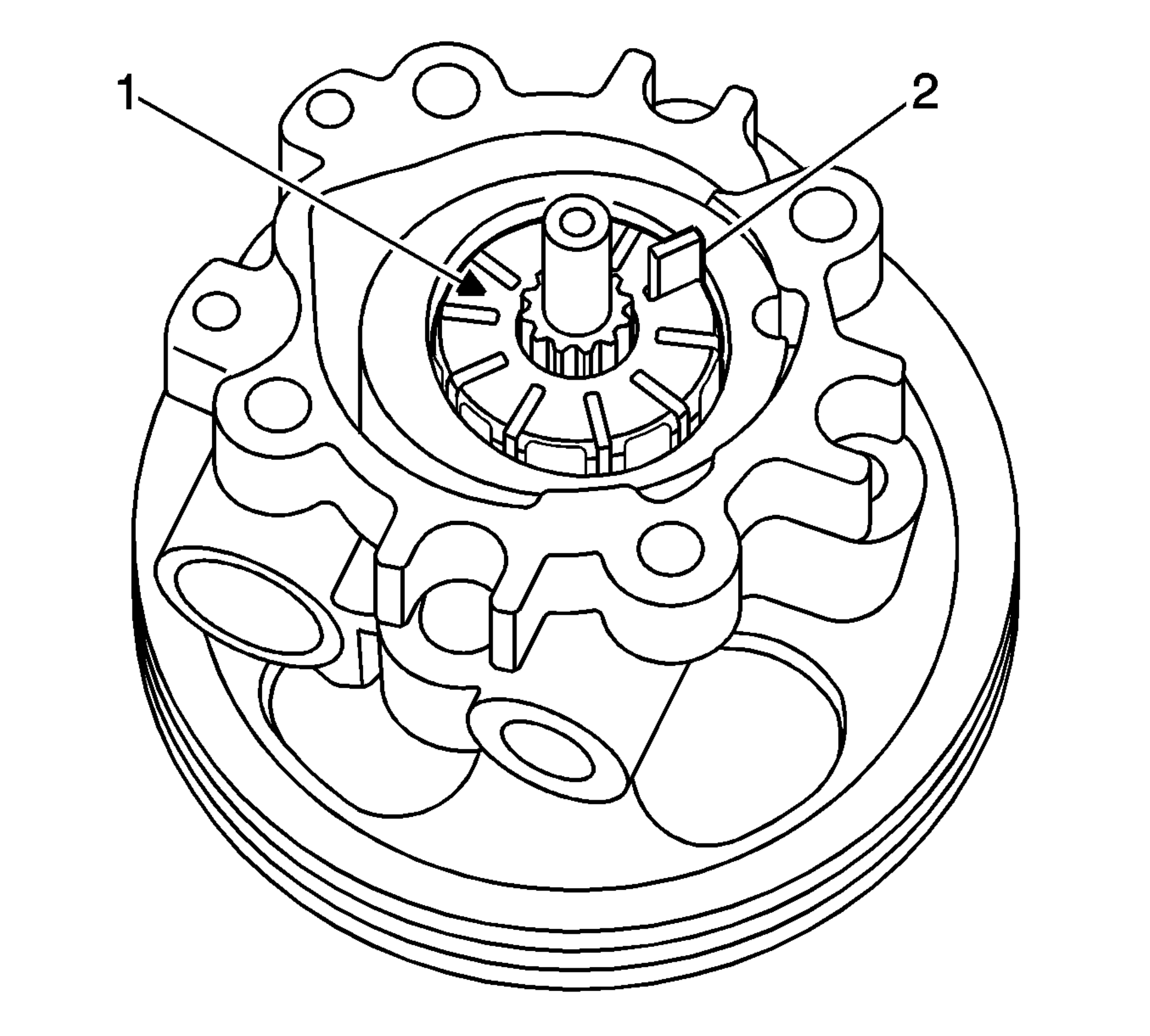

    13. Fig 3: Pump Rotor And Pump Vanes
    GM882795Courtesy of GENERAL MOTORS CORP.
  13. Remove the pump vanes (2) and the pump rotor (1).

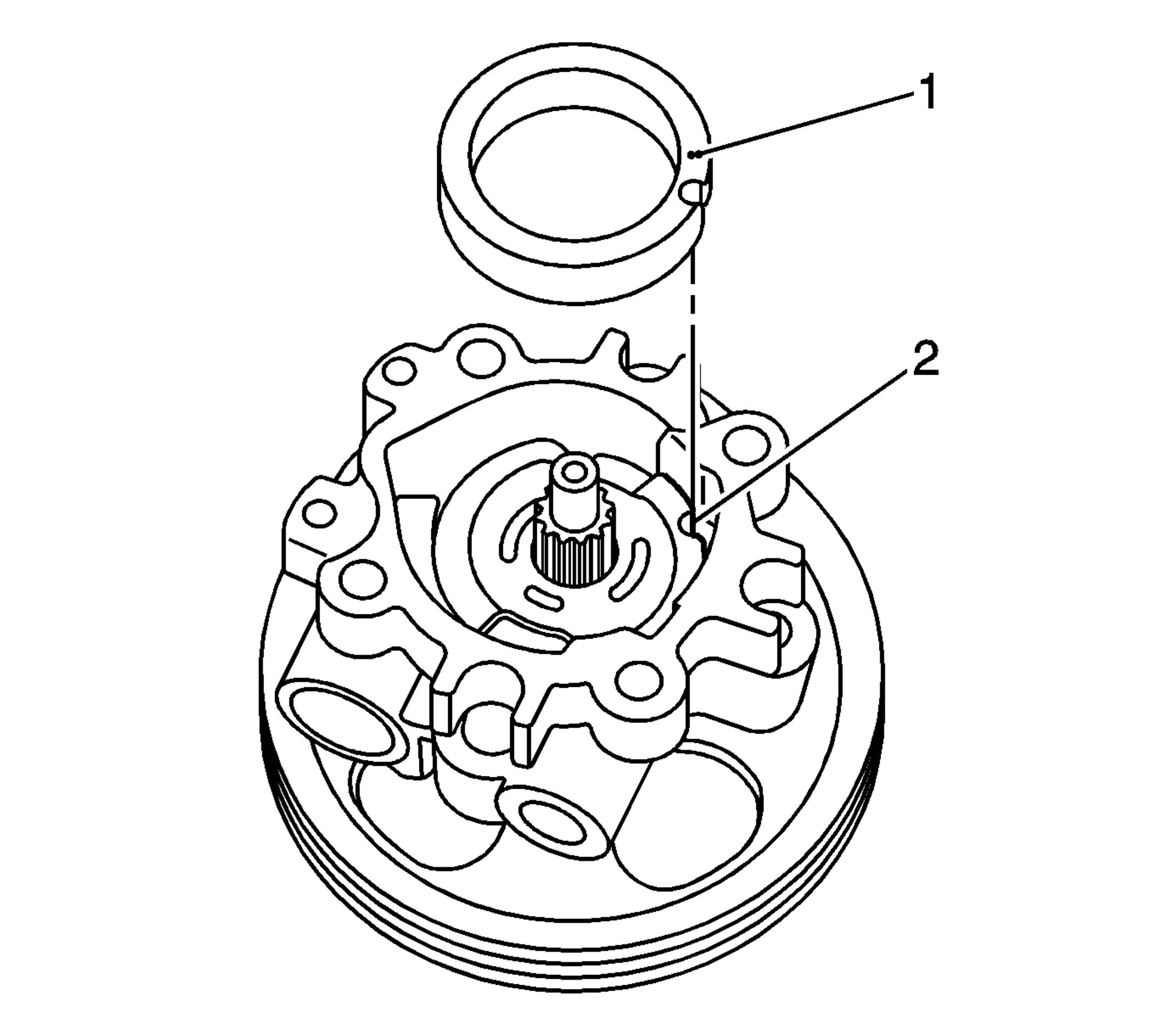

    14. Fig 4: Front Housing And Pump Ring
    GM882788Courtesy of GENERAL MOTORS CORP.
  14. Remove the pump ring (1).
  15. Remove the pulley and the pump shaft from the front housing.

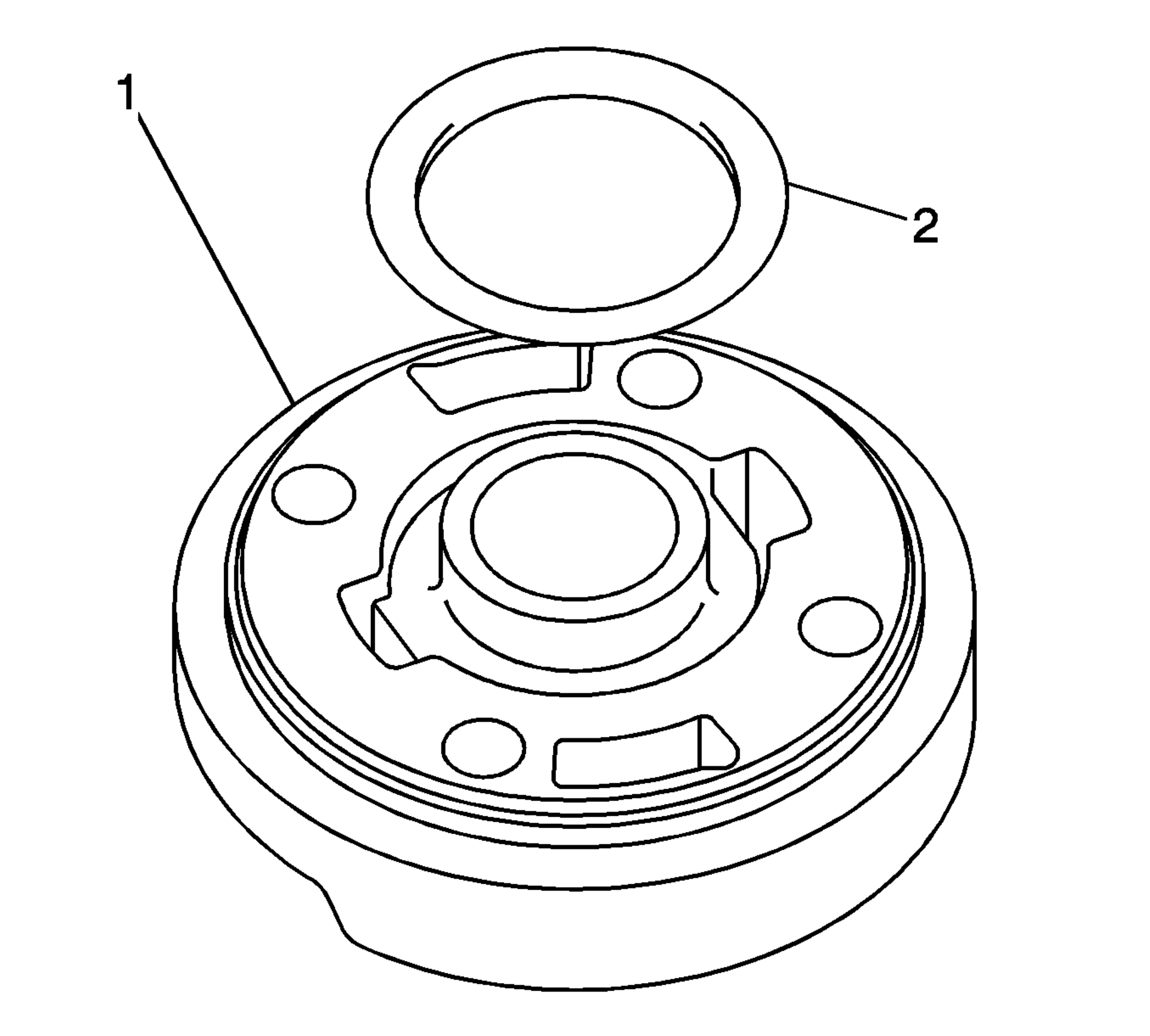

    16. Fig 5: Small Plate Seal And Pump Plate
    GM881947Courtesy of GENERAL MOTORS CORP.
  16. Remove the pump plate (1).
  17. Remove the small plate seal (2).

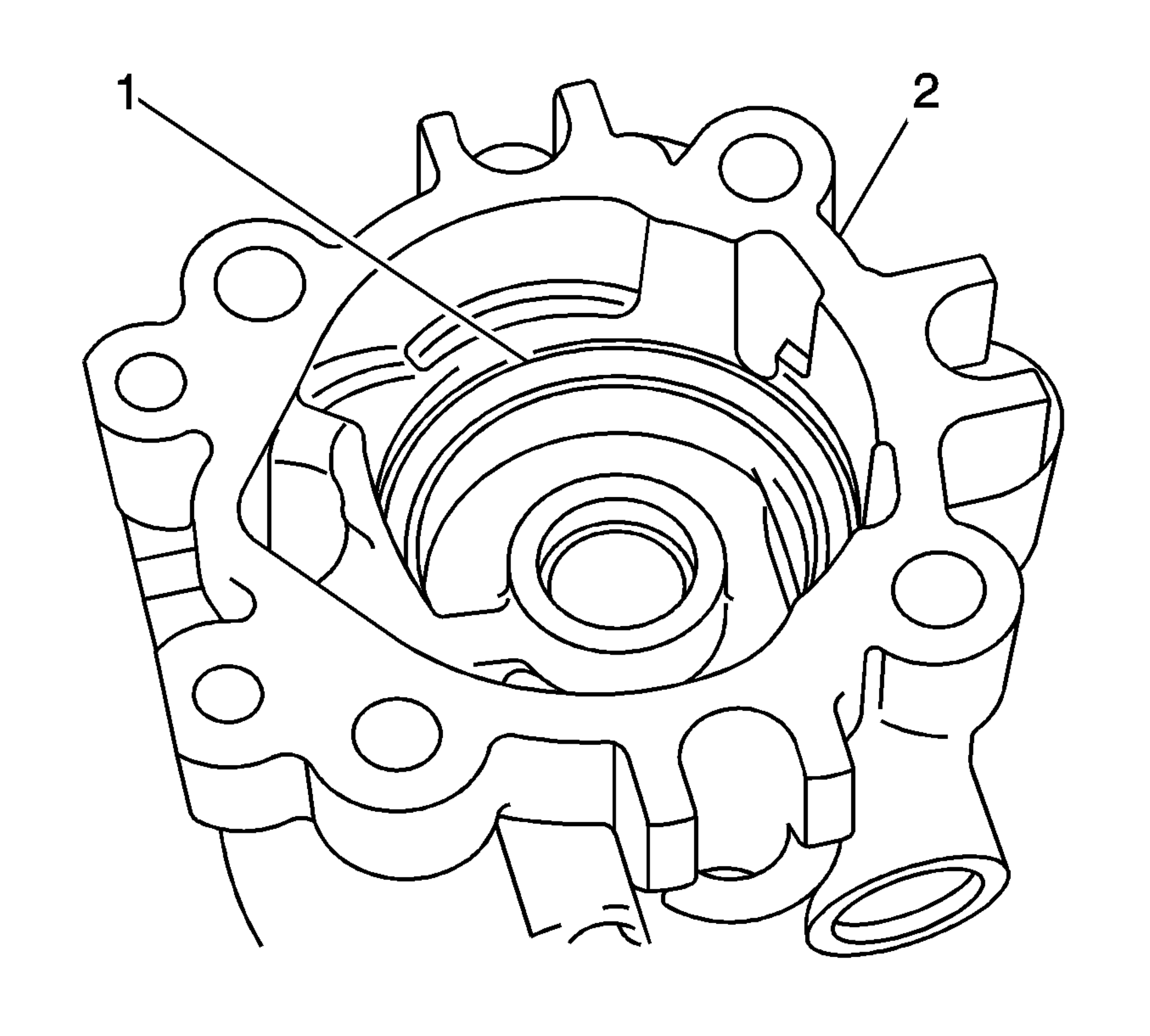

    18. Fig 6: Front Seal And Large Plate Seal
    GM881950Courtesy of GENERAL MOTORS CORP.
  18. Remove the large plate seal (1).

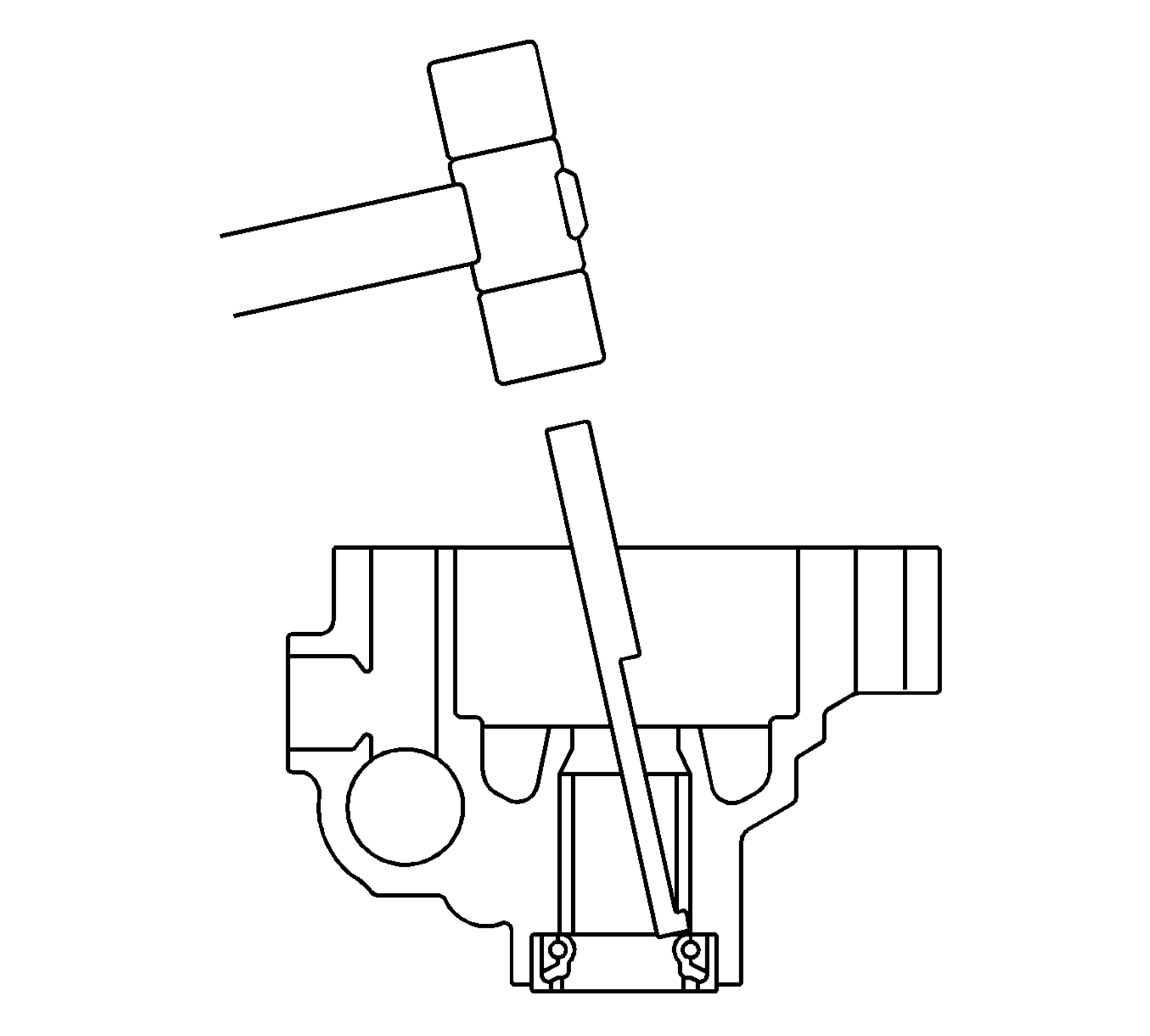

    19. Fig 7: Pump Shaft Seal From Housing
    GM881952Courtesy of GENERAL MOTORS CORP.
  19. Remove the pump shaft seal from the front housing.
