Audio/Video Disc Player Adapter Replacement
WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console compartment bezel. Refer to Front Floor Console Compartment Bezel Replacement . |
|

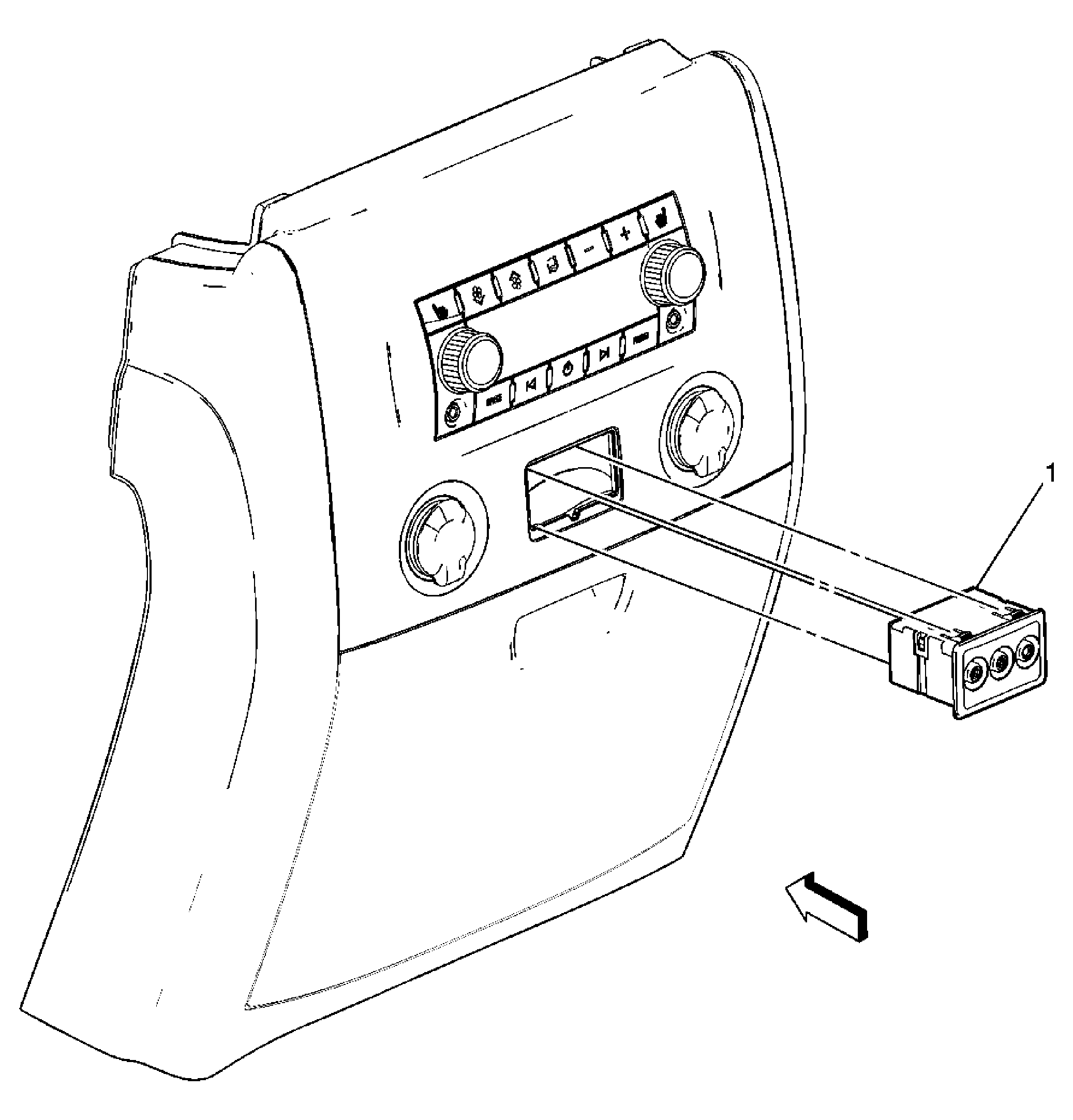

| 1 | Audio/Video Disc Player Adapter Assembly Procedure: Depress the four tabs and remove from the end panel. |
