Stop Lamp Switch Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

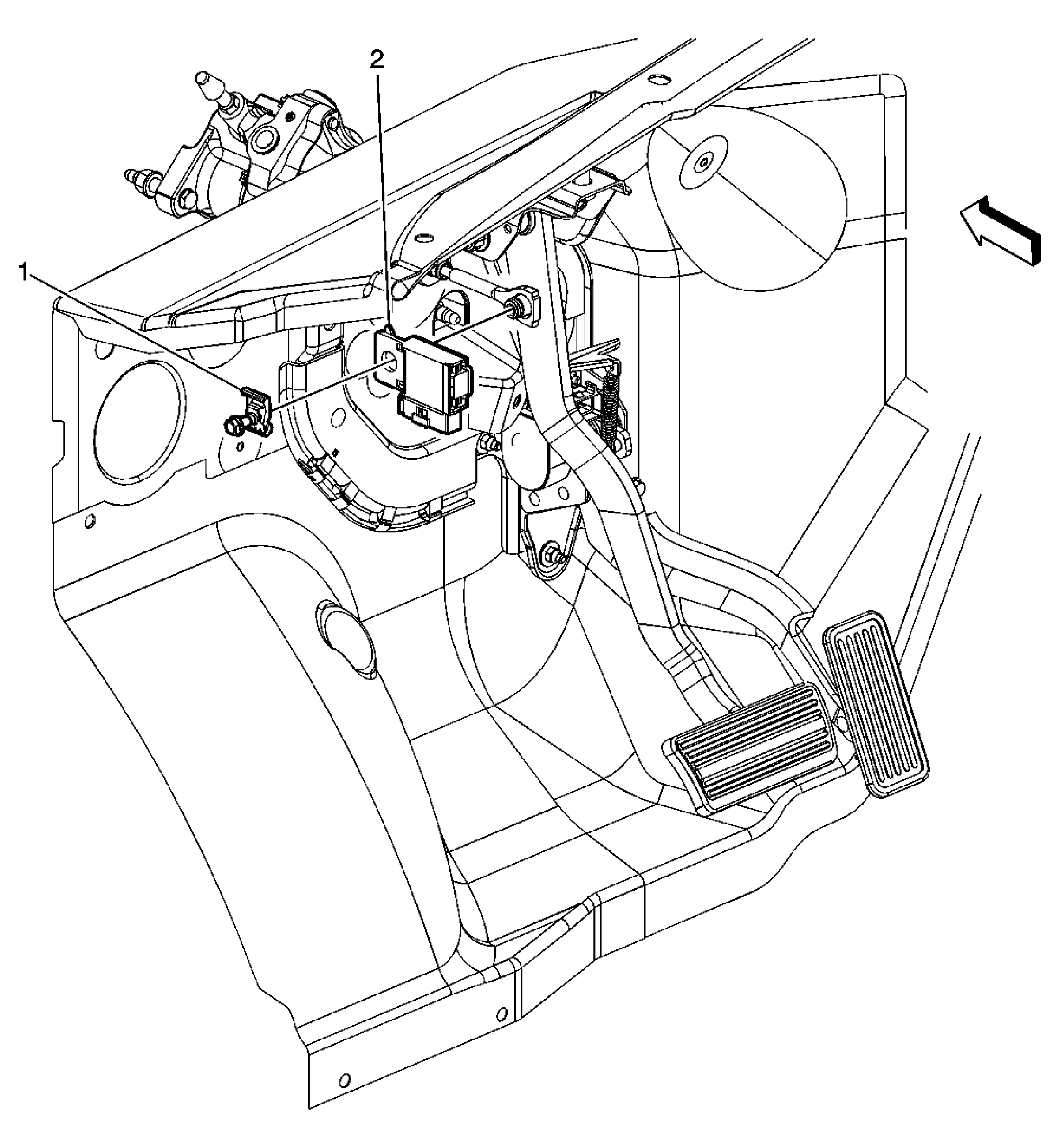

Fig 1: Stop Lamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Pedal Push Rod Retainer NOTE: Refer to Fastener Notice . Tighten: 10 N.m (89 lb in)
2	Stop Lamp Switch Assembly Procedure: Disconnect the electrical connector.
