Headlamp Switch Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

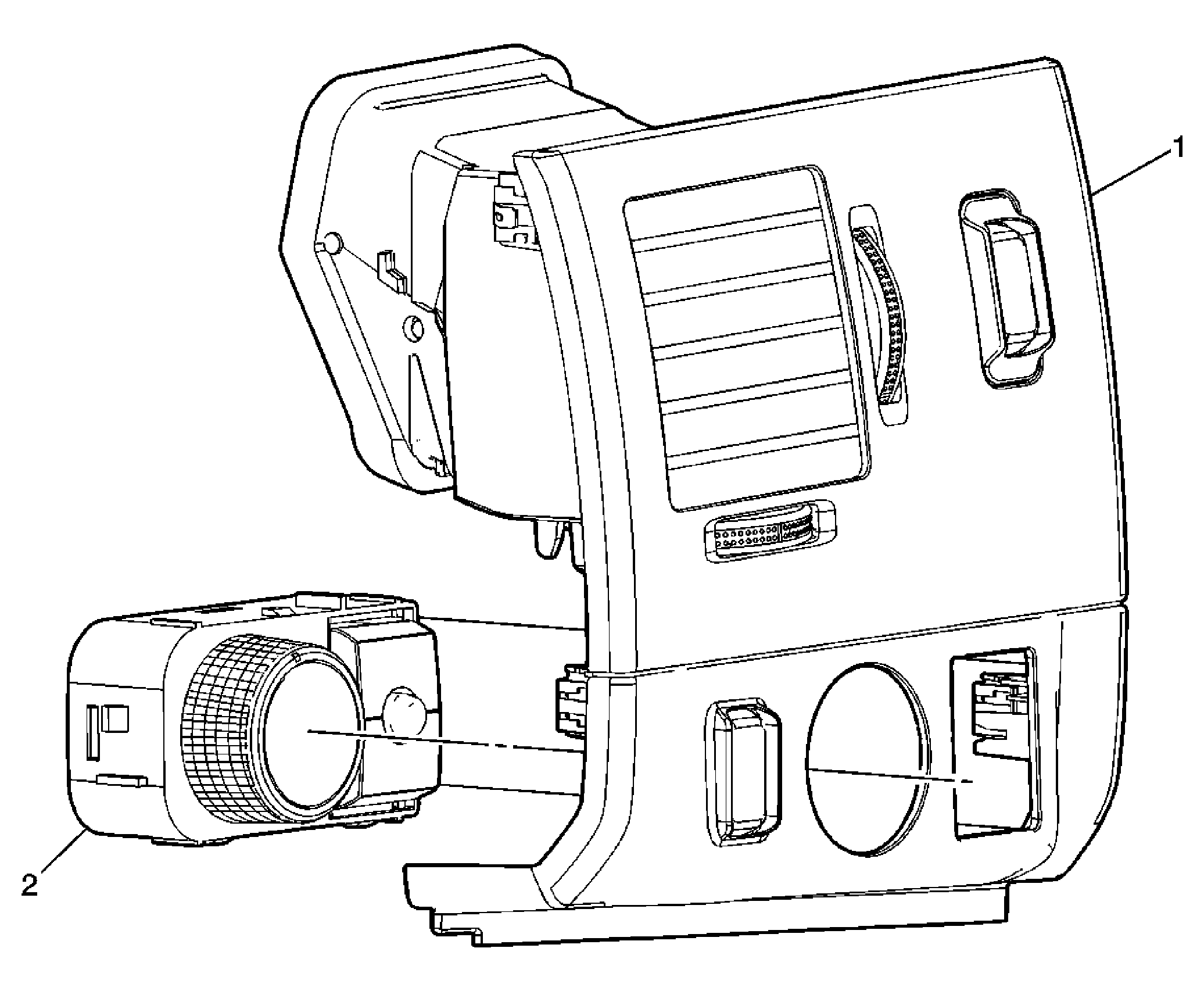

Fig 1: Headlamp Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Left Air Outlet Bezel Assembly Refer to Instrument Panel Outer Air Outlet Bezel Replacement - Left Side .
2	Headlamp Switch Assembly Procedure: Unsnap the switch assembly from the left air outlet bezel.
