Ambient Light Sensor Replacement

WARNING: This page is about a different car, the 2008 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

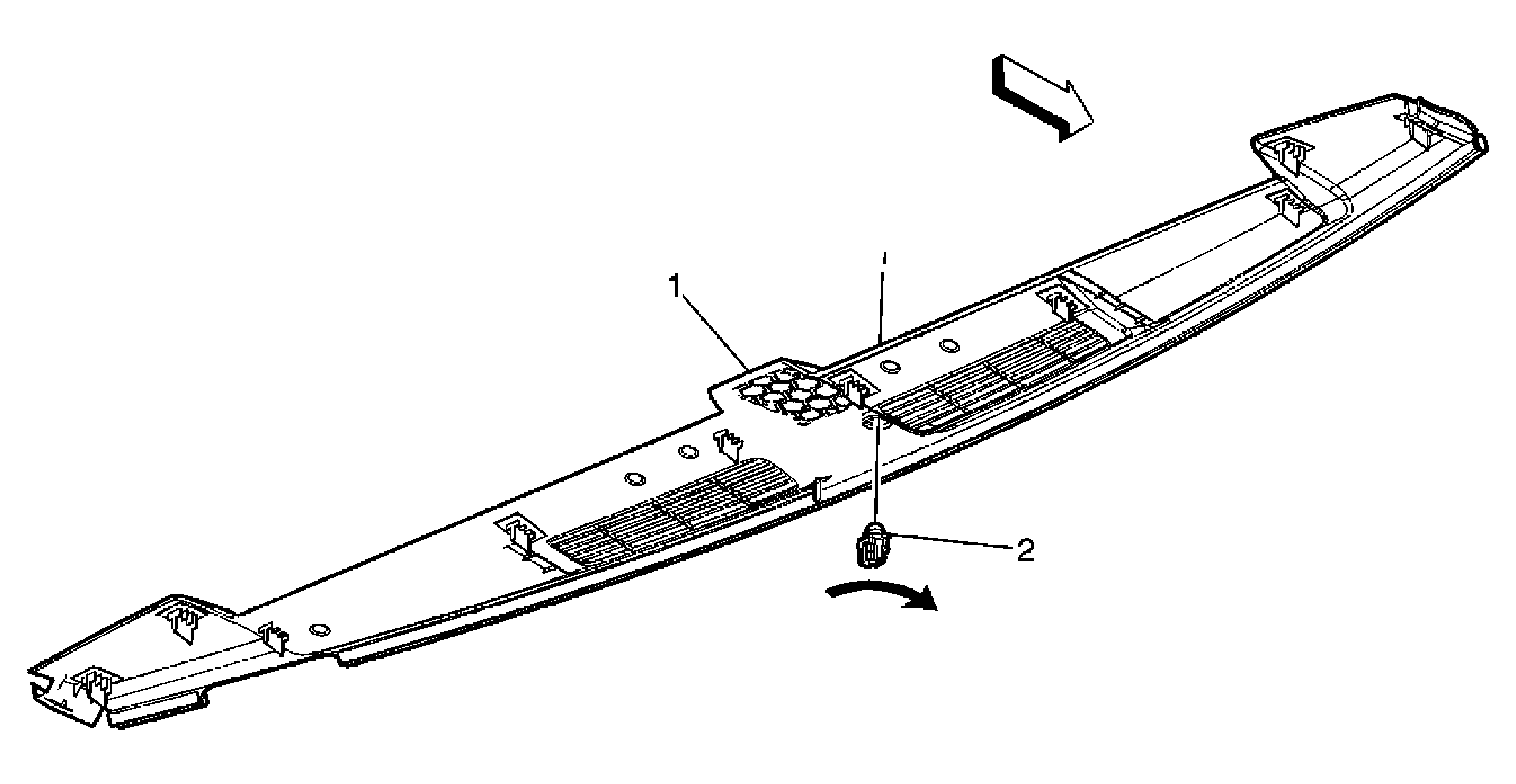

Fig 1: Ambient Light Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Upper Trim Panel Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .
2	Headlamp Automatic Control Ambient Light Sensor Assembly Procedure Twist and pull down to remove. Disconnect electrical connector.

Callout

Component Name

Instrument Panel Upper Trim Panel
Refer to Instrument Panel Upper Trim Panel with Windshield Defroster Nozzle Grille Replacement .

Headlamp Automatic Control Ambient Light Sensor Assembly

Procedure

Twist and pull down to remove.
Disconnect electrical connector.
