Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
  1. Read the registered transmitter identification (ID) numbers. Write down the numbers in order to aid the re-registration of the ID numbers in the new tire pressure indicator module. Refer to Tire Pressure Sensor Learn .
  2. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  3. Remove the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .

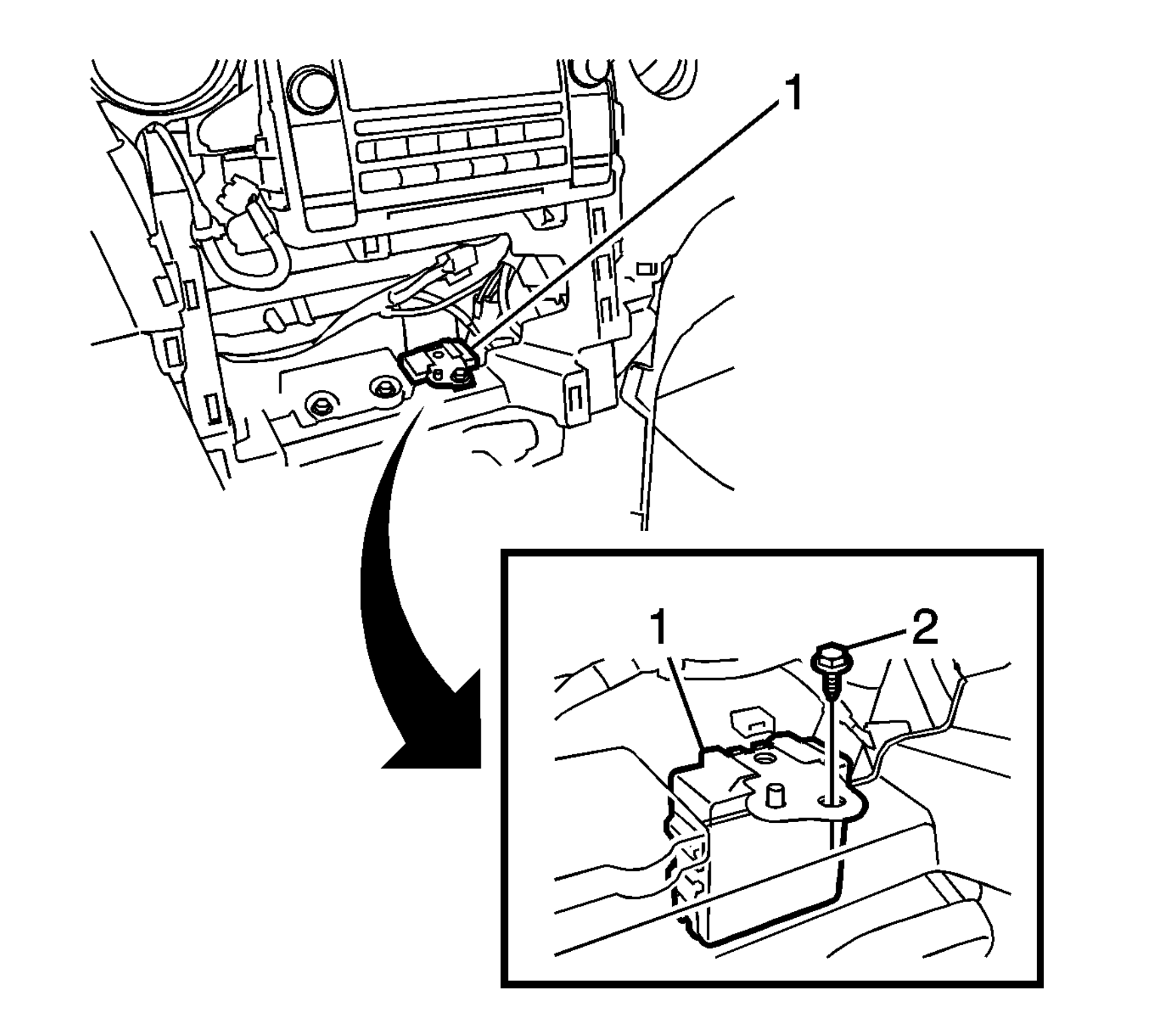

    4. Fig 1: Exploded View Of Tire Pressure Indicator Module Screw
    GM2013311Courtesy of GENERAL MOTORS CORP.
  4. Remove the screw (2) from the tire pressure indicator module (1).
    5. Fig 2: View Of Low Tire Pressure Indicator Module Connector
    GM2013312Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the connector (1).
  6. Remove the tire pressure indicator module.
