Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

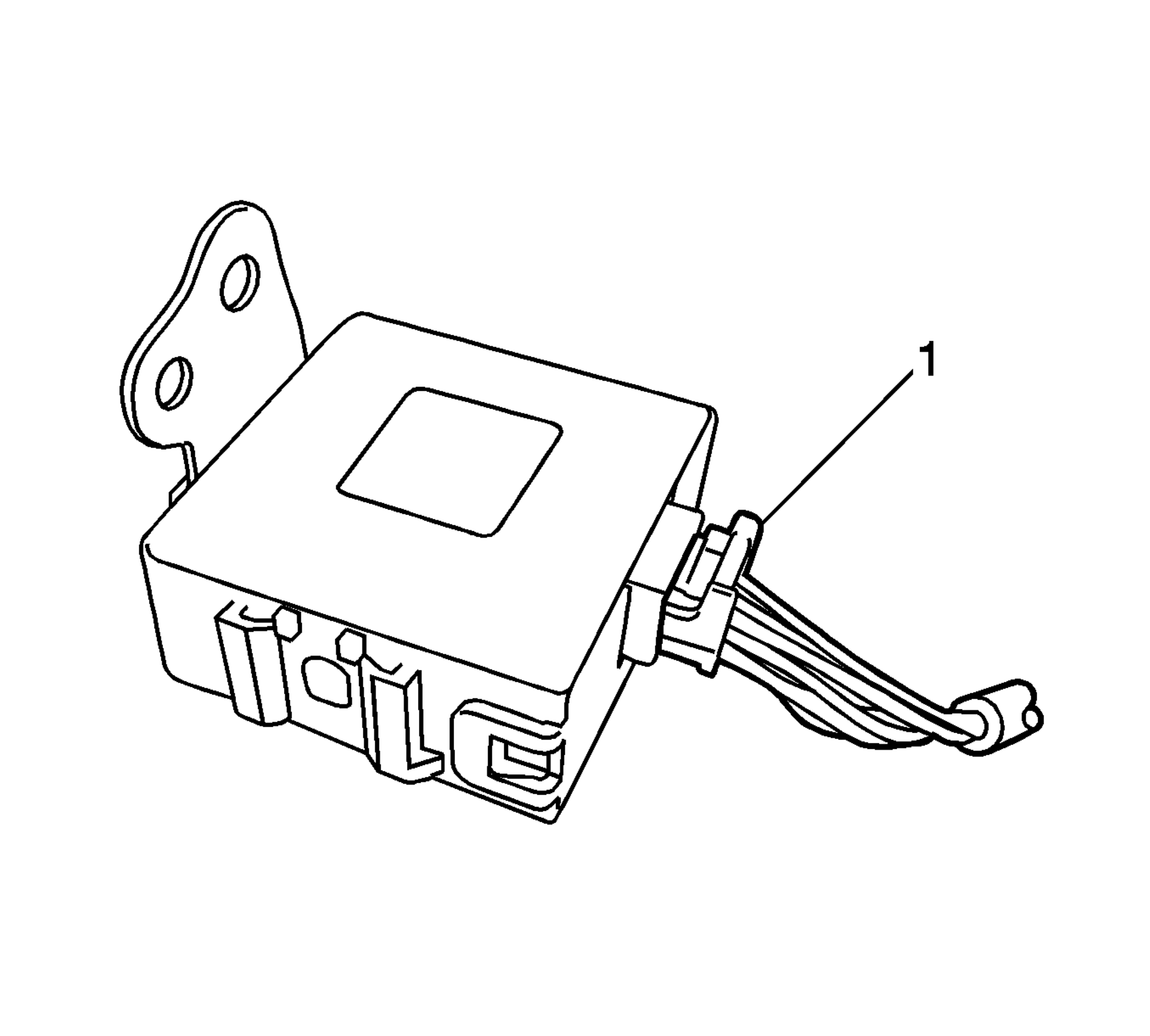

    Fig 1: View Of Low Tire Pressure Indicator Module Connector
    GM2013312Courtesy of GENERAL MOTORS CORP.
  1. Connect the connector (1) to the tire pressure indicator module.

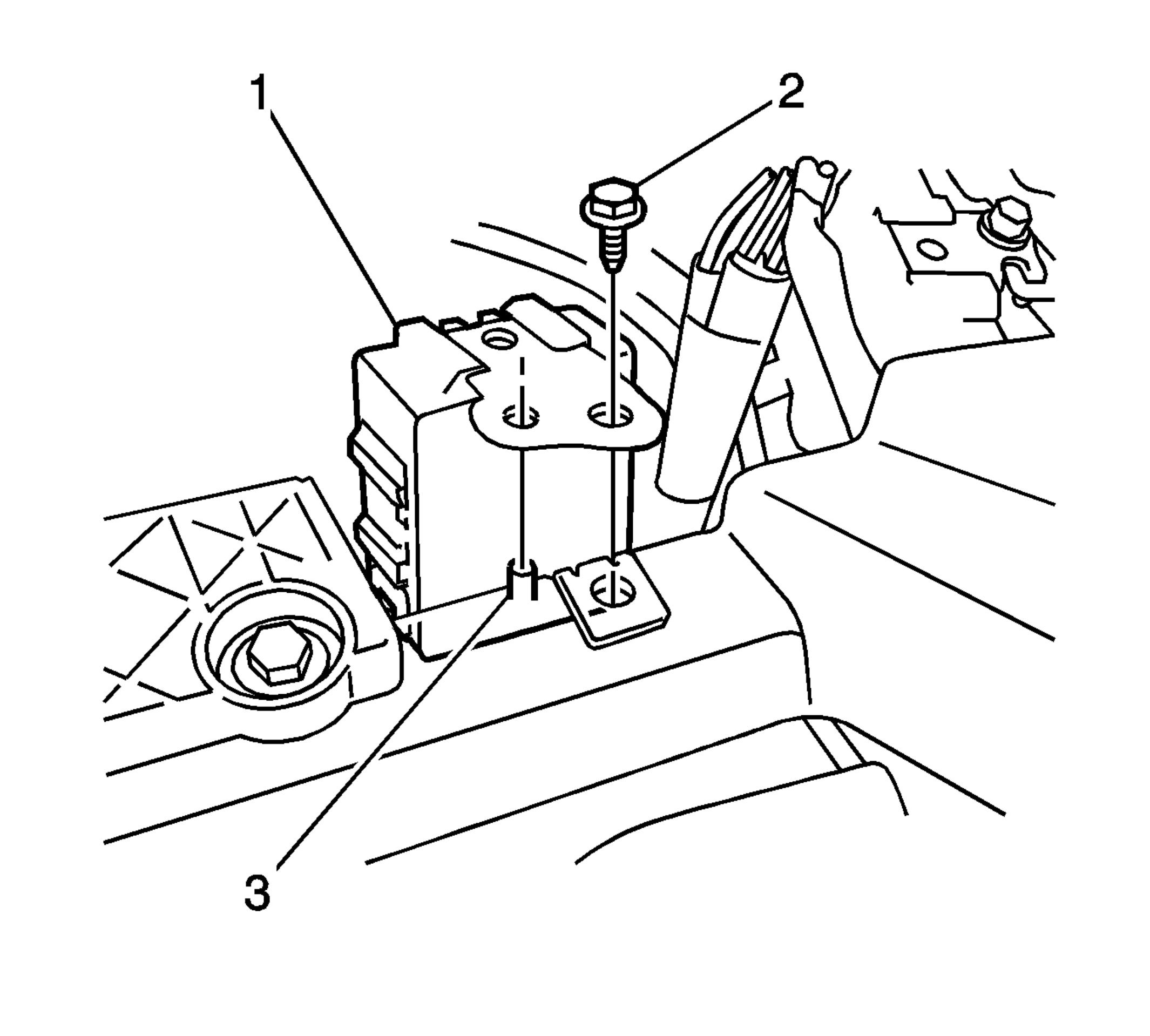

    2. Fig 2: Identifying Pin, Tire Pressure Indicator Module, Tire Pressure Indicator Module & Screw
    GM2013314Courtesy of GENERAL MOTORS CORP.
  2. Engage the pin (3) into the hole and install the tire pressure indicator module (1).
  3. Install the screw (2) to the tire pressure indicator module.
  4. Install the heater and air conditioning control. Refer to Heater and Air Conditioning Control Replacement .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  6. Measure the tire pressure of each of the tires. Adjust the tire pressure to the specification on the tire placard, if necessary.
  7. Register the transmitter ID numbers in the tire pressure indicator module. Refer to Tire Pressure Sensor Learn .
  8. Configure the system. Refer to Tire Pressure Monitor System Configuration .
