Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

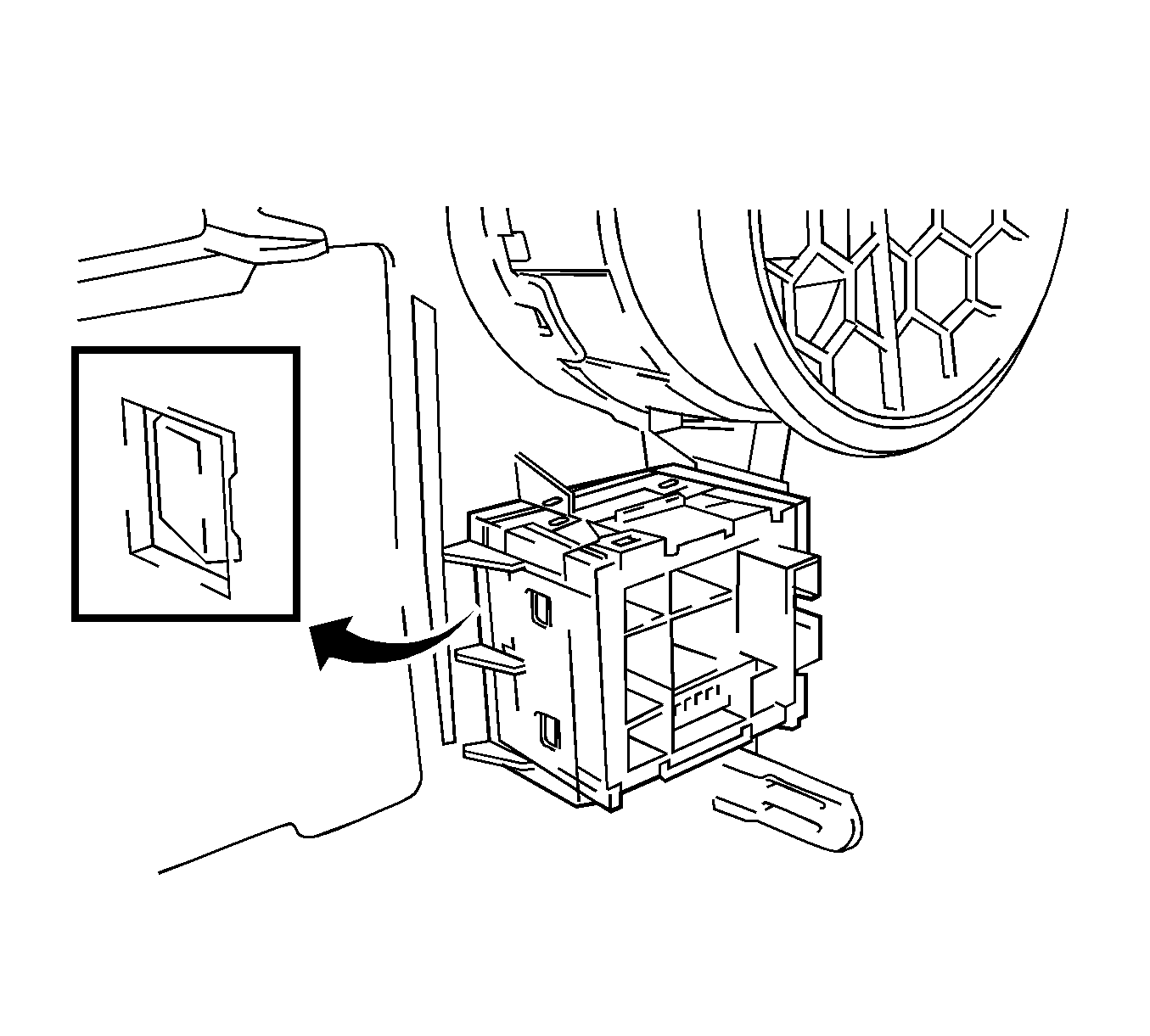

    Fig 1: Identifying Information Center Telltale Assembly Claws
    GM2032100Courtesy of GENERAL MOTORS CORP.
  1. Engage the 4 claws and install the telltale light assembly.
  2. Install the center instrument trim. Refer to Instrument Panel Center Trim Panel Replacement .
