Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

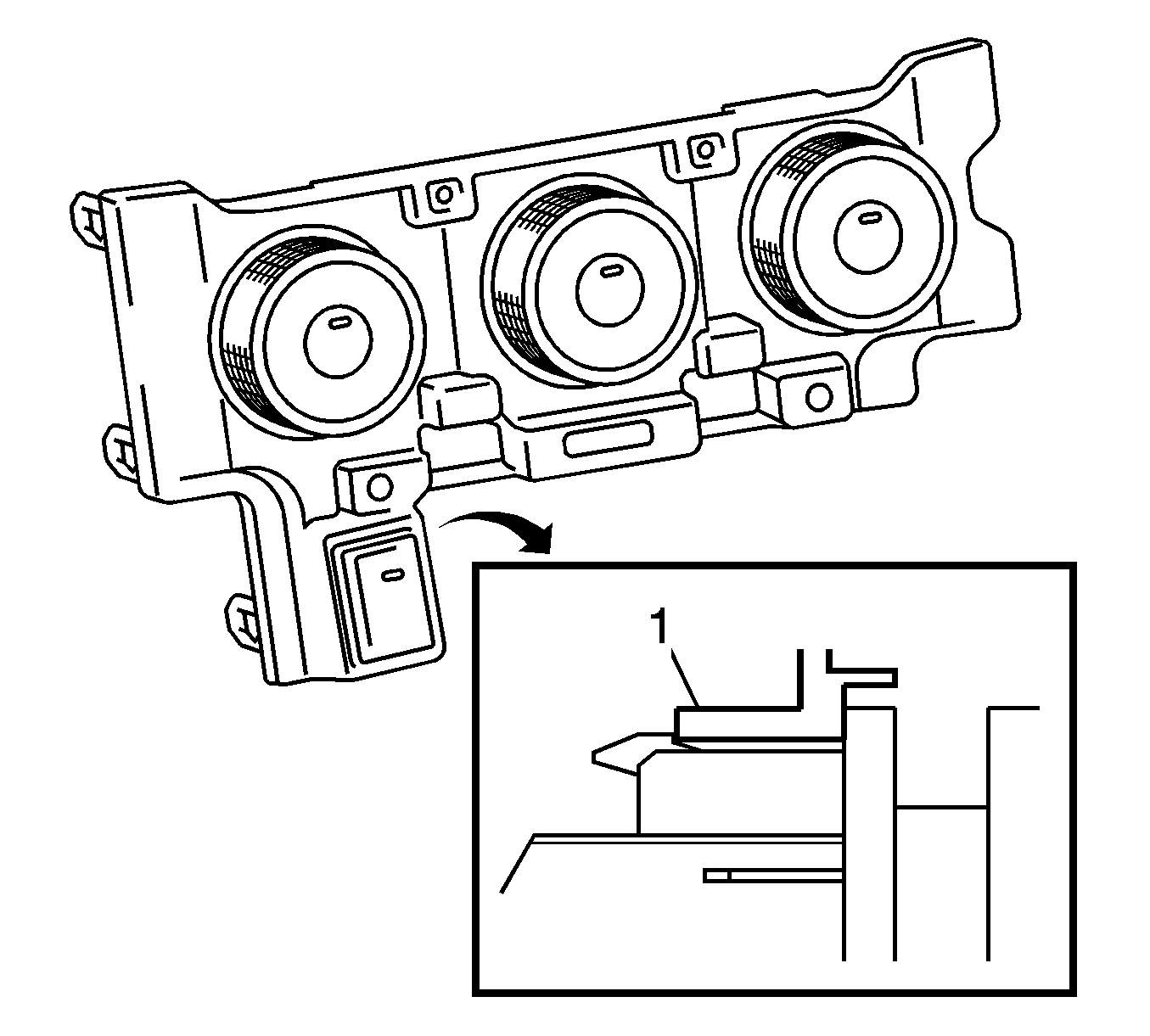

    Fig 1: Removing/Installing Main Switch Assembly
    GM2033229Courtesy of GENERAL MOTORS CORP.
  1. Engage the 2 claws and install the main switch assembly.
  2. Install the heating and air conditioning control panel. Refer to Heater and Air Conditioning Control Replacement .
