Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

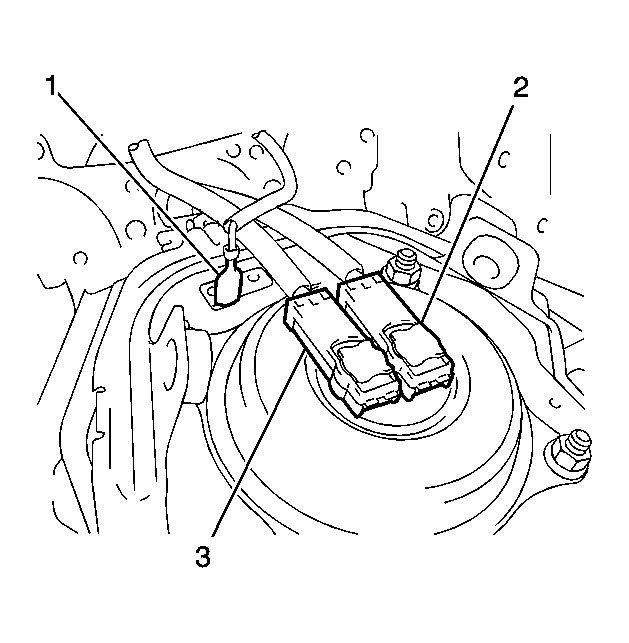

    Fig 1: Identifying Steering Wheel Module & Connector Position Assurances
    GM2022851Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR WARNING .
  1. Connect the steering wheel module connectors (2).
  2. Connect the connector position assurances (3) to the inflator module.
  3. Install the steering wheel module.

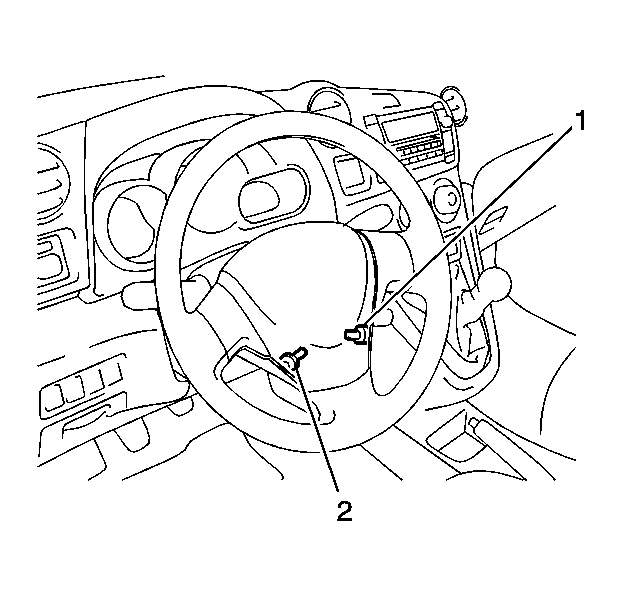

    4. Fig 2: Identifying Steering Wheel Module Bolts
    GM2022831Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER CAUTION .
  4. Install the bolts to the steering wheel module (1).

    Tighten:  Tighten the bolts to 8.8 N.m (78 lb in).

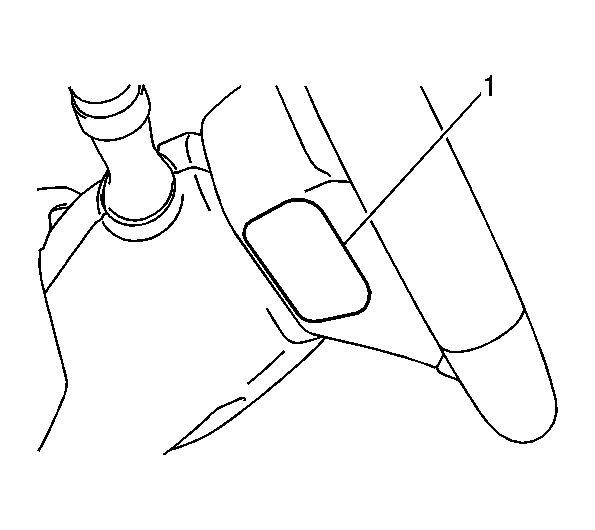

    5. Fig 3: Identifying Left Bolt Cover
    GM2022829Courtesy of GENERAL MOTORS CORP.
  5. Install the left bolt cover (1) from the steering wheel module.

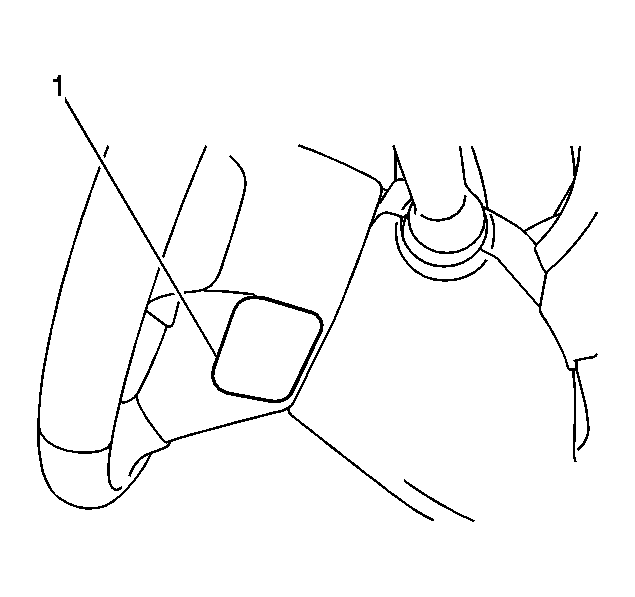

    6. Fig 4: Identifying Right Bolt Cover
    GM2022830Courtesy of GENERAL MOTORS CORP.
  6. Install the right bolt cover (1) from the steering wheel module.
  7. Enable the SIR system. Refer to SIR Disabling and Enabling .
