Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: Refer to SIR WARNING .
    IMPORTANT: In the event deployment has occurred, inspect the steering wheel module coil wire for any sign of scorching, melting, or other damage due to excessive heat. If the coil is damaged, replace it.
  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Place the front wheels in the straight ahead position.
  3. Remove the steering wheel from the steering column. Refer to Steering Wheel Replacement .
  4. Remove the steering column lower trim cover from the steering column. Refer to Steering Column Trim Covers Replacement .
  5. Remove the steering column upper trim cover from the steering column. Refer to Steering Column Trim Covers Replacement .
  6. Disconnect the steering wheel module coil electrical connector.

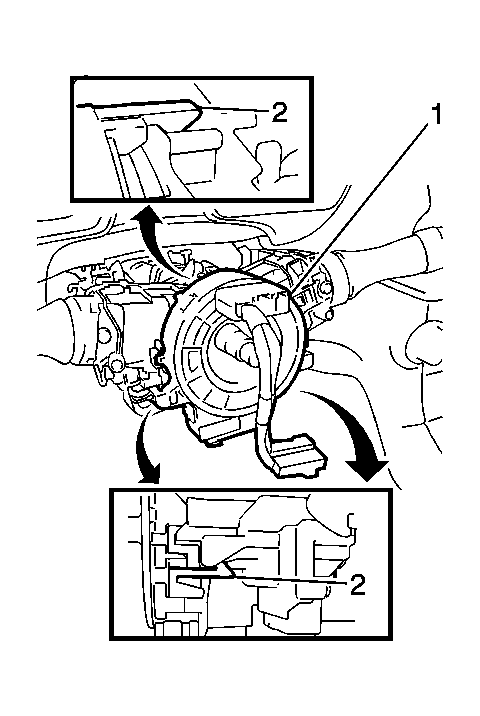

    7. Fig 1: Identifying Steering Wheel Module Coil Attachments
    GM2022864Courtesy of GENERAL MOTORS CORP.
  7. Release the 3 claws (2) and remove the steering wheel module coil (1) with the steering position sensor.
    8. Fig 2: Identifying Steering Wheel Module Coil & Components
    GM2022867Courtesy of GENERAL MOTORS CORP.
  8. Release the 6 claws (2) and 2 pins (1)and remove the steering position sensor (3) from the steering wheel module coil (4).
