Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

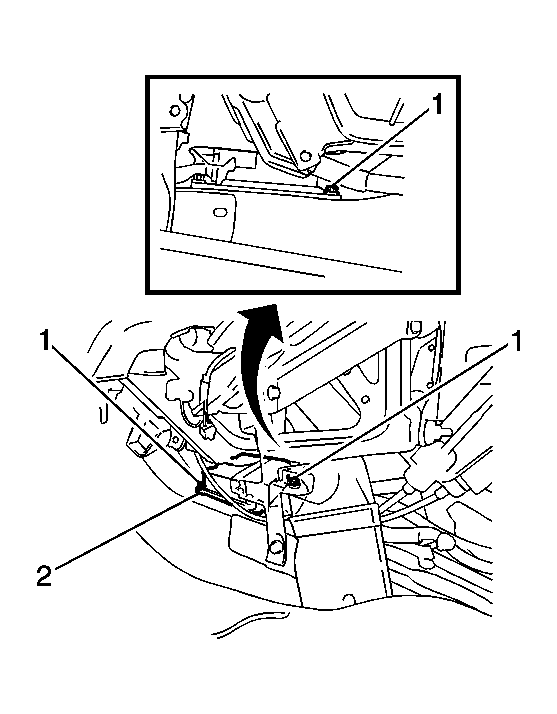

    Fig 1: Identifying SDM Fasteners
    GM2022909Courtesy of GENERAL MOTORS CORP.
  1. Install the SDM assembly (2) into the vehicle, taking care to ensure that the connectors are pointing toward the rear of the vehicle.
    2. NOTE: Refer to FASTENER CAUTION .
  2. Install the 3 SDM fasteners (1).

    Tighten:  Tighten the fasteners to 18 N.m (13 lb ft).

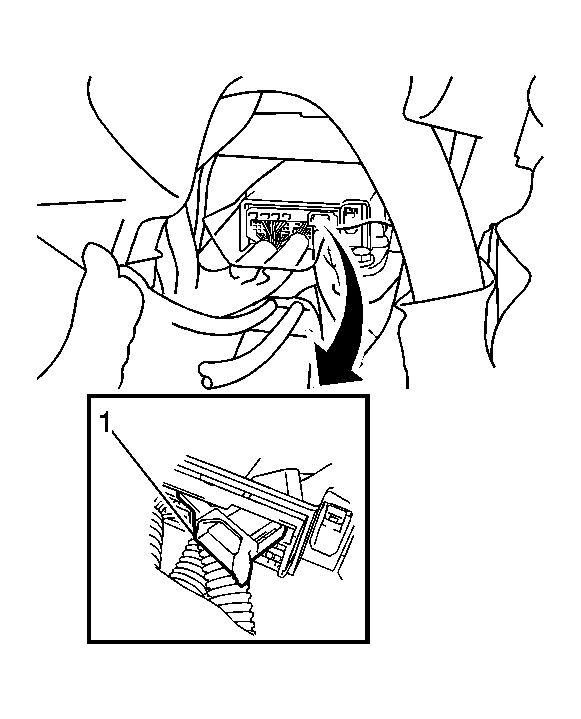

    3. Fig 2: Identifying SDM Connectors
    GM2022908Courtesy of GENERAL MOTORS CORP.
  3. Install the SDM electrical connectors.
  4. Install the console. Refer to Front Floor Console Replacement .
  5. Enable the SIR system. Refer to SIR Disabling and Enabling .
  6. Refer to Control Module References for programming and setup information.
