Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

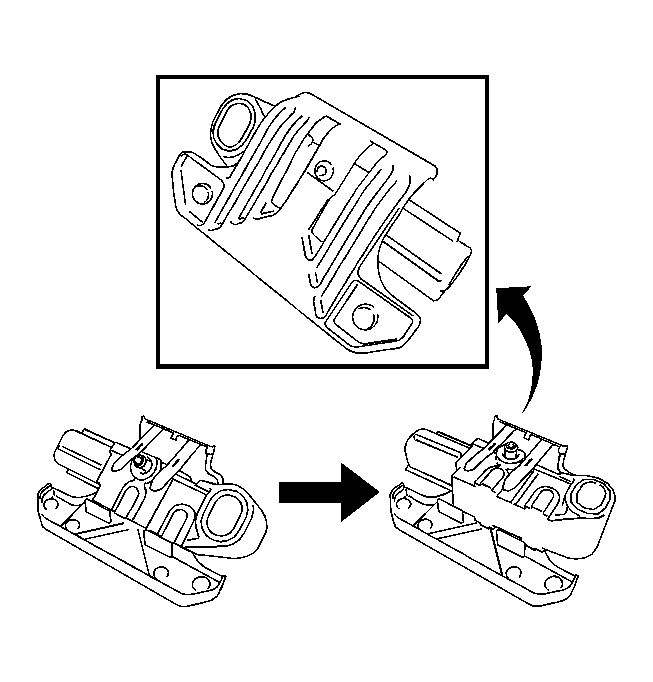

    Fig 1: View Of Seat Position Sensor Protector
    GM2022930Courtesy of GENERAL MOTORS CORP.
  1. Install the seat position sensor to the seat slide position sensor protector.

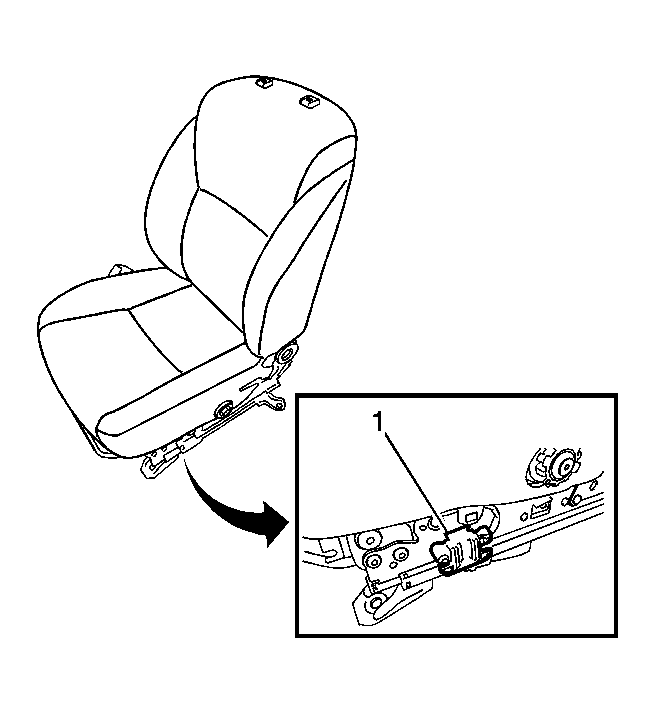

    2. Fig 2: Identifying Seat Position Sensor
    GM2022923Courtesy of GENERAL MOTORS CORP.
  2. Install the seat position sensor (1).
  3. Install the seat position sensor fastener.

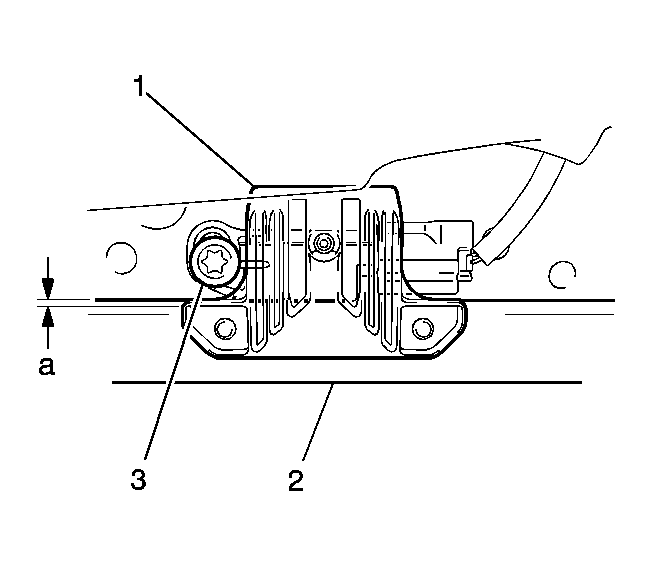

    4. Fig 3: Identifying Seat Position Sensor Fasteners
    GM2022929Courtesy of GENERAL MOTORS CORP.
  4. Insert a 1.3 mm (0.0512 in) feeler gage between the seat position sensor (1) and seat rail (2).
    5. NOTE: Refer to FASTENER CAUTION .
  5. Tighten the seat position sensor fastener.

    Tighten:  Tighten the seat position sensor fastener to 8 N.m (71 lb in).

    6. Fig 4: View Of Feeler Gage Between Seat Position Sensor & Seat Rail
    GM1463088Courtesy of GENERAL MOTORS CORP.
  6. Check that the clearance (A) between the seat position sensor (1) and seat rail (2) is 0.6 mm (0.023 in) to 2 mm (0.079 in).
  7. Connect the seat position sensor electrical connector.
  8. Install the front seat. Refer to Front Seat Replacement - Bucket .
