Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR WARNING .

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the headliner. Refer to Headlining Trim Panel Replacement .

Fig 1: Identifying Roof Rail Module Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Remove the roof rail module electrical connector.

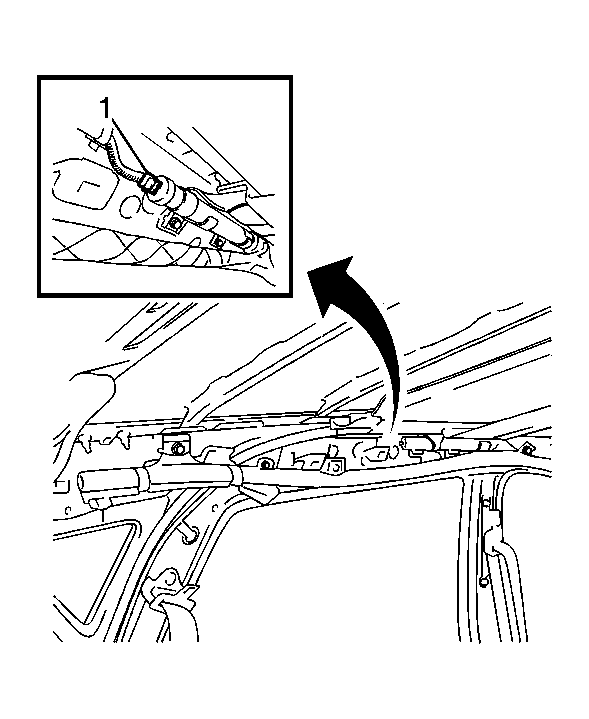

Fig 2: Identifying Roof Rail Module Pins

Courtesy of GENERAL MOTORS CORP.

Remove the roof rail module pins (1).

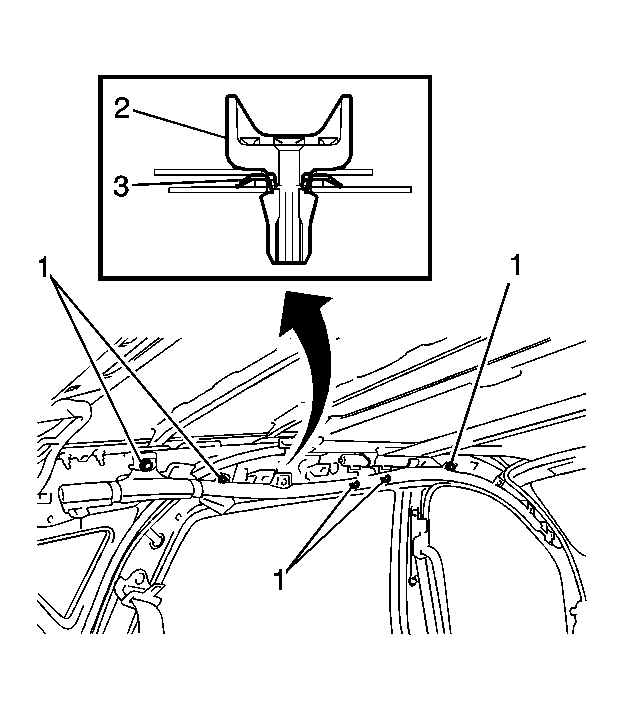

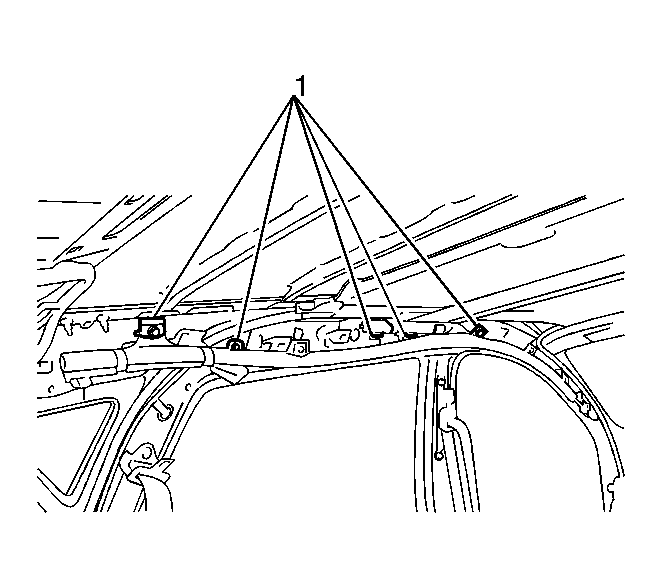

Fig 3: Identifying Roof Rail Module Bolts

Courtesy of GENERAL MOTORS CORP.

Remove the 5 roof rail module bolts (1).
Separate the roof rail module with the 4 spacers (3) and clips (2).

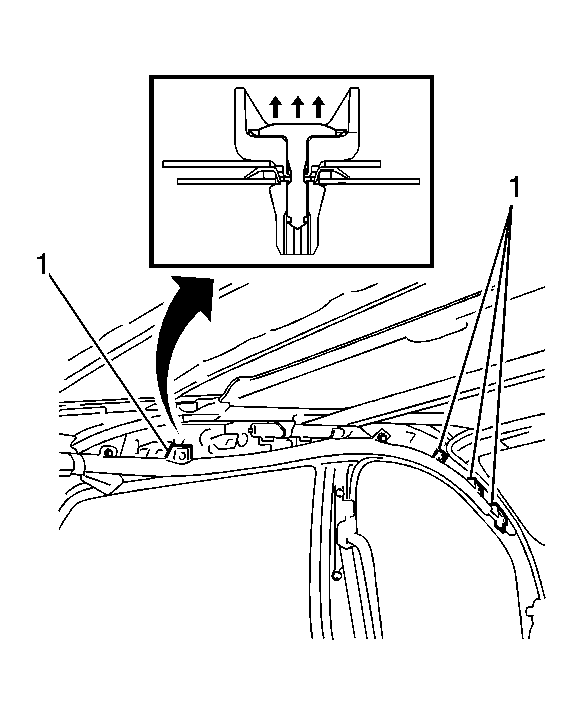

Fig 4: Identifying Roof Rail Module Hooks

Courtesy of GENERAL MOTORS CORP.

Disengage the 5 roof rail module hooks (1).
Remove the roof rail module.
