Removal Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Refer to SIR WARNING .

Disable the SIR system. Refer to SIR Disabling and Enabling .
Remove the upper instrument panel (I/P) pad. Refer to Instrument Panel Upper Trim Pad Replacement .

Fig 1: Identifying I/P Module Fasteners

Courtesy of GENERAL MOTORS CORP.

Remove the I/P module fasteners (1).

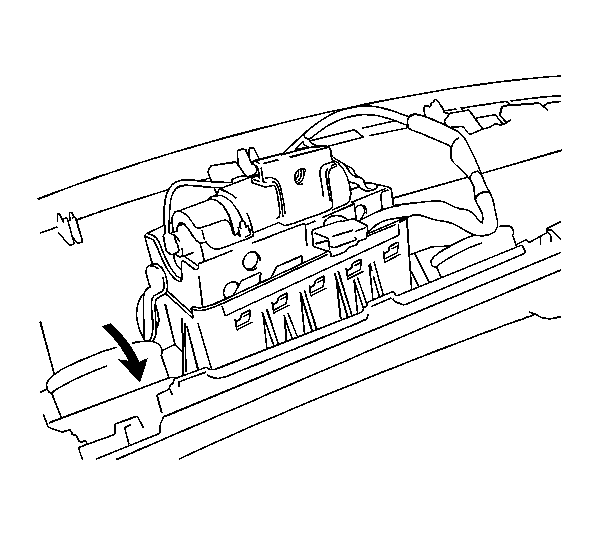

Fig 2: View Of Inflatable Restraint I/P Module Hooks

Courtesy of GENERAL MOTORS CORP.

Disengage the 5 hooks and remove the inflatable restraint I/P module as shown.
Fully deploy the module before disposal. If the module was replaced under warranty, fully deploy and dispose of the module after the required retention period. Refer to Inflator Module Handling and Scrapping .
