Installation Procedure

WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

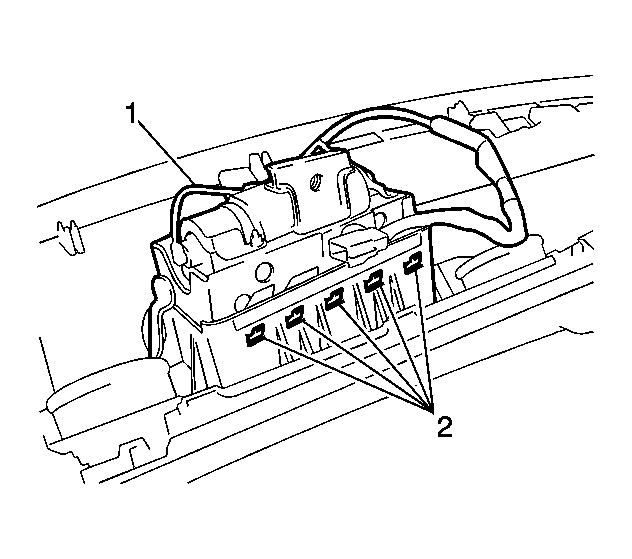

    Fig 1: View Of Inflatable Restraint I/P Module & Hooks
    GM2022878Courtesy of GENERAL MOTORS CORP.
  1. Install the inflatable restraint I/P module (1) and engage the 5 hooks (2).

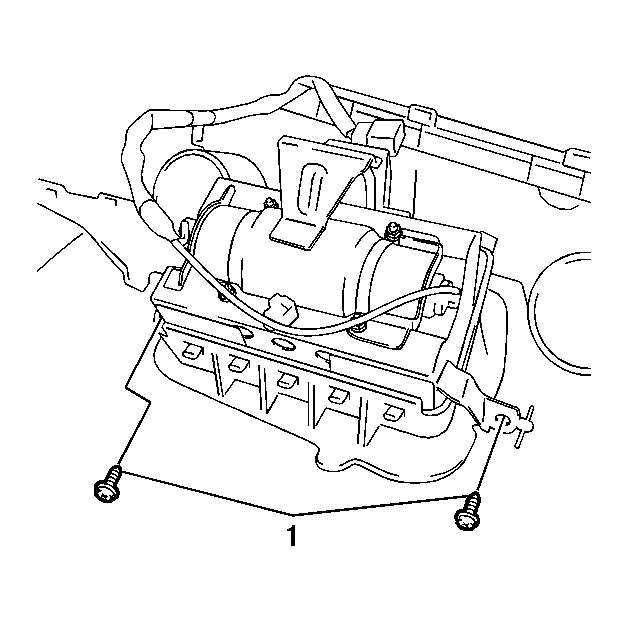

    2. Fig 2: Identifying I/P Module Fasteners
    GM2022875Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER CAUTION .
  2. Install the mounting fasteners (1) to the I/P module.
  3. Install the upper instrument panel (I/P) pad. Refer to Instrument Panel Upper Trim Pad Replacement .
  4. Enable the SIR system. Refer to SIR Disabling and Enabling .
