SIR Identification Views
WARNING: This page is about a different car, the 2009 Pontiac Vibe. However, it is still accessible from the selected car via links, so may be relevant.

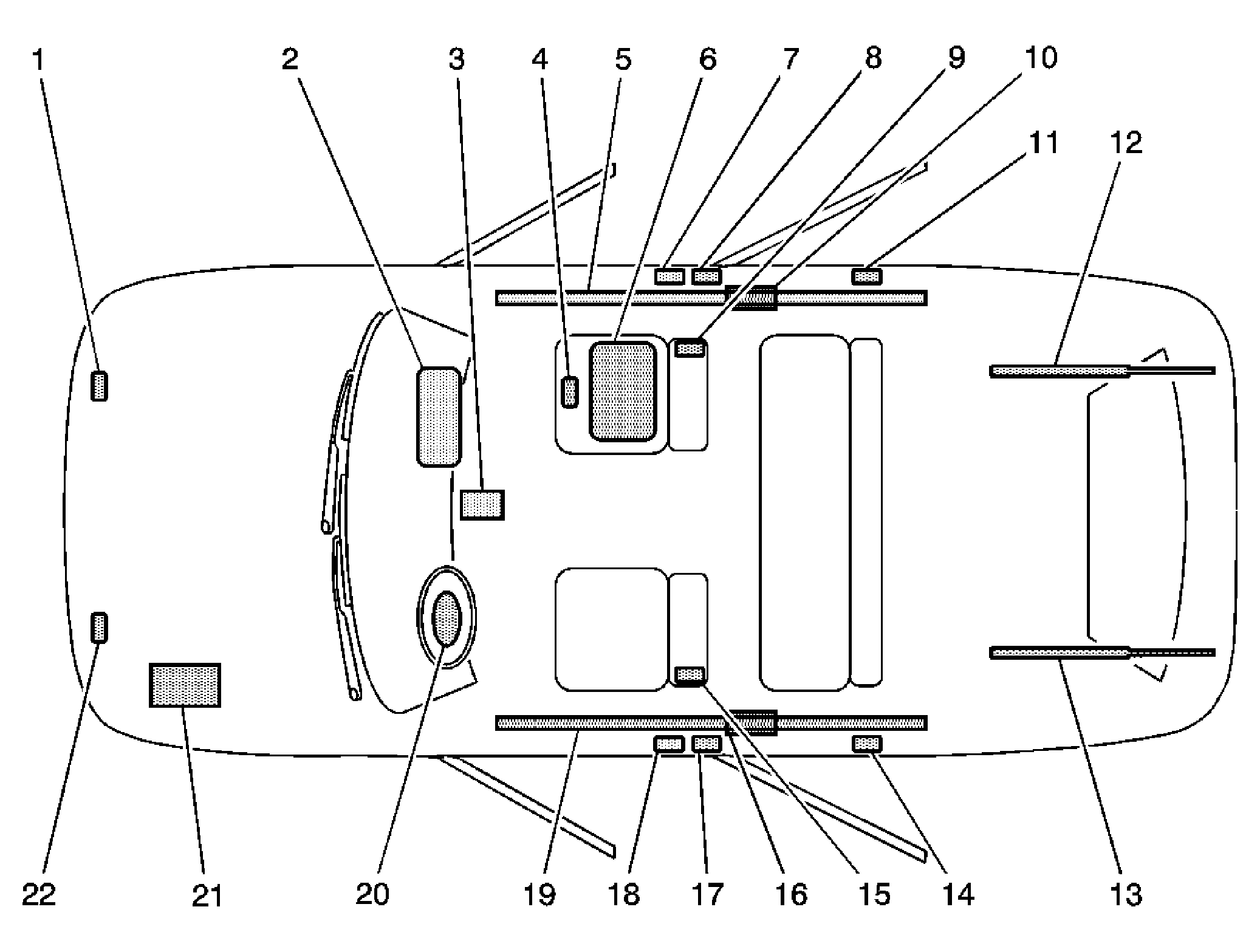

The SIR Identification Views shown below illustrate the approximate location of all SIR components available for the vehicle. This will assist in determining the appropriate SIR Disabling and Enabling for a given service procedure, refer to SIR Disabling and Enabling .
| Callout | Component Name |
|---|---|
| 1 | Right Front End Sensor-Located on the right front of the vehicle in the engine compartment |
| 2 | I/P Air Bag-Located at the top right under the instrument panel |
| 3 | Sensing and Diagnostic Module (SDM)-Located underneath the center console |
| 4 | Passenger Presence (PPS) Module-Located underneath the right front seat |
| 5 | Right Roof Rail Air Bag-Located under the headliner. extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 6 | Passenger Presence (PPS) Seat Sensor-Located underneath the right front seat cushion |
| 7 | Seat Belt Pretensioner-Located under the center pillar trim near the bottom |
| 8 | RH Front Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 9 | RF Side Impact Air Bag-Located on the seat back of passenger seat |
| 10 | Right Roof Rail Air Bag Inflator Module-Located under the headliner, at the top of the center pillar |
| 11 | RH Rear Side Impact Sensor (SIS)-Located behind the RH rear seat, near the wheelwell |
| 12 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the passenger side |
| 13 | Rear Compartment Lid Assist Rod-A gas shock is located under the rear trunk lid on the driver side |
| 14 | LH Rear Side Impact Sensor (SIS)-Located behind the LH rear seat, near the wheelwell |
| 15 | LF Side Impact Air Bag-Located on the seat back of driver seat |
| 16 | Laeft Roof Rail Air Bag Inflator Module-Located under the headliner, at the top of the center pillar |
| 17 | LH Front Side Impact Sensor (SIS)-Located under the center pillar trim near the bottom |
| 18 | Seat Belt Pretensioner-Located under the center pillar trim near the bottom |
| 19 | Right Roof Rail Air Bag-Located under the headliner. extending from the passenger front windshield pillar to the passenger rear windshield pillar |
| 20 | Steering Wheel Air Bag-Located on the steering wheel |
| 21 | Vehicle Battery-Located under the hood on the right side |
| 22 | Left Front End Sensor-Located on the left front of the vehicle in the engine compartment |
