Antilock Brake System Schematics

Fig 1: Antilock Brake System Schematic
GM1424567Courtesy of GENERAL MOTORS CORP.
Fig 2: Brake Pressure Modulator Valve (BPMV) Power and Ground (JL4)
GM1471193Courtesy of GENERAL MOTORS CORP.
Fig 3: Brake Pressure Modulator Valve (BPMV), Steering Angle Sensor, Yaw and Lateral Acceleration Sensor (JL4)
GM1471198Courtesy of GENERAL MOTORS CORP.
Fig 4: Brake Pressure Modulator Valve (BPMV), Powertrain Control Module (PCM) (JL4)
GM1471199Courtesy of GENERAL MOTORS CORP.
Fig 5: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module
GM1847864Courtesy of GENERAL MOTORS CORP.

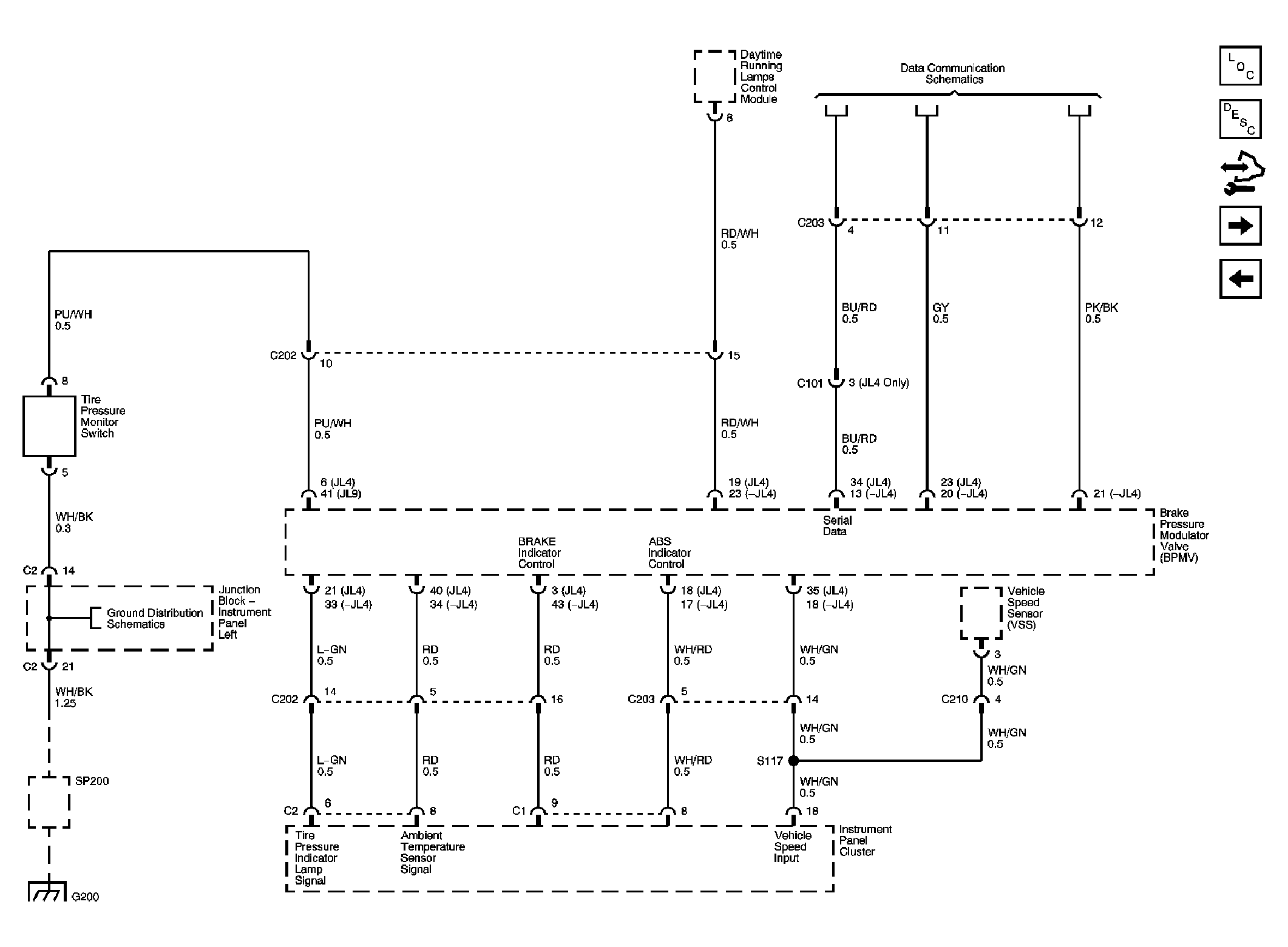

Fig 6: Brake Pressure Modulator Valve (BPMV), Tire Pressure Monitor Switch, Data Link Connector (DLC), Instrument Panel Cluster (IPC)
GM1847823Courtesy of GENERAL MOTORS CORP.

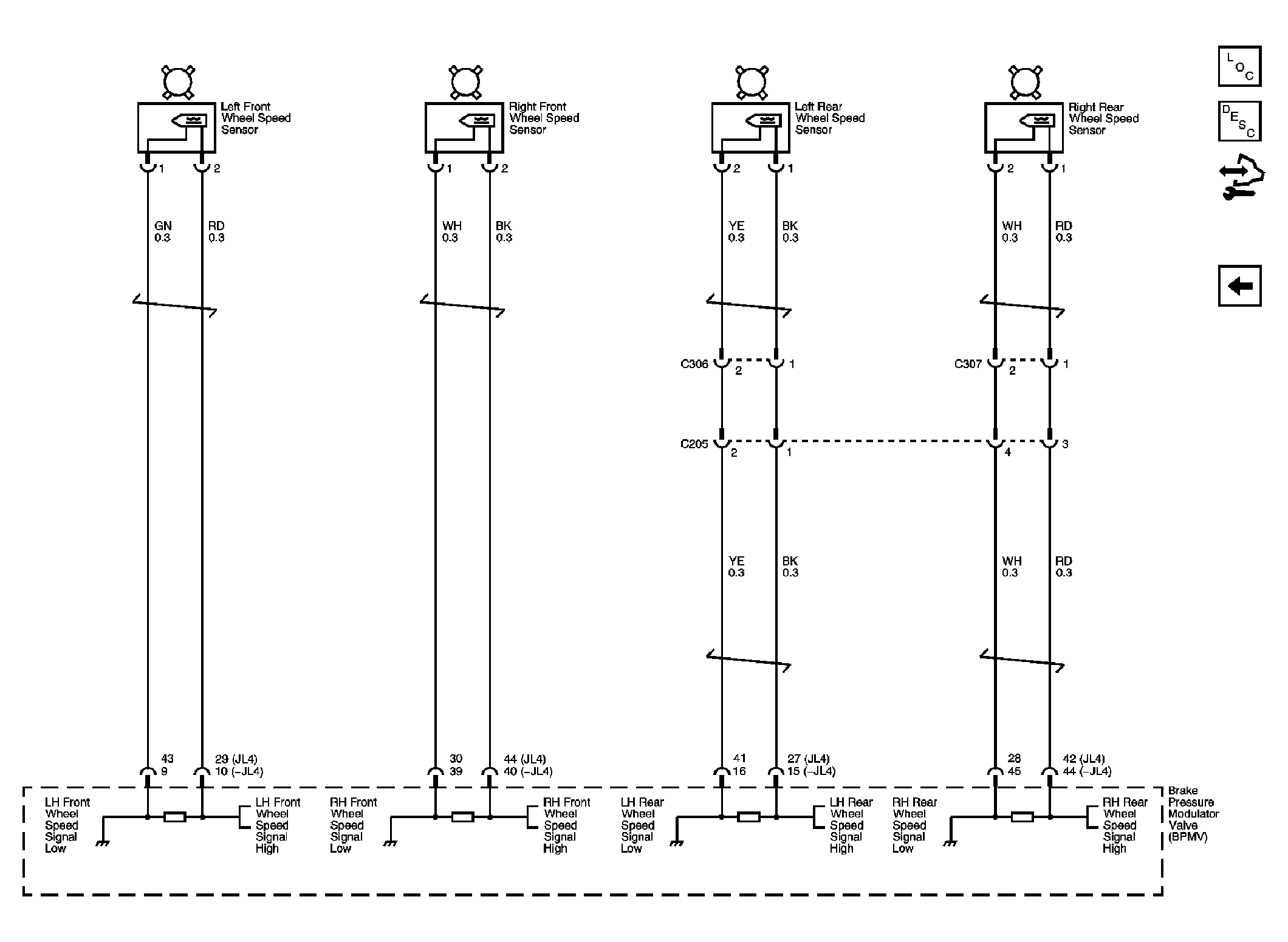

Fig 7: Wheel Speed Sensors
GM1847824Courtesy of GENERAL MOTORS CORP.
