Installation Procedure

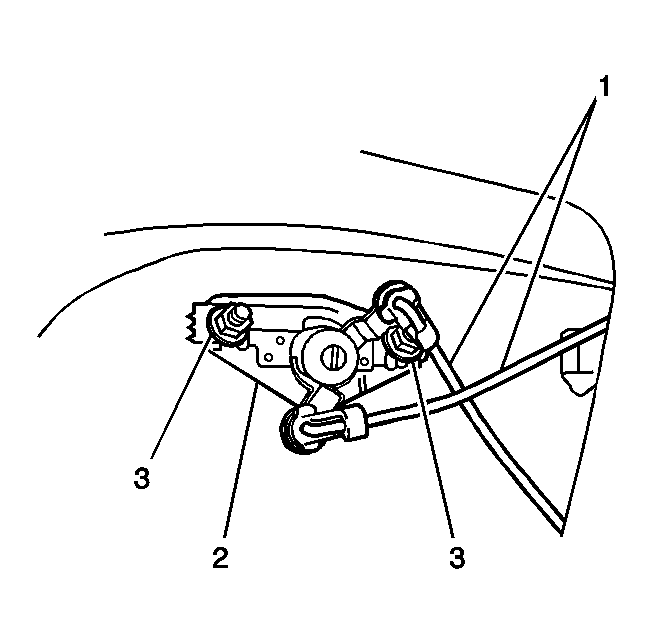

    Fig 1: Lock Cylinder Rod And Nuts
    GM824373Courtesy of GENERAL MOTORS CORP.
  1. Install the endgate lock cylinder (2) to the liftgate.
  2. Install the 2 nuts (3) to the lock cylinder (2).
  3. Connect the 2 rods (1) to the lock cylinder (2).
  4. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
  5. Close the liftgate.
