Luggage Compartment/Rear of Vehicle Component Views

Fig 1: View Of Upper Left Quarter Panel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver (U2K)
2	Rear Floor
3	Left Rear Wheel Panel

Fig 2: Locating Remote Control Door Lock Receiver (RCDLR) & Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR)
2	Remote Control Door Lock Receiver (RCDLR) Antenna

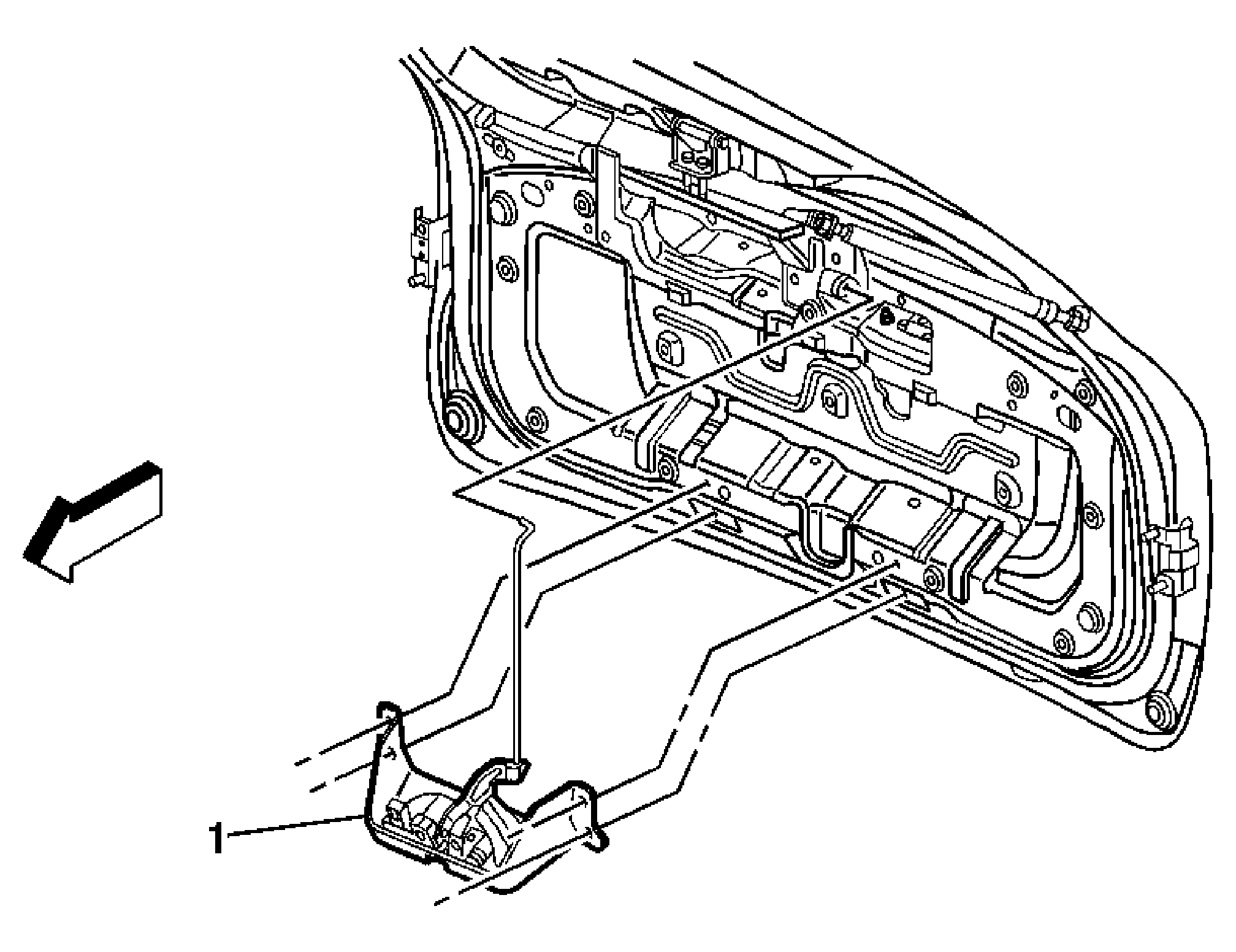

Fig 3: Identifying Liftgate Latch Location

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Liftgate Latch

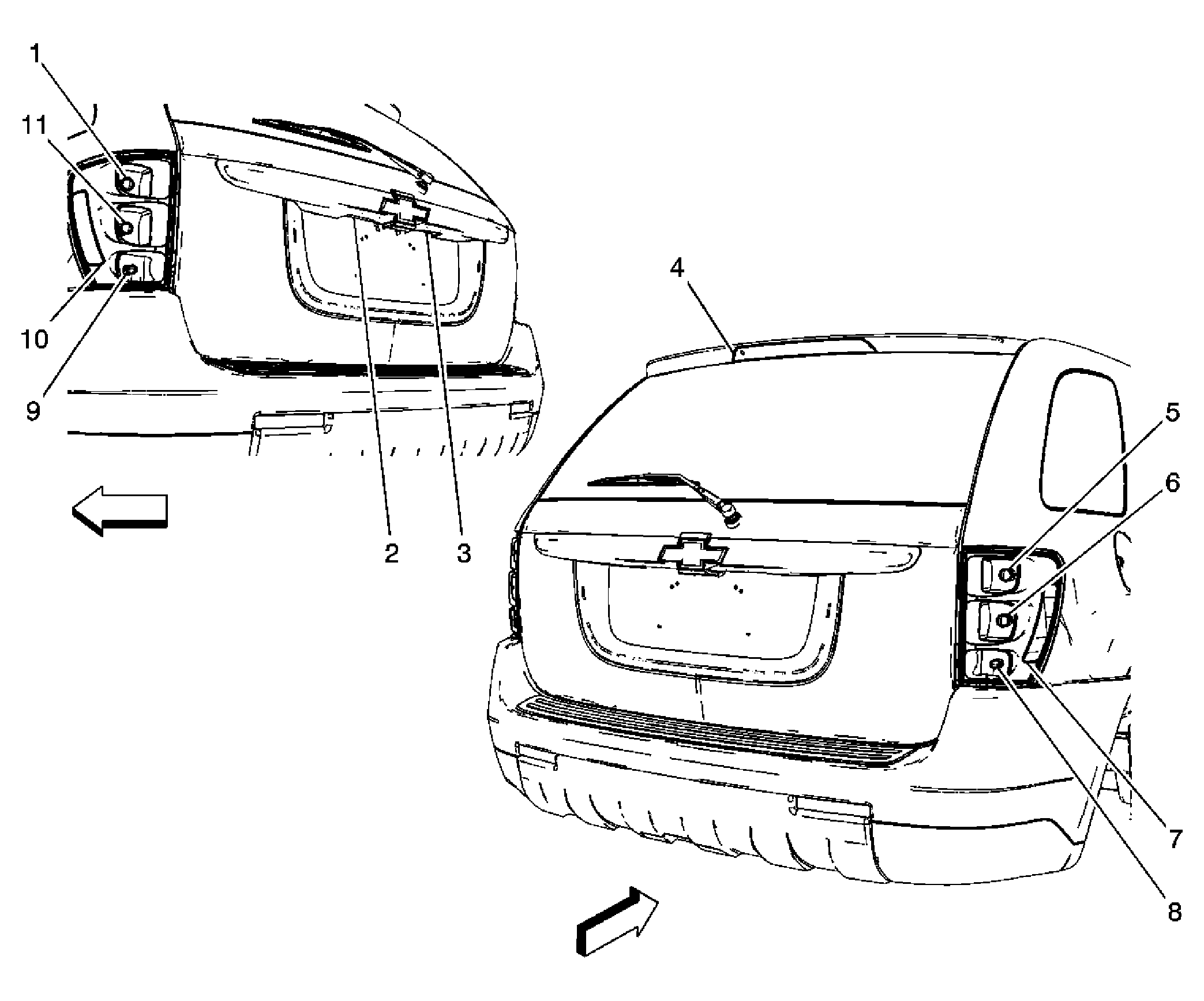

Fig 4: View Of Rear Exterior Lighting Components (Chevrolet)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Stop Lamp - Left Rear
2	License Lamp - Left
3	License Lamp - Right
4	Center High Mounted Stop Lamp (CHMSL)
5	Park/Stop Lamp - Right Rear
6	Park/Turn Signal Lamp - Right Rear
7	Marker Lamp - Right Rear
8	Backup Lamp - Right
9	Backup Lamp - Left
10	Marker Lamp - Left Rear
11	Park/Turn Signal Lamp - Left Rear

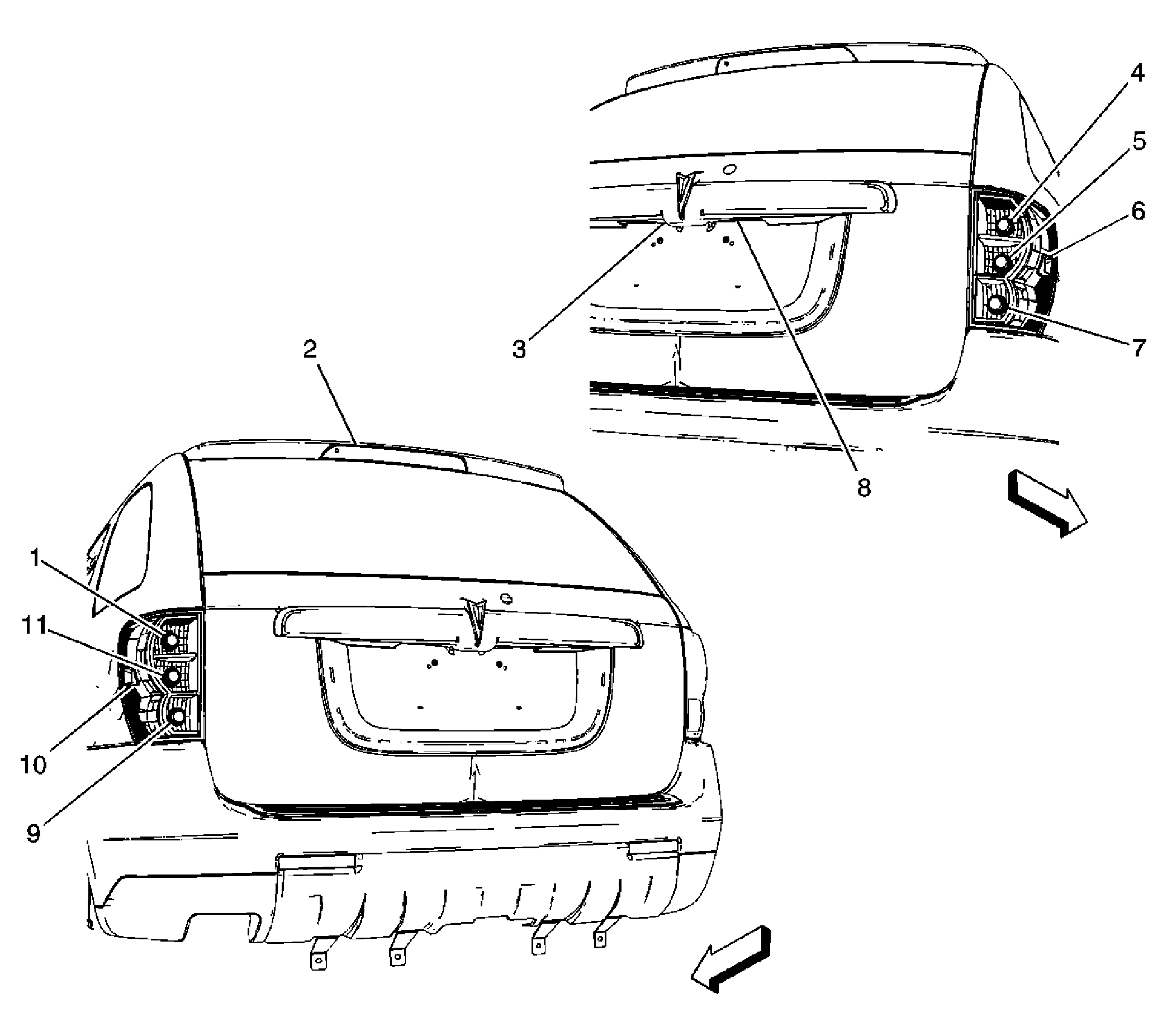

Fig 5: View Of Rear Exterior Lighting Components (Pontiac)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park/Stop Lamp - Left Rear
2	Center High Mounted Stop Lamp (CHMSL)
3	License Lamp - Left
4	Park/Stop Lamp - Right Rear
5	Park/Turn Signal Lamp - Right Rear
6	Marker Lamp - Right Rear
7	Backup Lamp - Right
8	License Lamp - Right
9	Backup Lamp - Left
10	Marker Lamp - Left Rear
11	Park/Turn Signal Lamp - Left Rear

Fig 6: View Of Rear Window Defogger

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Defogger Grid
2	Liftgate
