Fuse Block - Instrument Panel X3

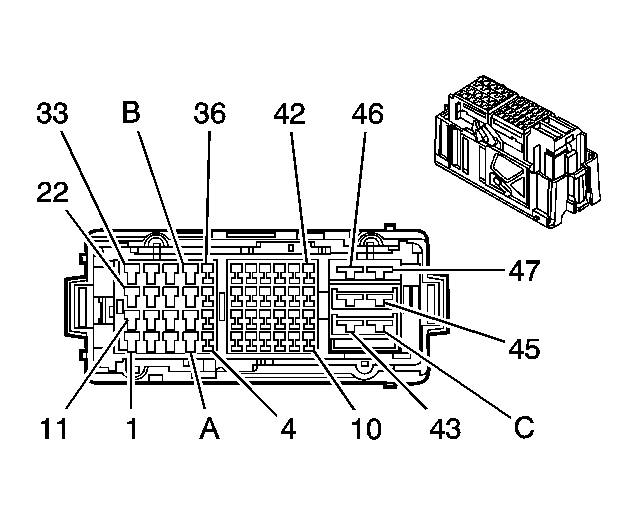

Fig 1: Fuse Block - Instrument Panel X3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1	1.0 TN	294	Door Lock Actuator Unlock Control
1	1.0 TN	294	Door Lock Actuator Unlock Control
2	1.0 TN	294	Door Lock Actuator Unlock Control
3	1.0 TN	694	Driver Door Lock Actuator Unlock Control
4	0.35 TN	707	RAP Relay Coil Supply Voltage
5	0.8 L-BU	1320	CHMSL Supply Voltage
6	0.5 L-BU	1320	CHMSL Supply Voltage
6	0.5 L-BU	1320	CHMSL Supply Voltage
7	-	-	Not Used
8	0.35 YE	356	Driver Door Lock Relay Unlock Control
9	0.35 YE	5704	Endgate Latch Relay Coil Control
10	-	-	Not Used
11	1.0 RD/WH	2140	Battery Positive Voltage
12	1.0 GY	295	Door Lock Actuator Lock Control
13	1.0 YE	643	Accessory Voltage
14	0.5 RD/WH	1340	Battery Positive Voltage (ASF)
14	0.5 RD/WH	1340	Battery Positive Voltage (-ASF)
15	0.5 PK	1139	Ignition Voltage
16	0.5 D-GN	5060	Low Speed GMLAN Serial Data (ASF)
	0.5 D-GN	5060	Low Speed GMLAN Serial Data (-ASF)
	0.35 D-GN	5060	Low Speed GMLAN Serial Data (U2K)
17	-	-	Not Used
18	0.35 L-GN	2270	Rear Window Washer Relay Control
19	0.35 GY	391	Rear Window Wiper Switch Signal
20	0.35 D-GN	5706	Endgate Latch Relay Supply Voltage
21	0.5 RD/WH	2340	Battery Positive Voltage
22	0.5 L-BU	6128	Rear Closure Unlatch Motor Unlatch Control
23	1.0 GY	295	Door Lock Actuator Lock Control
24	0.8 RD/WH	240	Battery Positive Voltage
25	-	-	Not Used
26	0.35 PK	1139	Ignition Voltage
27	0.35 TN	28	Horn Relay Control
28	0.35 L-BU	5986	Serial Data Communication Enable
29	0.5 L-GN	2270	Rear Window Washer Relay Control
30	0.8 RD/WH	440	Battery Positive Voltage
31	0.5 RD/WH	2840	Battery Positive Voltage
32	0.35 RD/WH	1840	Battery Positive Voltage
33	-	-	Not Used
34	1.0 GY	295	Door Lock Actuator Lock Control
34	1.0 GY	295	Door Lock Actuator Lock Control
35	0.8 RD/WH	340	Battery Positive Voltage
36	0.5 PK	1139	Ignition Voltage
37	0.35 TN	28	Horn Relay Control
38	0.35 L-BU	5986	Serial Data Communication Enable
39	0.8 OG	1732	Courtesy Lamps Supply Voltage
40	0.8 RD/WH	1240	Battery Positive Voltage
41	0.35 L-BU	5921	Driver Door Unlock Relay Control
42	0.35 L-GN	1391	Driver Door Unlock Relay Control
43	2.0 RD/BK	742	Battery Positive Voltage
44	-	-	Not Used
45	5.0 RD/BK	242	Battery Positive Voltage
46	2.0 PU	293	Rear Defog Element Supply Voltage
47	2.0 RD/WH	2040	Battery Positive Voltage
A	1.0 RD/WH	640	Battery Positive Voltage
B	0.35 RD/WH	840	Battery Positive Voltage (ASF, KA1)
	0.35 RD/WH	840	Battery Positive Voltage (-ATY, KA1)
	0.35 RD/WH	840	Battery Positive Voltage (-ASF-ATY-KA1)
	0.35 RD/WH	840	Battery Positive Voltage (KA1-ASF-ATY)
C	2.0 YE	143	Accessory Voltage

Connector Part Information

OEM: 6098-5229
Service: 88988710
Description: 50-Way F LIF Series (BK)

Terminal Part Information

Pins: 1, 34
Terminal/Tray: 15304713/19
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: 43-44, 46-47, C
Terminal/Tray: 7116-4121-02/10
Core/Insulation Crimp: C/B
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 45
Terminal/Tray: 7116-4122-02/10
Core/Insulation Crimp: D/G
Release Tool/Test Probe: 12094430/J-35616-42 (RD)

Pins: 2-3, 11-14, 22-24, 35, A, B
Terminal/Tray: 15304711/8
Core/Insulation Crimp: Pins 2-3, 11-13, 23, 24, 35, A - 2/A
Core/Insulation Crimp: Pins 14, 22, B, B - E/A
Release Tool/Test Probe: 15315247/J-35616-4A (PU)

Pins: 4-6, 8-9, 15-16, 18-21, 22-29-32, 36-42
Terminal/Tray: 12191812/19
Core/Insulation Crimp: Pins 4, 6, 8-9, 15, 18-21, 2-29, 31, 32, 36-38, 41, 42 - E/C
Core/Insulation Crimp: Pins 5, 16, 30, 39, 40 - C/A
Release Tool/Test Probe: 15315247/J-35616-2A (GY)
