Turn Signal - Right Front (Chevrolet)

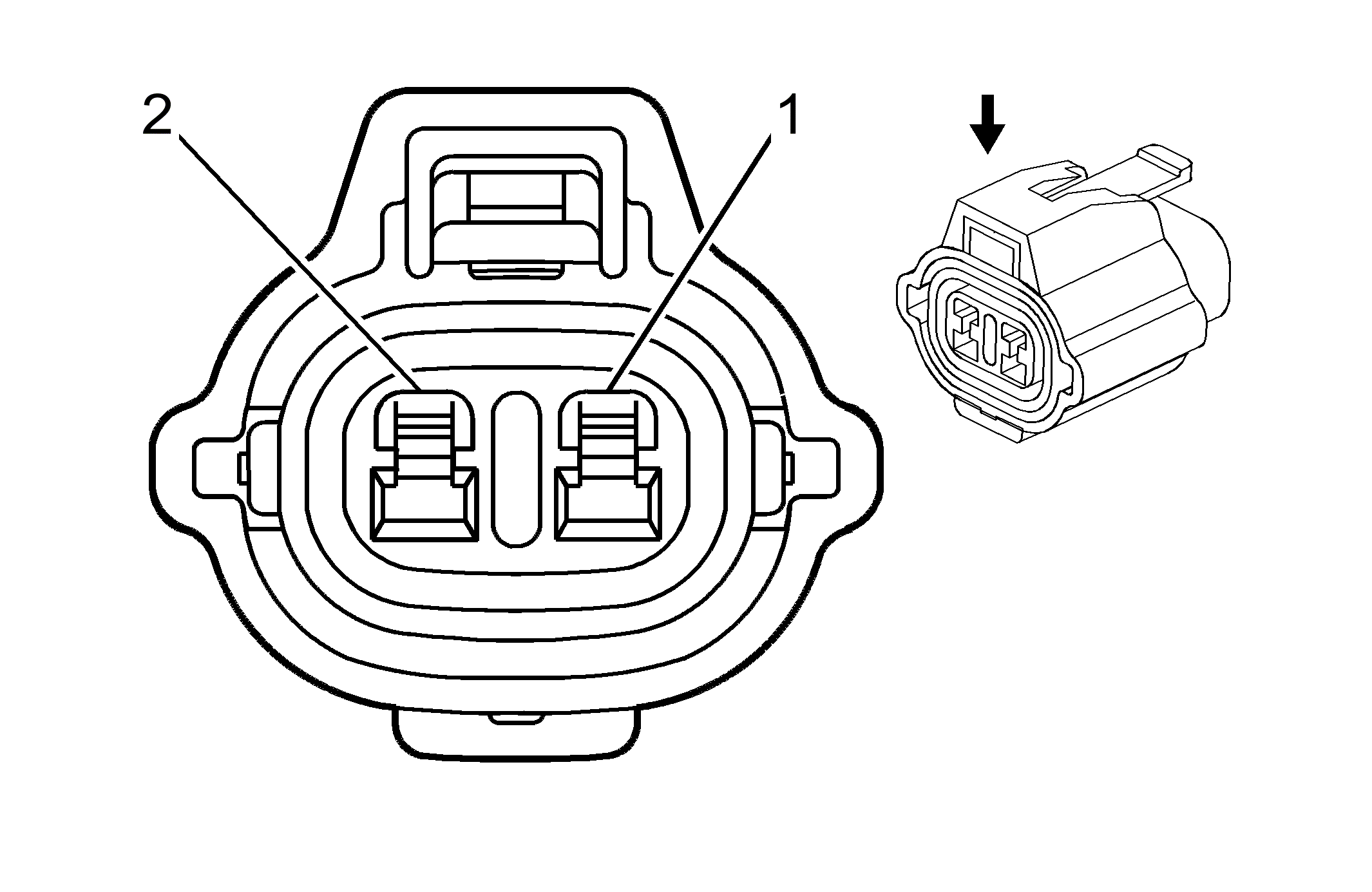

Fig 1: Turn Signal - Right Front (Chevrolet) Connector End View
GM1413080Courtesy of GENERAL MOTORS CORP.
Turn Signal - Right Front (Chevrolet)

Pin Wire Circuit Function
1 0.35 D-BU/WH 1315 Right Front Turn Signal Lamp Supply Voltage/Right Turn Signal Indicator Lamp Supply Voltage
2 0.35 BK 1250 Ground
Connector Part Information
  • OEM: 7223-1324-40
  • Service: 88988460
  • Description: 2-Way F 090 Sealed (GY)
Terminal Part Information
  • Terminal/Tray: 7116-1420/11
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 15315247/J-35616-18 (BK)
