Marker Lamp - Right Rear

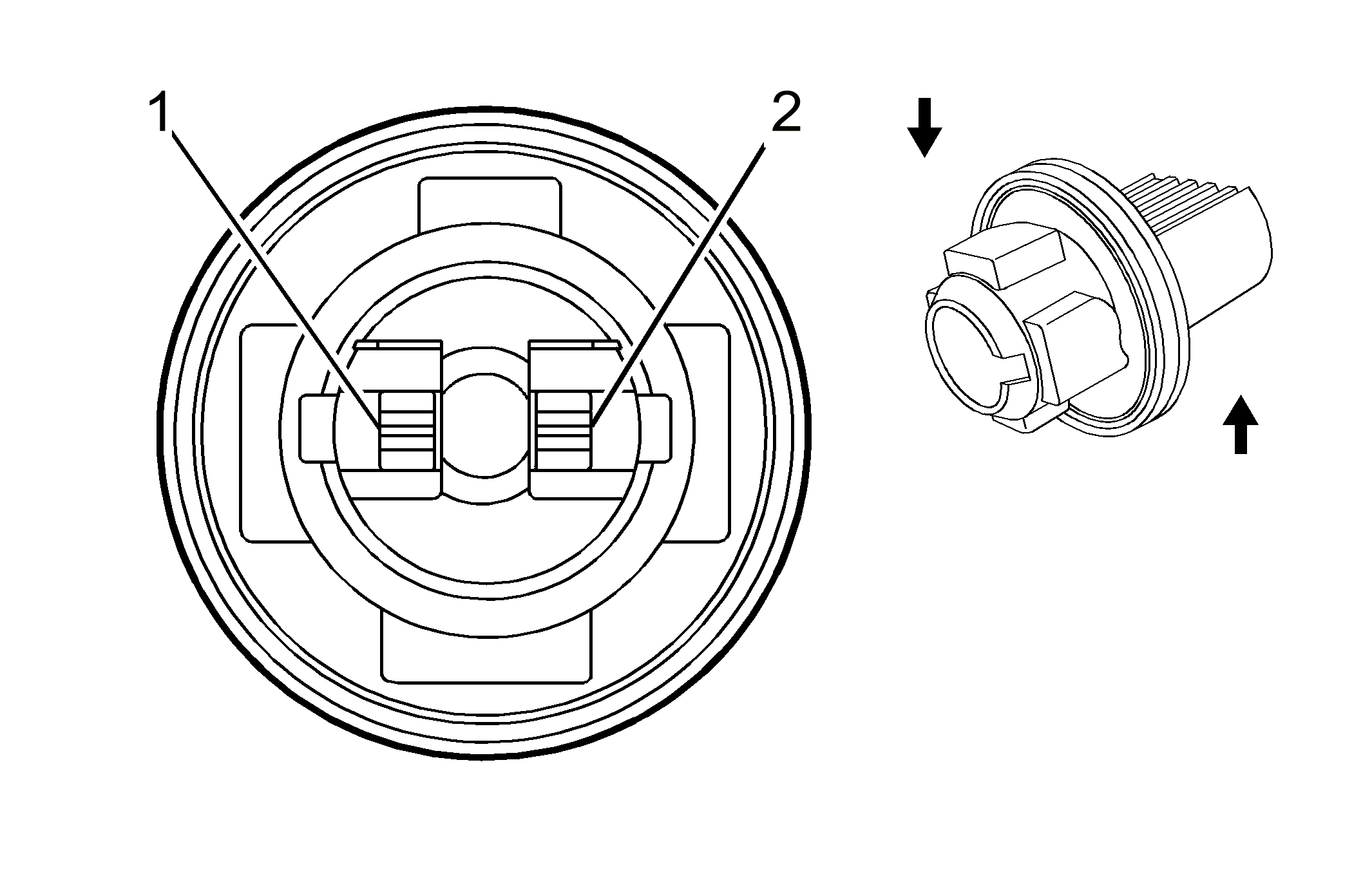

Fig 1: Marker Lamp - Right Rear Connector End View
GM1860067Courtesy of GENERAL MOTORS CORP.
Marker Lamp - Right Rear

Pin Wire Circuit Function
1 0.35 RD/D-BU 309 Right Park Lamp Supply Voltage
2 0.5 BK 850 Ground
Connector Part Information
  • OEM: 10351681
  • Service: See Catalog
  • Description: 2-Way F Lamp Socket Sealed (GY)

Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
