A/C Compressor Clutch (LNJ)

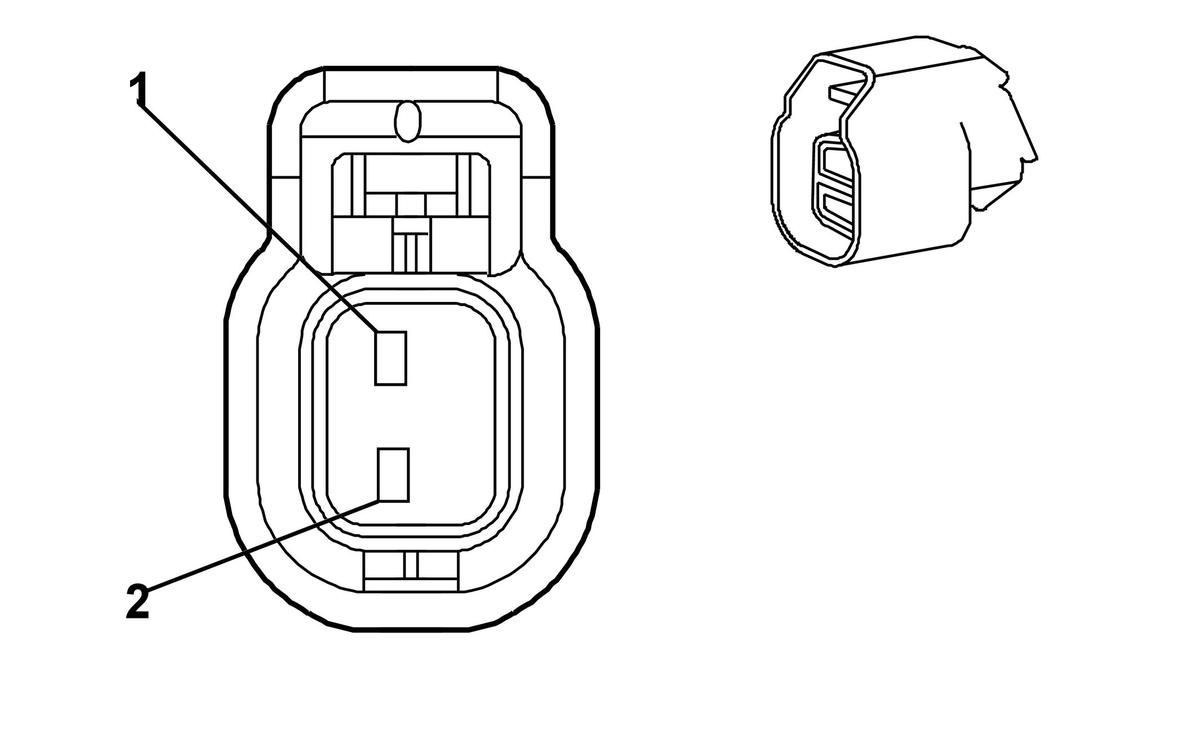

Fig 1: A/C Compressor Clutch (LNJ) Connector End View
GM1413014Courtesy of GENERAL MOTORS CORP.
A/C Compressor Clutch (LNJ)

Pin Wire Circuit Function
1 0.5 D-GN 59 A/C Compressor Clutch Supply Voltage
2 0.8 BK 450 Ground
Connector Part Information
  • OEM: 7283-5448
  • Service: 89046838
  • Description: 2-Way F Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 7116-4103-08/9
  • Core/Insulation Crimp: E/1
  • Release Tool/Test Probe: 12094430/J-35616-2A (GY)
